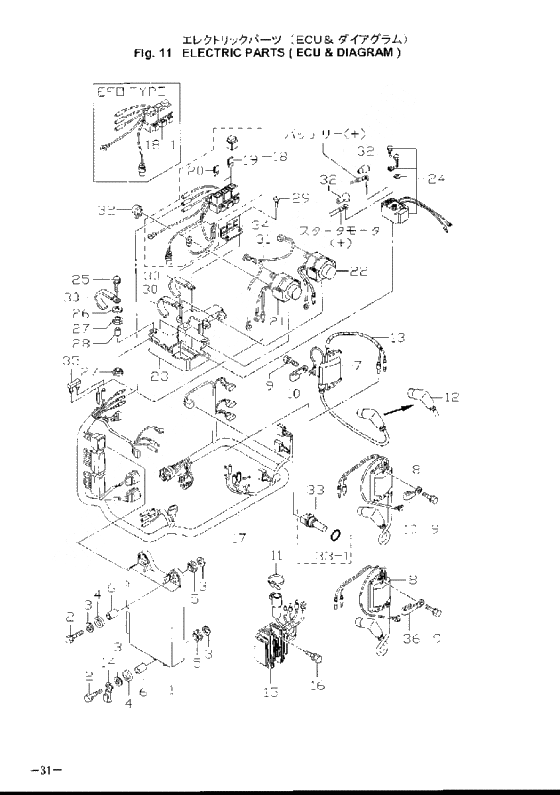

Electric parts (ecu & diagram) для Tohatsu MD50A - 2003 года выпуска
-
№АртикулНазвание
-
13T5-06401-1 Ecu 50Ecu 50
-
2910103-6630 BoltBolt
-
3346-67115-0 WasherWasher
-
4346-67113-0 Mount RubberMount Rubber
-
53B7-06920-0 Mount Rubber, 8.5-14-2.5Mount Rubber, 8.5-14-2.5
-
63T5-67114-0 Spacer, 6.2-9-16.6Spacer, 6.2-9-16.6
-
73T5-06171-1 Ignition coil #1Ignition coil #1
-
83T5-06173-1 Ignition coil #2, #3Ignition coil #2, #3
-
9910103-6625 BoltBolt
-
10309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
113T5-84398-0 Band Lead Wire 104Band Lead Wire 104
-
123T5-06921-0 Plug cap(with resistance)Plug cap(with resistance)
-
133T5-06173-1 Ignition coil #2, #3Ignition coil #2, #3
-
153T5-76060-0 Rectifier completeRectifier complete
-
173T5-76110-0 Cord ass'yCord ass'y
-
183T9-76062-0 Fuse holder ass'y
for PTT Type in FuseFuse holder ass'y
for PTT Type in Fuse -
18-13T5-76066-0 Fuse Holder B Ass'y
for EFO Type in FuseFuse Holder B Ass'y
for EFO Type in Fuse -
193T5-76246-0 ПредохранительПредохранитель
-
203T5-76249-0 ПредохранительПредохранитель
-
213C8-72580-0 Solenoid switch a, ptt (up)
Up, for PTT TypeSolenoid switch a, ptt (up)
Up, for PTT Type -
223C8-72581-0 Solenoid switch b, ptt (dn)
DN, for PTT TypeSolenoid switch b, ptt (dn)
DN, for PTT Type -
233T5-72585-0 Bracket, Solenoid SwitchBracket, Solenoid Switch
-
243H8-76040-0 Starter SolenoidStarter Solenoid
-
263C8-66308-0 New part
or 3R0-66308-0New part
or 3R0-66308-0 -
273F3-06920-0 Mount Rubber 9-12-2Mount Rubber 9-12-2
-
283T5-76079-0 Spacer, 6.2-9-10.7Spacer, 6.2-9-10.7
-
293T5-06437-0 Tapping Screw, 6-16Tapping Screw, 6-16
-
303T4-06972-0 Плата струбциныПлата струбцины
-
313T5-76142-0 Ground cord
for PTT TypeGround cord
for PTT Type -
323A3-76145-0 Cap Starter Terminal
for PTT TypeCap Starter Terminal
for PTT Type -
333T4-72514-0 Water Temperature SensorWater Temperature Sensor
-
33-13T5-72509-0 O-RingO-Ring
-
343T9-76064-0 Stay, Fuse HolderStay, Fuse Holder
-
35353-76037-0 Plug Cable TerminalPlug Cable Terminal
