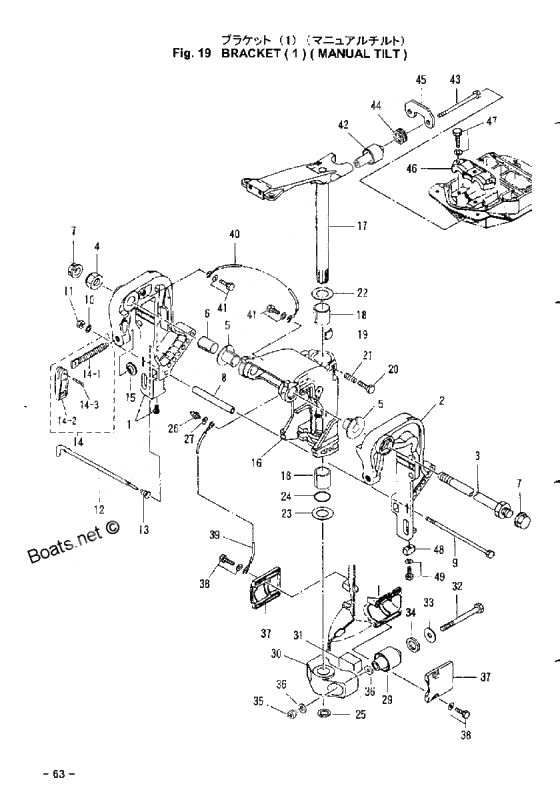

Bracket (1)(manual tilt) для Tohatsu MD50A - 2003 года выпуска`
-
№АртикулНазвание
-
13C8S62112-0 Stern bracket rightStern bracket right
-
23C8S62113-0 Stern bracket lStern bracket l
-
3346-62191-0 Bracket Bolt Ass'yBracket Bolt Ass'y
-
4346-62124-0 Bracket Nut(Nylon)Bracket Nut(Nylon)
-
5349-62126-0 Bushing, Bracket BoltBushing, Bracket Bolt
-
63C8-62132-0 BushingBushing
-
7346-62127-0 Cap,Bracket Bolt
for F TypeCap,Bracket Bolt
for F Type -
83C8-62117-0 Distance PieceDistance Piece
-
93C8-62120-0 Bolt 8-170Bolt 8-170
-
10940103-0800 Washer -> 940113-0800Washer -> 940113-0800
-
11930103-0800 NutNut
-
123C8-62121-0 Thrust RodThrust Rod
-
13345-62122-1 Spring, thrust rodSpring, thrust rod
-
143C8S62100-1 Clamp Screw Ass'yClamp Screw Ass'y
-
14-13E3-62103-0 Винт струбциныВинт струбцины
-
14-33C8-62104-0 Rivet 3-22Rivet 3-22
-
15332-62101-0 Pad clamp screwPad clamp screw
-
163C8S62310-2 Поворотный кронштейнПоворотный кронштейн
-
173C8S62010-2 Steering shaft ass'ySteering shaft ass'y
-
18345-62417-0 Bushing Steering ShaftBushing Steering Shaft
-
19345-62441-0 Friction PlateFriction Plate
-
20910103-0830 New partNew part
-
21346-62421-0 Spring, friction plateSpring, friction plate
-
223A0-62423-1 Upper, thrust plateUpper, thrust plate
-
23345-62424-0 Lower, thrust plateLower, thrust plate
-
24345-62415-0 O-RingO-Ring
-
25945103-2500 ClipClip
-
26344-67177-0 МасленкаМасленка
-
27940103-0600 WasherWasher
-
293C8-61302-0 Lower Mount RubberLower Mount Rubber
-
303C8S61411-2 Mount bracketMount bracket
-
313C8-61336-0 Damper RubberDamper Rubber
-
323C8-61321-0 Bolt Lower Mount RubberBolt Lower Mount Rubber
-
33353-61334-0 WasherWasher
-
343C7-61338-0 Damper RubberDamper Rubber
-
35930403-1200 Nylon NutNylon Nut
-
373C8S61342-0 Cap lower mount rubberCap lower mount rubber
-
393C8-62396-0 Ground WireGround Wire
-
403C8-62158-0 Ground WireGround Wire
-
423E3-61301-1 Upper Mount RobberUpper Mount Robber
-
43353-61307-0 Bolt mount rubber upperBolt mount rubber upper
-
443E3-61333-0 Upper Damper RubberUpper Damper Rubber
-
453E3-61335-0 Upper Lock PlateUpper Lock Plate
-
463C8S61341-0 Cap upper mount rubberCap upper mount rubber
-
47910103-6835 BoltBolt
-
483B7-60218-1 AnodeAnode
