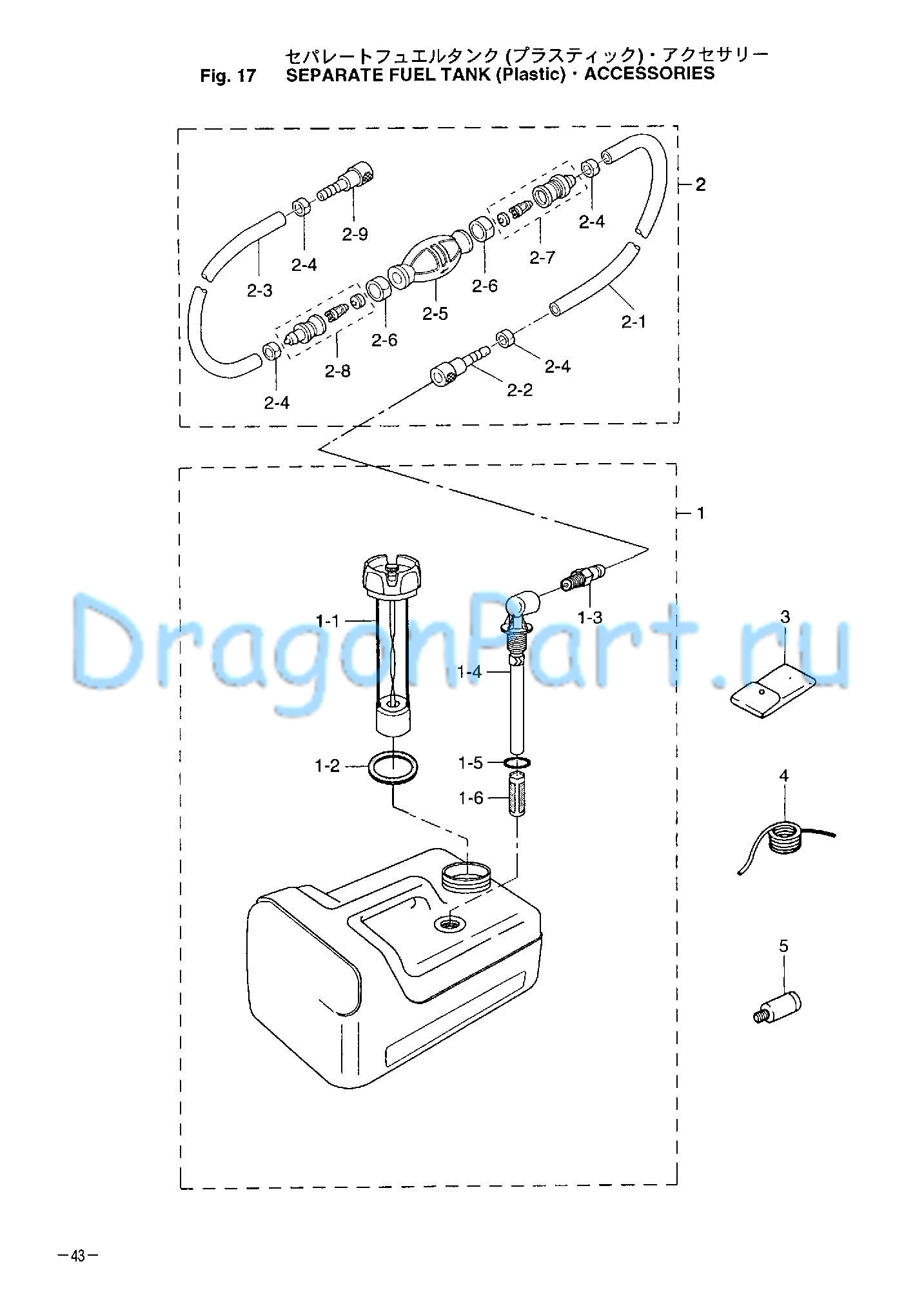

SEPARATE FUEL TANK (PLASTIC) ACCESSORIES для Tohatsu M9.8B - 2003 года выпуска`
-
№АртикулНазвание
-
1382-70167-0 Fuel Tank (12L, Plastic)
UNIQUEFuel Tank (12L, Plastic)
UNIQUE -
1-1382-70050-0 * Fuel Gauge Vented Cap* Fuel Gauge Vented Cap
-
1-23C7-70021-0 * Cap Gasket* Cap Gasket
-
1-33E0-70270-0 * Male Quick Connector* Male Quick Connector
-
1-4382-70155-0 * Elbow Tubing and Clarno Ass'y* Elbow Tubing and Clarno Ass'y
-
1-53C7-70199-0 * 0-Ring* 0-Ring
-
1-63C7-70113-0 * Filter* Filter
-
2387-70200-3 Primer Bulb Ass'yPrimer Bulb Ass'y
-
2-198A8-7-1600 * Fuel Pipe* Fuel Pipe
-
2-2382-70281-0 * Fuel Co0 nnector (Tank side, Female)* Fuel Co0 nnector (Tank side, Female)
-
2-398A8-7-0700 * Fuel Pipe* Fuel Pipe
-
2-4332-70201-0 * Clamp* Clamp
-
2-53C7-70211-0 * Primer Bulb* Primer Bulb
-
2-63C7-70217-0 * Clamp* Clamp
-
2-73C7-70220-1 * Joint A" Ass'v I N"* Joint A" Ass'v I N"
-
2-83C7-70224-1 * Joint A" Ass'v OUT"* Joint A" Ass'v OUT"
-
2-9382-70250-1 * Fuel Connector (Engine side, Female)* Fuel Connector (Engine side, Female)
-
3369-72100-0 ToolTool
-
4312-72201-0 Rope
d> 4-1000Rope
d> 4-1000 -
5336-60007-0 Flushing Attachment
OptionFlushing Attachment
Option
