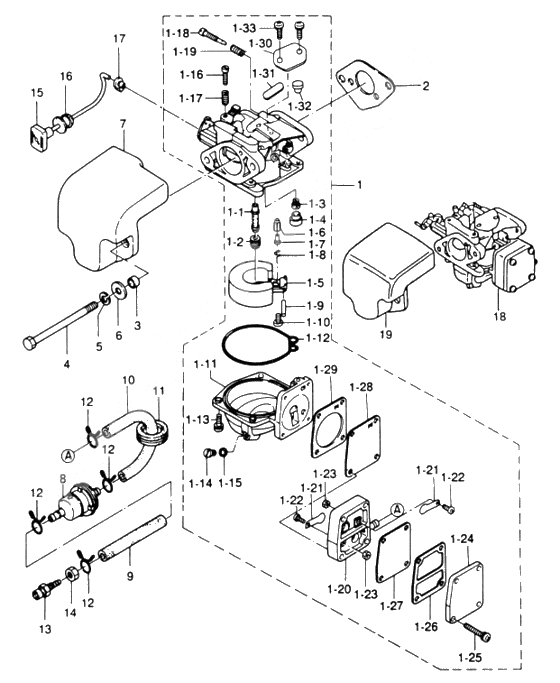

Carburetor для Tohatsu M9.8B - 2003 года выпуска
-
№АртикулНазвание
-
13K9-03200-0 Carburetor ass'y (54EA)
54EA / FOR MF/EF TYPECarburetor ass'y (54EA)
54EA / FOR MF/EF TYPE -
1-13K9-03252-0 Main NozzleMain Nozzle
-
1-103F3-03234-0 Screw arm pinScrew arm pin
-
1-113B2-03221-0 Float ChamberFloat Chamber
-
1-12369-03222-0 Уплотнительное кольцоУплотнительное кольцо
-
1-13922503-6414 Stud BoltStud Bolt
-
1-14369-03292-0 Drain ScrewDrain Screw
-
1-15369-03293-0 Gasket drain screwGasket drain screw
-
1-16346-03265-0 Stop ScrewStop Screw
-
1-17346-03267-0 Spring aSpring a
-
1-18346-03266-0 Adjust ScrewAdjust Screw
-
1-19356-03268-0 Spring BSpring B
-
1-23K9-03251-0 Жиклер главныйЖиклер главный
-
1-20369-03304-0 Корпус насосаКорпус насоса
-
1-21369-03305-0 Клапана липестковыйКлапана липестковый
-
1-22921522-0306 Stud BoltStud Bolt
-
1-23930121-0300 NutNut
-
1-24369-03301-0 Pump coverPump cover
-
1-25922553-6423 Stud BoltStud Bolt
-
1-26369-03302-0 Прокладка насосаПрокладка насоса
-
1-27369-03303-0 Диафрагма А""Диафрагма А""
-
1-28369-03306-0 Прокладка крышкиПрокладка крышки
-
1-29369-03307-0 Диафрагма В""Диафрагма В""
-
1-33K9-03254-0 Slow jet(#50)Slow jet(#50)
-
1-30369-03181-0 Carburetor coverCarburetor cover
-
1-31369-03182-0 Gasket, plate cover aGasket, plate cover a
-
1-32369-03183-0 Gasket, plate cover bGasket, plate cover b
-
1-33369-03186-0 Stud BoltStud Bolt
-
1-4346-03256-0 Rubber capRubber cap
-
1-5369-03231-0 FloatFloat
-
1-63B2-03240-0 Float ValveFloat Valve
-
3R3-03239-0 Float ValveFloat Valve
-
1-7334-03242-0 Игольчатый клапанИгольчатый клапан
-
1-8344-03244-0 ClipClip
-
1-9346-03232-0 Arm Pin FloatArm Pin Float
-
2369-02011-0 Gasket carburetorGasket carburetor
-
33B2-02416-0 Spacer air silencerSpacer air silencer
-
4916181-0685 BoltBolt
-
5941303-0600 New partNew part
-
63R0-66308-0 Washer
OR 3C8-66308-0Washer
OR 3C8-66308-0 -
73B2-02411-0 New partNew part
-
8369-02230-0 Фильтр топливныйФильтр топливный
-
998AB-5-1000 New partNew part
-
103B2-02212-0 Fuel pipe bFuel pipe b
-
11345-76023-0 Grommet 22-2.5Grommet 22-2.5
-
12338-02215-0 ClipClip
-
133B2-70260-1 New partNew part
-
14332-70261-0 Nut Fuel Connector BNut Fuel Connector B
-
153B2-67151-0 Choke RodChoke Rod
-
16369-67104-0 Grommet choke rodGrommet choke rod
-
17346-67196-1 Rod Snap 3-bRod Snap 3-b
-
183K9-03202-0 Carburetor ass'y (ep)
FOR EP TYPECarburetor ass'y (ep)
FOR EP TYPE -
193B2-02412-0 Air silencer (ep)
FOR EP TYPEAir silencer (ep)
FOR EP TYPE -
13K9-03200-0 Carburetor
54EA for MF/EF TypeCarburetor
54EA for MF/EF Type -
1-13K9-03252-0 * Main Nozzle* Main Nozzle
-
1-23K9-03251-0 * Main Jet # 95* Main Jet # 95
-
1-33K9-03254-0 * Slow Jet # 50* Slow Jet # 50
-
1-4346-03256-0 * Rubber Cap* Rubber Cap
-
1-5369-03231-0 * Float* Float
-
1-6382-03240-0 * Float Valve* Float Valve
-
1-7334-03242-0 * Valve Pin* Valve Pin
-
1-8344-03244-0 * Clip* Clip
-
1-9346-03232-0 * Arm Pin, Float* Arm Pin, Float
-
1-103F3-03234-0 * Screw* Screw
-
1-11382-03221-0 * Float Cham ber* Float Cham ber
-
1-12369-03222-0 * 0-Ring, Float Cham ber* 0-Ring, Float Cham ber
-
1-13922503-6414 * Screw* Screw
-
1-14369-03292-0 * Drain Screw* Drain Screw
-
1-15369-03293-1 * Gasket, Drain Screw* Gasket, Drain Screw
-
1-16346-03265-0 * Stop Screw* Stop Screw
-
1-17346-03267-0 * Spring A"* Spring A"
-
1-18346-03266-0 * Adiust Screw* Adiust Screw
-
1-19356-03268-0 * spring 8"* spring 8"
-
1-20369-03304-0 * Pum p 8odv* Pum p 8odv
-
1-21369-03305-0 * Check Valve* Check Valve
-
1-22921522-0306 * Screw* Screw
-
1-23930021-0300 * Nut* Nut
-
1-24369-03301-0 * Pump Cover* Pump Cover
-
1-25922553-6423 * Screw* Screw
-
1-26369-03302-0 * Gasket. Pump Cover* Gasket. Pump Cover
-
1-27369-03303-0 * Diaphragm A"* Diaphragm A"
-
1-28369-03306-0 * Diaphragm B"* Diaphragm B"
-
1-29369-03307-0 * Gasket, Pum p Body* Gasket, Pum p Body
-
1-30369-03181-0 * Carburetor Cover* Carburetor Cover
-
1-31369-03182-0 * Gasket A", Carburetor Cover"* Gasket A", Carburetor Cover"
-
1-32369-03183-0 * Gasket B", Carburetor Cover"* Gasket B", Carburetor Cover"
-
1-33369-03186-0 * Screw* Screw
-
2369-02011-0 Gasket, CarburetorGasket, Carburetor
-
33B2-02416-0 Spacer, Air SilencerSpacer, Air Silencer
-
4916181-0685 BoltBolt
-
5941303-0600 Spring WasherSpring Washer
-
63R0-66308-0 Washer, 6-16-1.5
or 3C8-66308-0Washer, 6-16-1.5
or 3C8-66308-0 -
73B2-02411-0 Air SilencerAir Silencer
-
8369-02230-0 Fuel FilterFuel Filter
-
998AB-5-0075 Fuel Pipe A"Fuel Pipe A"
-
103B2-02212-0 Fuel Pipe B"Fuel Pipe B"
-
11345-76023-0 Grom met, 22-2.5Grom met, 22-2.5
-
12338-02215-0 Clio,Clio,
-
133B2-70260-1 Fuel Connector (Engi ne, Male)Fuel Connector (Engi ne, Male)
-
14332-70261-0 Nut, 1O-P1 .25Nut, 1O-P1 .25
-
153B2-67151-0 Choke RodChoke Rod
-
16369-67104-0 Grommet, Choke RodGrommet, Choke Rod
-
17346-67196-1 Rod Snao,Rod Snao,
-
183K9-03202-0 Carburetor (EP)
for EP TvoeCarburetor (EP)
for EP Tvoe -
193B2-02412-0 Air Silencer (EP)
for EP TypeAir Silencer (EP)
for EP Type
