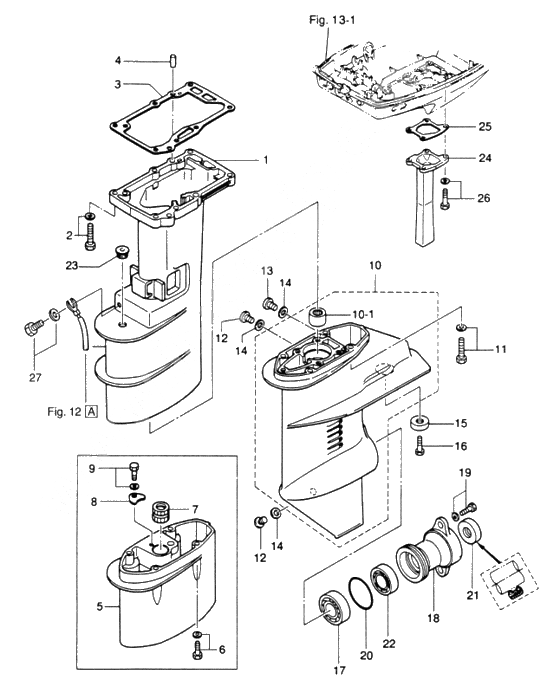

Drive shaft housing - gear case для Tohatsu M8B - 2003 года выпуска
-
№АртикулНазвание
-
13B2S61020-1 Drive shaft housing s
FOR TRANSOM SDrive shaft housing s
FOR TRANSOM S -
13B2S61030-1 Drive shaft housing l
FOR TRANSOM L ULDrive shaft housing l
FOR TRANSOM L UL -
2910113-5635 BoltBolt
-
33B2-61012-0 Gasket,Drive Shaft HousingGasket,Drive Shaft Housing
-
43B2-01111-0 СтопорСтопор
-
53B2S61110-0 Extension housing ul
FOR TRANSOM ULExtension housing ul
FOR TRANSOM UL -
3B2S61110-2 Extension housing ulExtension housing ul
-
6910113-5635 Bolt
FOR TRANSOM ULBolt
FOR TRANSOM UL -
73B2-60003-0 Bushing Drive Shaft Housing
FOR TRANSOM ULBushing Drive Shaft Housing
FOR TRANSOM UL -
8353-66024-0 Stopper
FOR TRANSOM ULStopper
FOR TRANSOM UL -
9910103-6612 BoltBolt
-
103B2S60000-0 Gear case assyGear case assy
-
3AAS60000-0 Gear case assyGear case assy
-
10-13B2-60211-0 Needle bearing 15-21-16Needle bearing 15-21-16
-
11910113-5635 BoltBolt
-
12332-60005-2 Oil Plug Water PlugOil Plug Water Plug
-
13332-60005-2 Oil Plug Water PlugOil Plug Water Plug
-
14332-60006-0 Gasket (8.1x15.1)Gasket (8.1x15.1)
-
15338-60218-2 New partNew part
-
16910103-0616 Bolt
OR 910113-0616Bolt
OR 910113-0616 -
179601-0-6204 Ball BearingBall Bearing
-
183B2S60101-0 Housing, Propeller ShaftHousing, Propeller Shaft
-
19910113-5620 BoltBolt
-
20345-65015-0 O-RingO-Ring
-
21369-60111-0 Oil SealOil Seal
-
229601-0-6004 Ball BearingBall Bearing
-
23369-66043-1 Grommet Cam RodGrommet Cam Rod
-
243B2-02311-0 Exhaust PipeExhaust Pipe
-
253B2-02312-0 Gasket exhaust pipeGasket exhaust pipe
-
26910103-5618 Bolt
OR 910113-5618Bolt
OR 910113-5618 -
27910103-5612 BoltBolt
