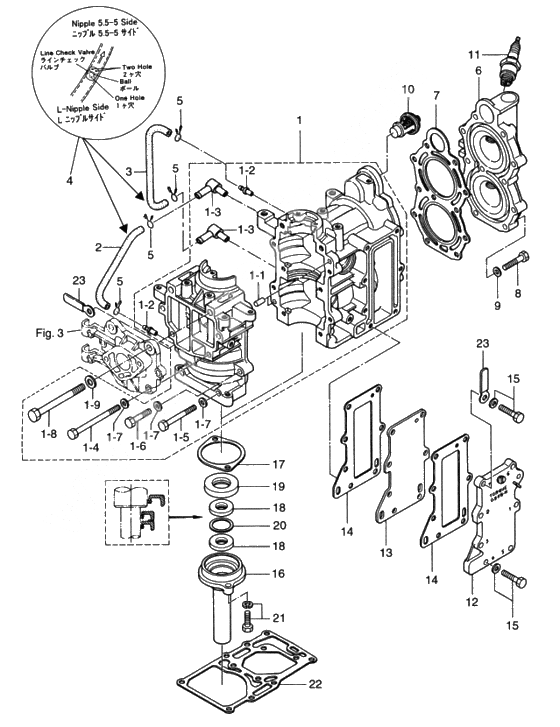

Cylinder - crank case assembly для Tohatsu M8B - 2003 года выпуска
-
№АртикулНазвание
-
13B2B01100-2 Cylinder & Crank Case Ass'y
8B # 77531~Cylinder & Crank Case Ass'y
8B # 77531~ -
1-1345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
1-2393-01131-0 Drain nipple
9.8B # 18260~ / 8B # 77531~Drain nipple
9.8B # 18260~ / 8B # 77531~ -
1-3393-01137-0 Drain nipple
9.8B # 18260~ / 8B # 77531~Drain nipple
9.8B # 18260~ / 8B # 77531~ -
1-33B2-01160-0 Check valve nipple assy
9.8B # 18259~ / 8B # 77530~Check valve nipple assy
9.8B # 18259~ / 8B # 77530~ -
1-4916129-0675 BoltBolt
-
1-5916129-0650 BoltBolt
-
1-6916129-0630 Bolt
OR 916119-0630Bolt
OR 916119-0630 -
916119-0630 BoltBolt
-
1-7940121-0600 WasherWasher
-
1-8910124-0880 BoltBolt
-
1-9940121-0800 WasherWasher
-
298AL-4-1000 Rubber pipe
9.8B # 18260~ / 8B # 77531~Rubber pipe
9.8B # 18260~ / 8B # 77531~ -
398AL-4-1000 Rubber pipe
9.8B # 18260~ / 8B # 77531~Rubber pipe
9.8B # 18260~ / 8B # 77531~ -
4393-01160-0 Check Valve
9.8B # 18260~ / 8B # 77531~Check Valve
9.8B # 18260~ / 8B # 77531~ -
53T5-01133-0 Clip
9.8B # 18260~ / 8B # 77531~Clip
9.8B # 18260~ / 8B # 77531~ -
63B2B01001-1 Головка цилиндров
8B # 40401~Головка цилиндров
8B # 40401~ -
73B2-01005-0 New partNew part
-
3B2-01005-1 New partNew part
-
8916119-0630 BoltBolt
-
9940121-0600 WasherWasher
-
10350-01030-1 ThermostatThermostat
-
119701-0-1005 9701-1-1005
NGK BP 7HS-109701-1-1005
NGK BP 7HS-10 -
123B2B02300-0 Exhaust cover outerExhaust cover outer
-
133B2B02302-0 Exhaust Cover InnerExhaust Cover Inner
-
3B2-02302-0 Exhaust Cover InnerExhaust Cover Inner
-
143B2-02305-0 Gasket exhaust coverGasket exhaust cover
-
15910114-5625 BoltBolt
-
163B2-01210-0 Head crank caseHead crank case
-
173B2-01214-0 Gasket Crank Case HeadGasket Crank Case Head
-
183B2-01215-0 Oil seal 12-28-5Oil seal 12-28-5
-
193B2-00122-0 Oil seal 20-40-7Oil seal 20-40-7
-
203B2-01217-0 Spacer 22-27.5-1Spacer 22-27.5-1
-
21910103-6620 BoltBolt
-
223B2-01303-0 New partNew part
-
3B2-01303-2 New partNew part
-
23309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
