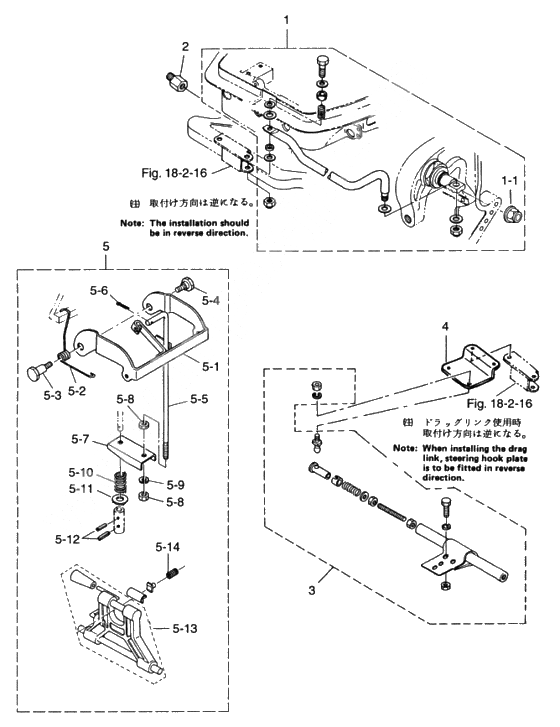

Optional parts (iv) - accessories (1) для Tohatsu M30A4 - 2003 года выпуска
-
№АртикулНазвание
-
1346-84905-1 Drag link c ass'yDrag link c ass'y
-
1-13F3-84908-0 Seal Ring Drag LinkSeal Ring Drag Link
-
2353-84904-0 Spacer Drag LinkSpacer Drag Link
-
33A3-84900-1 Tie-bar kit b - no longer avaialbleTie-bar kit b - no longer avaialble
-
3B7-84900-1 Tie-bar kit b - no longer avaialbleTie-bar kit b - no longer avaialble
-
4346-84901-0 Plate turn buklePlate turn bukle
-
5346-66901-0 Clutch lever,reverse lock kitClutch lever,reverse lock kit
-
5-1346-66902-0 Reverse Lock
TO BE PURCHASED AS AN ASSEMBLYReverse Lock
TO BE PURCHASED AS AN ASSEMBLY -
5-10346-66906-0 Spring link plate
TO BE PURCHASED AS AN ASSEMBLYSpring link plate
TO BE PURCHASED AS AN ASSEMBLY -
5-11346-66909-0 Spring holder
TO BE PURCHASED AS AN ASSEMBLYSpring holder
TO BE PURCHASED AS AN ASSEMBLY -
5-12951403-0312 Spring Washer
TO BE PURCHASED AS AN ASSEMBLYSpring Washer
TO BE PURCHASED AS AN ASSEMBLY -
5-13346S62431-0 Tilt Stopper Ass'y
TO BE PURCHASED AS AN ASSEMBLYTilt Stopper Ass'y
TO BE PURCHASED AS AN ASSEMBLY -
5-14346-62421-1 Spring Friction Plate
TO BE PURCHASED AS AN ASSEMBLYSpring Friction Plate
TO BE PURCHASED AS AN ASSEMBLY -
5-2346-66903-0 Spring reverse lock
TO BE PURCHASED AS AN ASSEMBLYSpring reverse lock
TO BE PURCHASED AS AN ASSEMBLY -
5-3346-66904-0 Shaft b reverse lock arm
TO BE PURCHASED AS AN ASSEMBLYShaft b reverse lock arm
TO BE PURCHASED AS AN ASSEMBLY -
5-4332-66307-0 Shaft Reverse Lock
TO BE PURCHASED AS AN ASSEMBLYShaft Reverse Lock
TO BE PURCHASED AS AN ASSEMBLY -
5-5346-66908-0 Link reverse lock
TO BE PURCHASED AS AN ASSEMBLYLink reverse lock
TO BE PURCHASED AS AN ASSEMBLY -
5-6951503-0212 Split Pin
TO BE PURCHASED AS AN ASSEMBLYSplit Pin
TO BE PURCHASED AS AN ASSEMBLY -
5-7346-66905-0 Plate reverse lock link
TO BE PURCHASED AS AN ASSEMBLYPlate reverse lock link
TO BE PURCHASED AS AN ASSEMBLY -
5-8930103-0500 Nut
TO BE PURCHASED AS AN ASSEMBLYNut
TO BE PURCHASED AS AN ASSEMBLY -
5-9941303-0500 Spring Washer
TO BE PURCHASED AS AN ASSEMBLYSpring Washer
TO BE PURCHASED AS AN ASSEMBLY
