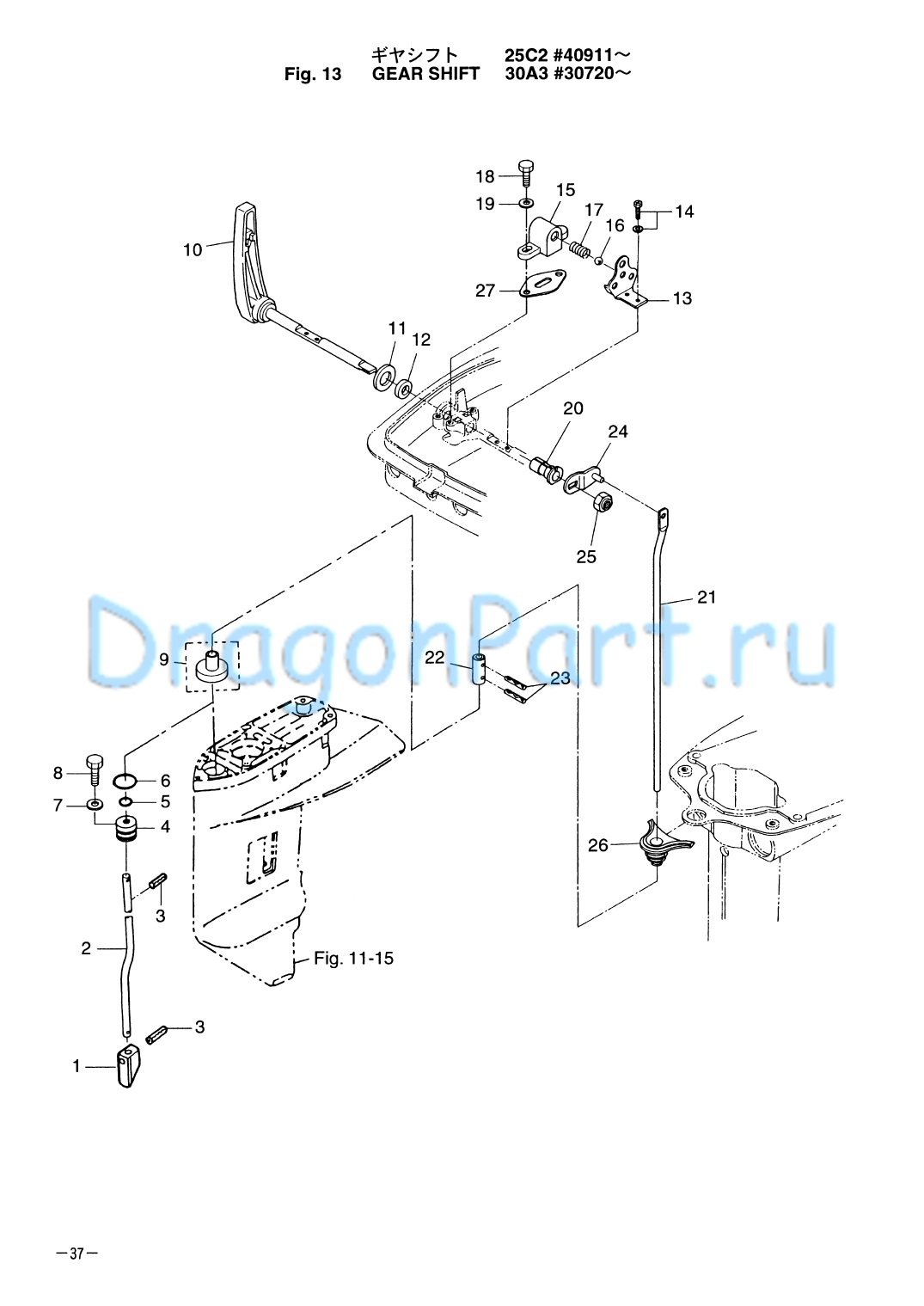

GEAR SHIFT 30A3 #30720~ для Tohatsu M30A4 - 2003 года выпуска`
-
№АртикулНазвание
-
1308-66011-0 Clutch CamClutch Cam
-
2346-66012-1 Cam Rod "S"
for Transom "S"Cam Rod "S"
for Transom "S" -
2346-66013-1 Cam Rod “L”
for Transom "L"Cam Rod “L”
for Transom "L" -
2346-66014-1 Cam Rod "UL”
for Transom "UL"Cam Rod "UL”
for Transom "UL" -
2346-66015-1 Cam Rod "LL”
for Transom "LL"Cam Rod "LL”
for Transom "LL" -
3951407-0312 Spring Pin, 3~12Spring Pin, 3~12
-
43C8-66031-1 Bushing, Cam RodBushing, Cam Rod
-
5332-66021-0 O-Ring, 2.4-5.8O-Ring, 2.4-5.8
-
63C8-66032-0 O-Ring, 3.5-21.7O-Ring, 3.5-21.7
-
73R0-66308-0 Washer, 6-16-1.5
or 3C8-66308-0Washer, 6-16-1.5
or 3C8-66308-0 -
8910103-6612 BoltBolt
-
9346-66037-0 Holder, Cam Rod
for Transom "UL"Holder, Cam Rod
for Transom "UL" -
10346S66110-0 Shift LeverShift Lever
-
11346-66138-0 Spacer, 18.2-26-3Spacer, 18.2-26-3
-
12345-66137-0 Oil Seal, 14-20-4.5Oil Seal, 14-20-4.5
-
13346-66121-0 Stopper Plate, shift LeverStopper Plate, shift Lever
-
14910903-6512 ScrewScrew
-
15345-66115-0 Holder, shift Lever StopperHolder, shift Lever Stopper
-
16965002-1605 Steel Ball, 5/16Steel Ball, 5/16
-
17332-66112-0 Spring, shift Lever StopperSpring, shift Lever Stopper
-
18910114-0616 BoltBolt
-
19940103-0600 Washer
or 940113-0600Washer
or 940113-0600 -
20346-67101-0 Bushing, 10-12.8-28.5Bushing, 10-12.8-28.5
-
21346-66211-1 Shift RodShift Rod
-
22346-66241-1 Joint, Shift RodJoint, Shift Rod
-
23951403-0312 Spring Pin, 3-12Spring Pin, 3-12
-
24346-66225-1 Shift Rod LeverShift Rod Lever
-
25930403-1000 Nylon Nut,10P-1.5Nylon Nut,10P-1.5
-
26346-66226-0 Grommet, Shift RodGrommet, Shift Rod
-
27345-66119-0 Shim, shift Lever StopperShim, shift Lever Stopper
