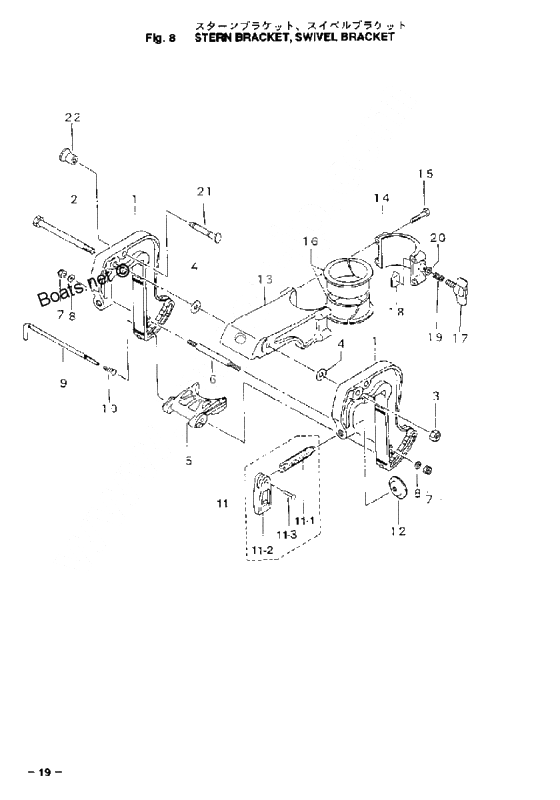

Stern bracket, swivel bracket для Tohatsu M2.5A - 2003 года выпуска`
-
№АртикулНазвание
-
1309S62111-4 Stern bracket
2.5A #89465-, 3.5A #87820Stern bracket
2.5A #89465-, 3.5A #87820 -
2309-62115-1 Bolt, stern bracketBolt, stern bracket
-
4307-62116-0 Washer, stern bracketWasher, stern bracket
-
5309-62212-2 Thrust supporterThrust supporter
-
6309-62118-0 Distance piece bracketDistance piece bracket
-
7930103-0600 NutNut
-
8941303-0600 New partNew part
-
9309-62121-0 Thrust RodThrust Rod
-
10309-62122-0 Spring, thrust rodSpring, thrust rod
-
11-1369-62103-0 Винт струбциныВинт струбцины
-
11-2307S62102-1 Handle, clamp screwHandle, clamp screw
-
11-33C8-62104-0 Rivet 3-22Rivet 3-22
-
12332-62101-0 Pad clamp screwPad clamp screw
-
13309S62391-1 Swivel bracket aSwivel bracket a
-
14309S62392-1 Swivel bracket bSwivel bracket b
-
15910103-0630 BoltBolt
-
9101E3-0630 BoltBolt
-
16309-62321-1 Pivot bushingPivot bushing
-
17309S62442-1 Steering adjust screwSteering adjust screw
-
18309-62441-2 Friction PieceFriction Piece
-
19309-62446-0 Steering adjust springSteering adjust spring
-
20940103-0600 WasherWasher
-
21309-62464-0 Tilt StopperTilt Stopper
-
22309-62463-0 Knob Tilt StopperKnob Tilt Stopper
-
1309S62111-4 Stern bracket
2.5A #89465-, 3.5A #87820Stern bracket
2.5A #89465-, 3.5A #87820 -
2309-62115-1 Bolt, stern bracketBolt, stern bracket
-
4307-62116-0 Washer, stern bracketWasher, stern bracket
-
5309-62212-2 Thrust supporterThrust supporter
-
6309-62118-0 Distance piece bracketDistance piece bracket
-
7930103-0600 NutNut
-
8941303-0600 New partNew part
-
9309-62121-0 Thrust RodThrust Rod
-
10309-62122-0 Spring, thrust rodSpring, thrust rod
-
11-1369-62103-0 Винт струбциныВинт струбцины
-
11-2307S62102-1 Handle, clamp screwHandle, clamp screw
-
11-33C8-62104-0 Rivet 3-22Rivet 3-22
-
12332-62101-0 Pad clamp screwPad clamp screw
-
13309S62391-1 Swivel bracket aSwivel bracket a
-
14309S62392-1 Swivel bracket bSwivel bracket b
-
15910103-0630 BoltBolt
-
9101E3-0630 BoltBolt
-
16309-62321-1 Pivot bushingPivot bushing
-
17309S62442-1 Steering adjust screwSteering adjust screw
-
18309-62441-2 Friction PieceFriction Piece
-
19309-62446-0 Steering adjust springSteering adjust spring
-
20940103-0600 WasherWasher
-
21309-62464-0 Tilt StopperTilt Stopper
-
22309-62463-0 Knob Tilt StopperKnob Tilt Stopper
