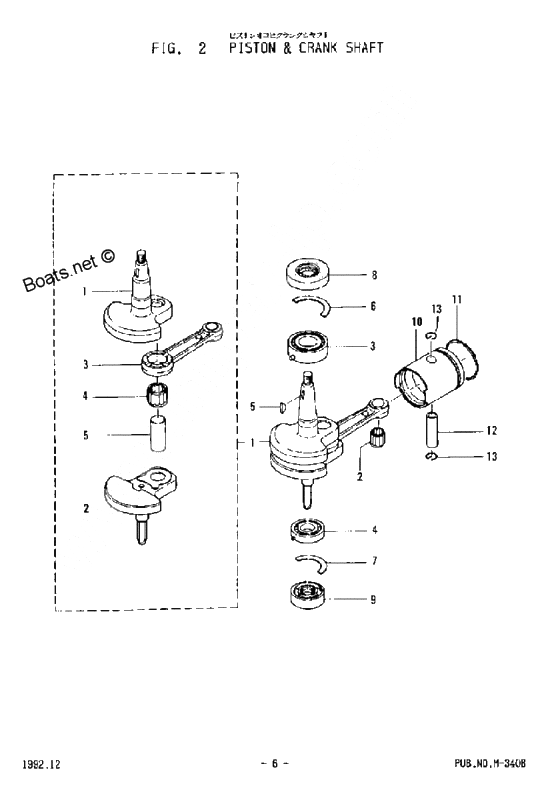

Piston & crank shaft для Tohatsu M2.5A - 2003 года выпуска`
-
№АртикулНазвание
-
1312-00030-0 Crank shaft ass'yCrank shaft ass'y
-
1-1312-00031-0 КоленвалКоленвал
-
1-2309-00034-0 Crankshaft dCrankshaft d
-
1-3309-00040-0 Connecting RodConnecting Rod
-
1-4309-00043-0 Needle bearing 16-22-12Needle bearing 16-22-12
-
1-5309-00061-0 Crank pinCrank pin
-
2309-00042-0 Needle bearing 10.5-14-15Needle bearing 10.5-14-15
-
3309-00040-0 Connecting RodConnecting Rod
-
39643-3-6004 Ball BearingBall Bearing
-
49643-3-6202 Ball BearingBall Bearing
-
4309-00043-0 Needle bearing 16-22-12Needle bearing 16-22-12
-
5309-00131-0 Key, MagnetoKey, Magneto
-
5309-00061-0 Crank pinCrank pin
-
6309-00106-0 Thrust plate upperThrust plate upper
-
7309-00107-0 Crankshaft plate lowerCrankshaft plate lower
-
8309-00121-0 Oil seal 20-42-8Oil seal 20-42-8
-
9309-00122-0 Oil seal,15-35-15Oil seal,15-35-15
-
10309-00001-0 Piston (std)Piston (std)
-
10309-00004-0 Piston (0.5 o/s)
OptionPiston (0.5 o/s)
Option -
11302-00011-0 Кольцо поршняКольцо поршня
-
11302-00014-0 Кольцо поршня
OptionКольцо поршня
Option -
12309-00021-0 Палец поршняПалец поршня
-
13309-00024-1 Clip, Piston PinClip, Piston Pin
-
13309-00024-0 ClipClip
-
1312-00030-0 Crank shaft ass'yCrank shaft ass'y
-
1-1312-00031-0 КоленвалКоленвал
-
1-2309-00034-0 Crankshaft dCrankshaft d
-
1-3309-00040-0 Connecting RodConnecting Rod
-
1-4309-00043-0 Needle bearing 16-22-12Needle bearing 16-22-12
-
1-5309-00061-0 Crank pinCrank pin
-
2309-00042-0 Needle bearing 10.5-14-15Needle bearing 10.5-14-15
-
3309-00040-0 Connecting RodConnecting Rod
-
39643-3-6004 Ball BearingBall Bearing
-
49643-3-6202 Ball BearingBall Bearing
-
4309-00043-0 Needle bearing 16-22-12Needle bearing 16-22-12
-
5309-00131-0 Key, MagnetoKey, Magneto
-
5309-00061-0 Crank pinCrank pin
-
6309-00106-0 Thrust plate upperThrust plate upper
-
7309-00107-0 Crankshaft plate lowerCrankshaft plate lower
-
8309-00121-0 Oil seal 20-42-8Oil seal 20-42-8
-
9309-00122-0 Oil seal,15-35-15Oil seal,15-35-15
-
10309-00001-0 Piston (std)Piston (std)
-
10309-00004-0 Piston (0.5 o/s)
OptionPiston (0.5 o/s)
Option -
11302-00011-0 Кольцо поршняКольцо поршня
-
11302-00014-0 Кольцо поршня
OptionКольцо поршня
Option -
12309-00021-0 Палец поршняПалец поршня
-
13309-00024-1 Clip, Piston PinClip, Piston Pin
-
13309-00024-0 ClipClip
