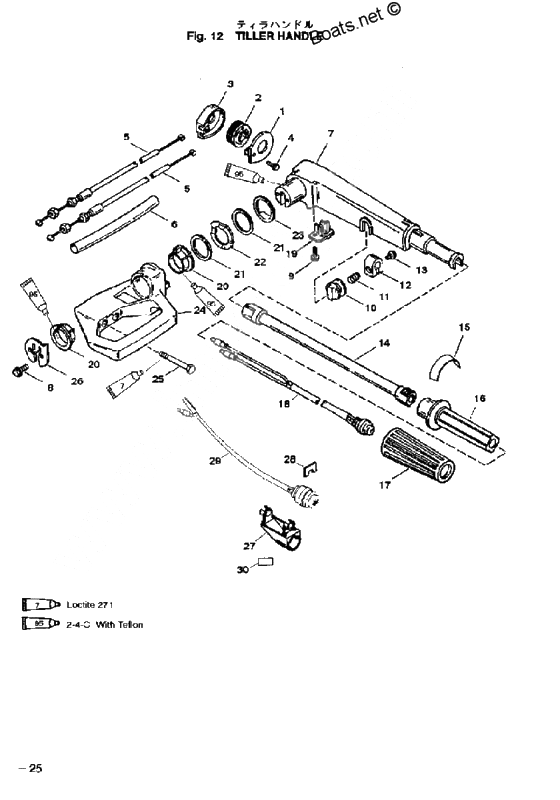

Tiller handle для Tohatsu MFS9.9A - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    3V3-63059-0 Cover
    for MF & EF
    Cover
    for MF & EF
  • 2
    3V3-63043-0 Pulley
    for MF & EF
    Pulley
    for MF & EF
  • 3
    3V3-63045-0 Case
    NSS for MF & EF
    Case
    NSS for MF & EF
  • 4
    3V3-63047-0 Screw(10-16x1/2)
    for MF & EF
    Screw(10-16x1/2)
    for MF & EF
  • 5
    3V3-63600-0 Throttle Cable
    for MF & EF
    Throttle Cable
    for MF & EF
  • 6
    3V3-63609-0 Bushing
    for MF & EF
    Bushing
    for MF & EF
  • 7
    3V3S63011-0 Steering handle arm
    for MF & EF
    Steering handle arm
    for MF & EF
  • 10
    3V3-63034-0 Knob-throttle friction
    for MF & EF
    Knob-throttle friction
    for MF & EF
  • 11
    3V3-63036-0 Spring Washer
    for MF & EF
    Spring Washer
    for MF & EF
  • 12
    3V3-63035-0 Look-throttle friction
    for MF & EF
    Look-throttle friction
    for MF & EF
  • 13
    910803-8625 Bolt
    for MF & EF
    Bolt
    for MF & EF
  • 14
    3V3-63041-0 Tiller tube
    for MF & EF
    Tiller tube
    for MF & EF
  • 15
    3H8-72019-0 Lable
    for MF & EF
    Lable
    for MF & EF
  • 16
    3V3-63098-0 Throttle handle
    for MF & EF
    Throttle handle
    for MF & EF
  • 17
    3V3-63012-0 Grip
    for MF & EF
    Grip
    for MF & EF
  • 18
    3V3-06930-0 Переключатель
    for MF & EF
    Переключатель
    for MF & EF
  • 19
    3V3-63063-0 Retainer
    for MF & EF
    Retainer
    for MF & EF
  • 20
    3V3-63102-0 Bushing
    for MF & EF
    Bushing
    for MF & EF
  • 21
    3V3-63108-0 Washer
    for MF & EF
    Washer
    for MF & EF
  • 22
    3V3-63109-0 Washer
    for MF & EF
    Washer
    for MF & EF
  • 23
    3V3-63106-0 Washer
    for MF & EF
    Washer
    for MF & EF
  • 24
    3V3S62001-0 Bracket,steering arm
    for MF & EF
    Bracket,steering arm
    for MF & EF
  • 25
    910203-1080 Bolt
    for MF & EF
    Bolt
    for MF & EF
  • 26
    3V3-63103-0 Plate
    for MF & EF
    Plate
    for MF & EF
  • 27
    3V3-76039-0 Switch housing
    for EF
    Switch housing
    for EF
  • 28
    3V3-06938-0 Clip
    for EF
    Clip
    for EF
  • 29
    3V3-76026-0 Switch
    for EF
    Switch
    for EF
  • 30
    3R3-72055-0 Label,start
    for EF
    Label,start
    for EF
