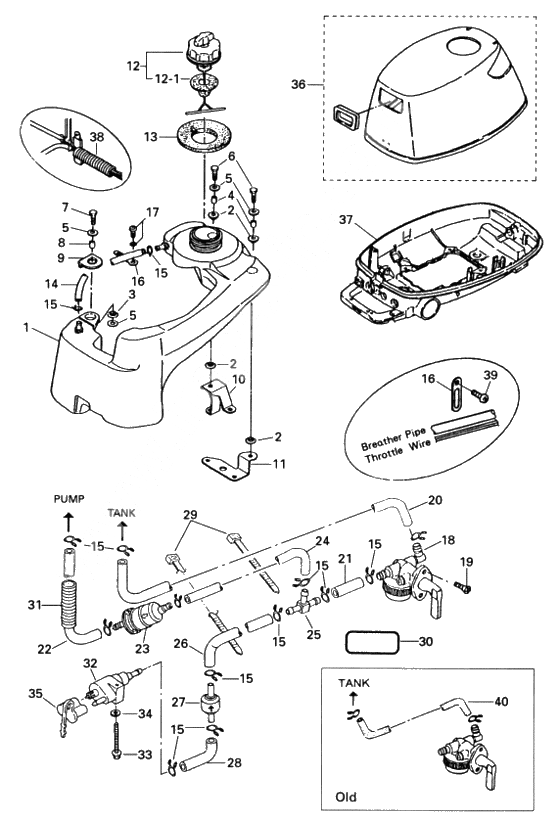

Integral fuel tank - model 4a2 для Tohatsu MFS4A2 - 2002 года выпуска`
-
№АртикулНазвание
-
13H9-70316-1 Fuel tank completeFuel tank complete
-
2346-67113-0 Mount RubberMount Rubber
-
3122-35083-0 Mount RubberMount Rubber
-
4346-67114-0 Spacer 6.2-9-15.7Spacer 6.2-9-15.7
-
5346-67115-0 WasherWasher
-
6910113-0625 Bolt
OR 910103-0625Bolt
OR 910103-0625 -
7910113-0620 Bolt
OR 910103-0620Bolt
OR 910103-0620 -
83H9-70015-0 SpaiserSpaiser
-
93H9-70048-0 Plate, fuel tankPlate, fuel tank
-
103H9-70044-0 Bracket,rearBracket,rear
-
113H9-70046-0 Bracket,leftBracket,left
-
123H9-70020-0 Fuel tank cap ass'yFuel tank cap ass'y
-
12-1309-70021-3 Gasket, Fuel Tank CapGasket, Fuel Tank Cap
-
133H9-70036-0 Seal rubber fuel tankSeal rubber fuel tank
-
1498AB-5-0250 Fuel pipe 5mm (1 ea.=1 meter)Fuel pipe 5mm (1 ea.=1 meter)
-
98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)Fuel pipe 5mm (1 ea.=1 meter)
-
15338-02215-0 ClipClip
-
16309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
17921503-5512 ScrewScrew
-
921503-0512 ScrewScrew
-
183H9-70311-0 Fuel CockFuel Cock
-
19921803-0410 Stud BoltStud Bolt
-
203H9-70326-0 Fuel pipe 4.5s-310Fuel pipe 4.5s-310
-
2198AB-5-0030 Fuel pipe 5mm (1 ea.=1 meter)Fuel pipe 5mm (1 ea.=1 meter)
-
98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)Fuel pipe 5mm (1 ea.=1 meter)
-
22394-02211-0 Fuel pipe cFuel pipe c
-
23369-02230-0 Фильтр топливныйФильтр топливный
-
243H9-70325-0 Fuel pipe 4.5l-230Fuel pipe 4.5l-230
-
25394-70013-0 Pipu Joint T-typePipu Joint T-type
-
263H6-02204-0 Fuel pipe,4.5l-115Fuel pipe,4.5l-115
-
27394-70327-0 Non Return ValveNon Return Valve
-
28394-70325-0 Fuel pipe fFuel pipe f
-
29369-84398-0 Band Lead Wire,158Band Lead Wire,158
-
30394-72016-0 Decal,fuel lever dDecal,fuel lever d
-
313H9-70313-0 Protector,fuel PipeProtector,fuel Pipe
-
32394-70260-0 Fuel conector(enginemale)Fuel conector(enginemale)
-
323H9-70313-0 Protector,fuel PipeProtector,fuel Pipe
-
333H9-70313-0 Protector,fuel PipeProtector,fuel Pipe
-
33910103-0640 BoltBolt
-
343H9-70313-0 Protector,fuel PipeProtector,fuel Pipe
-
34940113-0600 Washer
OR 940103-0600Washer
OR 940103-0600 -
353H6-70262-0 Propeller Fuel ConectorPropeller Fuel Conector
-
353H9-70313-0 Protector,fuel PipeProtector,fuel Pipe
-
363H9S67500-0 Motor cover upper ass'y
TOHATSUMotor cover upper ass'y
TOHATSU -
363R5N67500-0 U/m cover nsf4a-int tank (2000)
NISSANU/m cover nsf4a-int tank (2000)
NISSAN -
373H9S67100-0 Motor cover lowerMotor cover lower
-
383H9-06133-0 Protector,wire HarnessProtector,wire Harness
-
39921513-0612 Stud Bolt
OR 921503-0612Stud Bolt
OR 921503-0612 -
403H9-02204-0 Fuel pipu,4.5l-335
OLD / 4A #10203~4A2 #12182Fuel pipu,4.5l-335
OLD / 4A #10203~4A2 #12182
