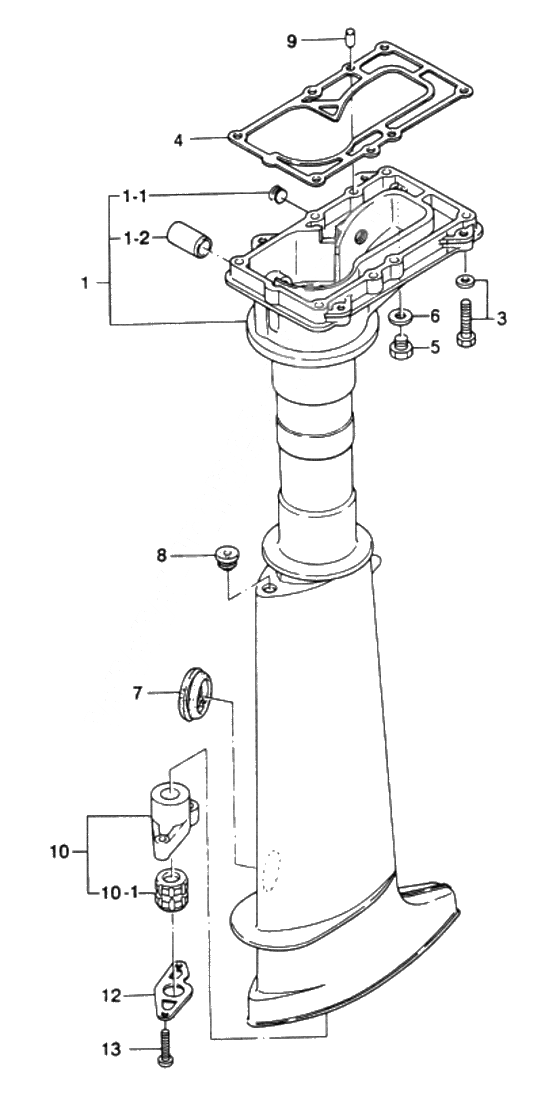

Drive shaft housing для Tohatsu MFS4A2 - 2002 года выпуска`
-
№АртикулНазвание
-
13H6S61020-0 Drive shaft howsing sDrive shaft howsing s
-
13H6S61030-0 Drive shaft housing lDrive shaft housing l
-
1-13H6-07257-0 Exhaust Plug
NPTF 1/8 - 27Exhaust Plug
NPTF 1/8 - 27 -
1-2301-61021-0 Bushing Shift LeverBushing Shift Lever
-
3910113-5630 BoltBolt
-
43H6-61012-0 Gasket,Drive Shaft HousingGasket,Drive Shaft Housing
-
5910613-0808 BoltBolt
-
6332-60006-0 Gasket (8.1x15.1)Gasket (8.1x15.1)
-
7369-61016-0 Grommet Drive Shaft HousingGrommet Drive Shaft Housing
-
8369-66043-1 Grommet Cam RodGrommet Cam Rod
-
9345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
10369-64331-1 Bushing drive shaft
FOR TRANSOM (L)Bushing drive shaft
FOR TRANSOM (L) -
10-1369-60003-0 Bushing drive shaft
FOR TRANSOM (L)Bushing drive shaft
FOR TRANSOM (L) -
12369-64332-0 Stopper drive shaft bushingStopper drive shaft bushing
-
133H6-64333-0 Stud Bolt
FOR TRANSOM (L)Stud Bolt
FOR TRANSOM (L) -
13921503-0510 Stud Bolt
FOR TRANSOM (S)Stud Bolt
FOR TRANSOM (S)
