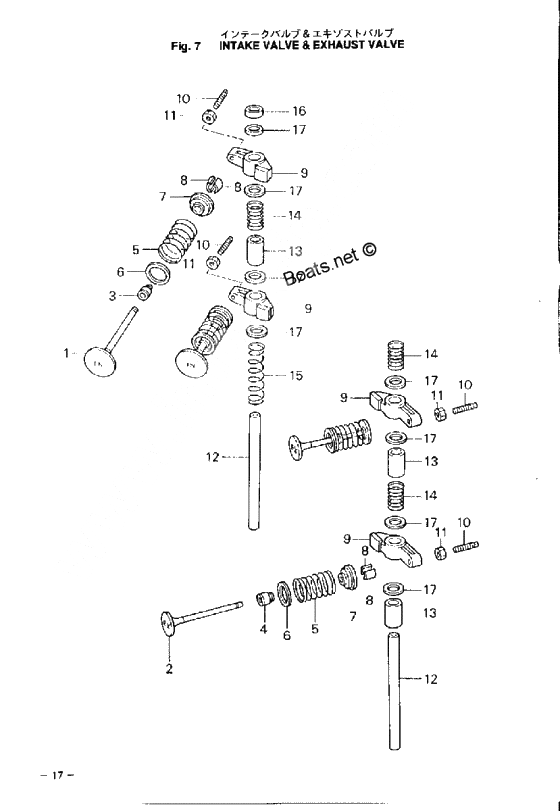

Intake valve, exhaust valve для Tohatsu MFS15B - 2002 года выпуска`
-
№АртикулНазвание
-
13R3-07201-0 Floato Valve AssyFloato Valve Assy
-
23H8-07202-0 Exhaust ValveExhaust Valve
-
33R3-07204-0 Seal, In Valve Stem
BlackSeal, In Valve Stem
Black -
43R3-07206-0 Seal, EX Valve Stem
GreenSeal, EX Valve Stem
Green -
53H6-07203-1 Пружина клапанаПружина клапана
-
63H6-07205-0 Seat, Valve SpringSeat, Valve Spring
-
73H6-07221-0 Retaine,int. & Exh.Retaine,int. & Exh.
-
83H6-07223-0 CotterCotter
-
93H8-07235-0 Rocker armRocker arm
-
103H8-07238-0 Stud BoltStud Bolt
-
113H8-07237-0 NutNut
-
123H8-07226-0 Shaft, rocker armShaft, rocker arm
-
133H8-07239-0 Collar, Rocker Arm Shaft
l=30Collar, Rocker Arm Shaft
l=30 -
143H8-07225-0 Spring Washer
l=51Spring Washer
l=51 -
153H8-07229-0 Spring WasherSpring Washer
-
163R3-07227-0 WasherWasher
-
173H8-07227-0 WasherWasher
