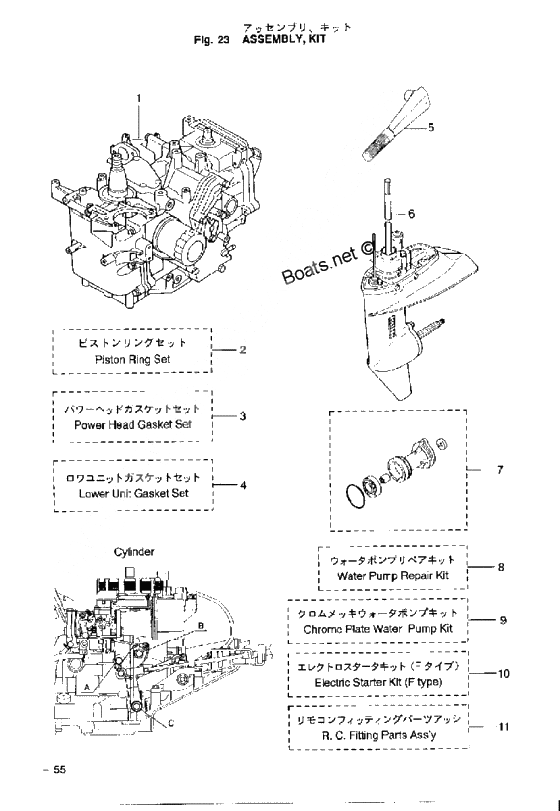

Assembly kit для Tohatsu MFS15B - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    3V9B87100-0 Engine short block 18
    Engine short block 18
  • 2
    3H6-00013-0 Ring piston oil
    Ring piston oil
  • 2
    3H6-87124-0 Кольца поршневые
    Кольца поршневые
  • 2
    3H6-00014-0 Piston Ring Top 0.5 O/S
    Piston Ring Top 0.5 O/S
  • 2
    3H6-00015-0 Piston Ring 2nd 0.5 O/S
    Piston Ring 2nd 0.5 O/S
  • 2
    3H6-87123-0 Кольца поршневые
    Кольца поршневые
  • 2
    3H6-00016-0 Piston Ring Oil 0.5 O/S
    Piston Ring Oil 0.5 O/S
  • 2
    3H6-00011-0 Ring piston top
    Ring piston top
  • 2
    3H6-00012-0 Ring piston 2nd
    Ring piston 2nd
  • 3
    3H8-01005-0 Gasket, Cyl. Head
    Gasket, Cyl. Head
  • 3
    345-62415-0 O-Ring
    O-Ring
  • 3
    3R3-07442-2 Gasket, plate oil pan
    , 9.9B/15B/18B
    Gasket, plate oil pan
    , 9.9B/15B/18B
  • 3
    3H8-01024-0 Gasket, head cover
    Gasket, head cover
  • 3
    3H8-07639-0 O-ring Oil Pump
    O-ring Oil Pump
  • 3
    3H8-00121-0 Oil seal, 32-48-8
    Oil seal, 32-48-8
  • 3
    3R0-07422-0 New part
    New part
  • 3
    3H8-07635-0 O-Ring
    O-Ring
  • 3
    3R3-00121-0 Oil Seal, 32-44-9
    Oil Seal, 32-44-9
  • 3
    3R3-02305-0 Exhaust Cover
    Exhaust Cover
  • 3
    3H8-07632-0 O-Ring
    O-Ring
  • 3
    3R3-02104-0 Gasket, inlet manifold
    Gasket, inlet manifold
  • 3
    346-01032-0 New part
    New part
  • 3
    3H8-07631-0 O-Ring
    O-Ring
  • 3
    3R0-02011-0 Gasket, carburetor
    Gasket, carburetor
  • 3
    3R3-01144-0 O-Ring
    O-Ring
  • 3
    3H8-07025-0 Oil Seal,18-35-8
    Oil Seal,18-35-8
  • 3
    3H8-87121-2 Power Head Gasket Set
    9.9B/15B/18B
    Power Head Gasket Set
    9.9B/15B/18B
  • 3
    3F3-02012-0 O-Ring
    O-Ring
  • 3
    3R3-07432-1 Gascket
    Gascket
  • 3
    350-01215-1 Oil Seal
    , 9.9B/15B/18B
    Oil Seal
    , 9.9B/15B/18B
  • 4
    332-66021-0 O-Ring
    O-Ring
  • 4
    398-87321-0 Lower Unit Gasket Set
    9.9B/15B/18B
    Lower Unit Gasket Set
    9.9B/15B/18B
  • 4
    362-02312-0 Gasket, Exhaust Pipe
    - Don't Use For 4-st Engine
    Gasket, Exhaust Pipe
    - Don't Use For 4-st Engine
  • 4
    332-60006-0 Gasket (8.1x15.1)
    Gasket (8.1x15.1)
  • 4
    121-32071-0 O-Ring
    O-Ring
  • 4
    346-65013-0 Oil' seal, 17-30-9
    Oil' seal, 17-30-9
  • 4
    332-60223-0 Oil Seal
    Oil Seal
  • 4
    336-62415-0 O-Ring
    O-Ring
  • 5
    3R3S63003-0 Handle ass'y
    9.9B/15B/18B
    Handle ass'y
    9.9B/15B/18B
  • 6
    3R3S87301-0 Lower unit ass'y s
    9.9B/15B/18B
    Lower unit ass'y s
    9.9B/15B/18B
  • 6
    3R3S87302-0 Lower unit ass'y l
    9.9B/15B/18B
    Lower unit ass'y l
    9.9B/15B/18B
  • 7
    362S87323-0 Propeller shaft housing ass'y
    9.9B/15B/18B
    Propeller shaft housing ass'y
    9.9B/15B/18B
  • 8
    362-87322-0 ウォ-タ-ポンプリペアキット
    9.9B/15B/18B
    ウォ-タ-ポンプリペアキット
    9.9B/15B/18B
  • 9
    362-65231-0 Chrome Plate Water Pump Kit
    9.9B/15B/18B
    Chrome Plate Water Pump Kit
    9.9B/15B/18B
  • 10
    3R3-76141-0 STARTER CORD
    STARTER CORD
  • 10
    3R3-76060-0 Rectifier complete
    Rectifier complete
  • 10
    3A3-76145-0 Cap Starter Terminal
    Cap Starter Terminal
  • 10
    398-76080-0 Neutral Switch Ass'y
    Neutral Switch Ass'y
  • 10
    3R3-76300-0 Electric starter kit(f type)
    9.9B/15B/18B
    Electric starter kit(f type)
    9.9B/15B/18B
  • 10
    3C7-76062-1 Fuse wire ass'y
    Fuse wire ass'y
  • 10
    398-76083-0 Actuator Neutral Switch
    Actuator Neutral Switch
  • 10
    3C8-76010-1 Starter Motor Ass'y
    Starter Motor Ass'y
  • 10
    361-76026-0 Main Switch Ass'y
    Main Switch Ass'y
  • 10
    910103-7825 Bolt
    , or 910103-5825
    Bolt
    , or 910103-5825
  • 10
    3B2-76120-0 Battery cable +/- (new style) 8.2 ft.
    Battery cable +/- (new style) 8.2 ft.
  • 3V1-76120-2 Battery cable +/- (new style) 8.2 ft.
    Battery cable +/- (new style) 8.2 ft.
  • 10
    3R3-76009-0 Band,Starter Motor
    Band,Starter Motor
  • 10
    3B7-76145-0 Terminal Cap
    Terminal Cap
  • 10
    3C8-76007-0 Rubber Starter Motor
    Rubber Starter Motor
  • 11
    3R3-63709-0 Throttle Rod, Remote Control
    Throttle Rod, Remote Control
  • 11
    951603-0800 R-Pin
    R-Pin
  • 11
    3R3-83820-0 Bracket, Cable
    Bracket, Cable
  • 11
    910103-0645 Bolt
    - Fig.17-21, Cylinder Mark B
    Bolt
    - Fig.17-21, Cylinder Mark B
  • 11
    346-67196-1 Rod Snap 3-b
    Rod Snap 3-b
  • 11
    3R3-66129-0 Shift Lever, Remote Control
    Shift Lever, Remote Control
  • 11
    3R3-66128-0 Shift Arm, Remote Control
    Shift Arm, Remote Control
  • 11
    910103-6616 Bolt
    - Fig.17-25, Cylinder Mark A
    Bolt
    - Fig.17-25, Cylinder Mark A
  • 11
    3R3-83910-0 Throttle Lever, Remote Control
    Throttle Lever, Remote Control
  • 11
    910103-0625 Bolt
    - Fig.17-4, Cylinder Mark C
    Bolt
    - Fig.17-4, Cylinder Mark C
  • 11
    3R3-05222-0 L link, 4.5-62
    L link, 4.5-62
  • 11
    3R3-83913-0 Втулка тяги КПП
    Втулка тяги КПП
  • 11
    3R3-83880-0 R.c.fitting parts ass'y
    9.9B/15B/18B
    R.c.fitting parts ass'y
    9.9B/15B/18B
  • 11
    3C8-66308-0 New part
    - Fig.17-15,22 or 3R0-66308-0
    New part
    - Fig.17-15,22 or 3R0-66308-0
  • 11
    930103-0600 Nut
    - Fig.17-9, or 930113-0600
    Nut
    - Fig.17-9, or 930113-0600
  • 11
    3R3-83914-0 Stopper, throttle lever
    Stopper, throttle lever
  • 11
    3R3S67482-0 Braxket, remoto control
    Braxket, remoto control
  • 11
    353-76079-0 Collar 6.2-9-9.3
    Collar 6.2-9-9.3
  • 11
    3B7-83715-0 Cable Joint
    Cable Joint
  • 11
    3V5S62001-0 Кронштейн рулевого управления
    Кронштейн рулевого управления
  • 11
    3R3-67483-0 Cover, Remote Control Bracket
    - Fig. 17-2
    Cover, Remote Control Bracket
    - Fig. 17-2
  • 11
    3C8-63733-0 Rod Snap 5-3
    Rod Snap 5-3
  • 11
    353-83719-0 Washer
    Washer
  • 11
    3R3-83732-0 Втулка кабеля
    Втулка кабеля
