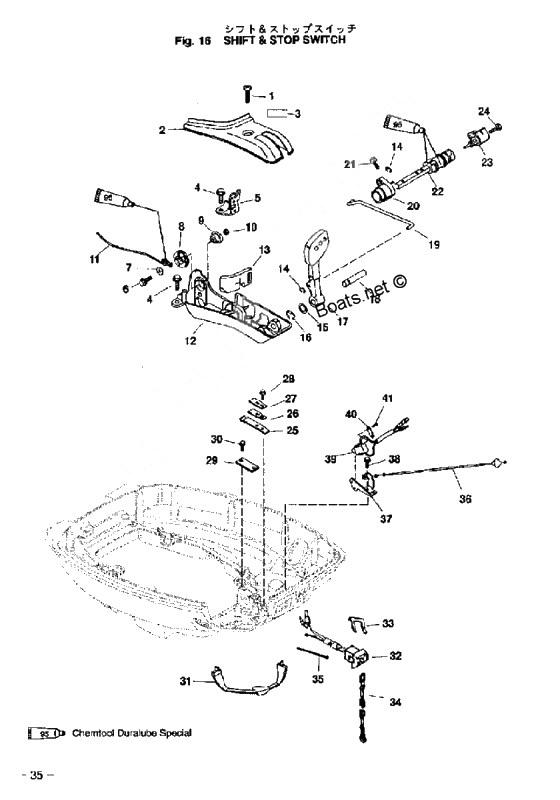

Shift & stop switch для Tohatsu MFS15A - 2002 года выпуска
-
№АртикулНазвание
-
1921503-0620 Stud Bolt
for MF & EFStud Bolt
for MF & EF -
23V3-67004-0 Cover
for MF & EFCover
for MF & EF -
33R3-67578-0 Decal,f.n.r(shift mark)
for MF & EFDecal,f.n.r(shift mark)
for MF & EF -
4910803-0620 Bolt
for MF & EFBolt
for MF & EF -
53V3-83822-0 Throttle cable bracket
for MF & EFThrottle cable bracket
for MF & EF -
73V3-66308-0 Washer
for MF & EFWasher
for MF & EF -
83V3-63611-0 Pully ass'y
for MF & EFPully ass'y
for MF & EF -
93V3-63618-0 Bushing
for MF & EFBushing
for MF & EF -
113R3-63617-0 Throttle Rod
for MF & EFThrottle Rod
for MF & EF -
123V3-67003-0 Shift platform
for MF & EFShift platform
for MF & EF -
133V3-66115-0 Валик
for MF & EFВалик
for MF & EF -
14945503-0500 E-Ring
for MF & EFE-Ring
for MF & EF -
15941403-1000 Washer
for MF & EFWasher
for MF & EF -
173V3-66110-0 SHIFT HANDLE
for MF & EFSHIFT HANDLE
for MF & EF -
183V3-66135-0 Shaft
for MF & EFShaft
for MF & EF -
193V3-66134-0 Shift shaft lever
for MF & EFShift shaft lever
for MF & EF -
203V3-66122-0 Shift LeverShift Lever
-
21910803-0512 BoltBolt
-
223V4-66135-0 Horizontal shift shaftHorizontal shift shaft
-
233V4-66225-0 Interlock leverInterlock lever
-
253V3-66112-0 Spring WasherSpring Washer
-
263V3-66117-0 Spring WasherSpring Washer
-
273V3-66116-0 PlatePlate
-
293V3-66118-0 Ременная лента кабельРеменная лента кабель
-
313V3-66115-0 ВаликВалик
-
323V3-06830-0 ПереключательПереключатель
-
333V3-76027-0 RetainerRetainer
-
343V3-06821-0 LanyardLanyard
-
363R3-05217-0 Wire
for MF & EFWire
for MF & EF -
373V3-76081-0 BracketBracket
-
393V3-76080-0 Switch
for EFSwitch
for EF -
403V3-76083-0 Plate
for EFPlate
for EF
