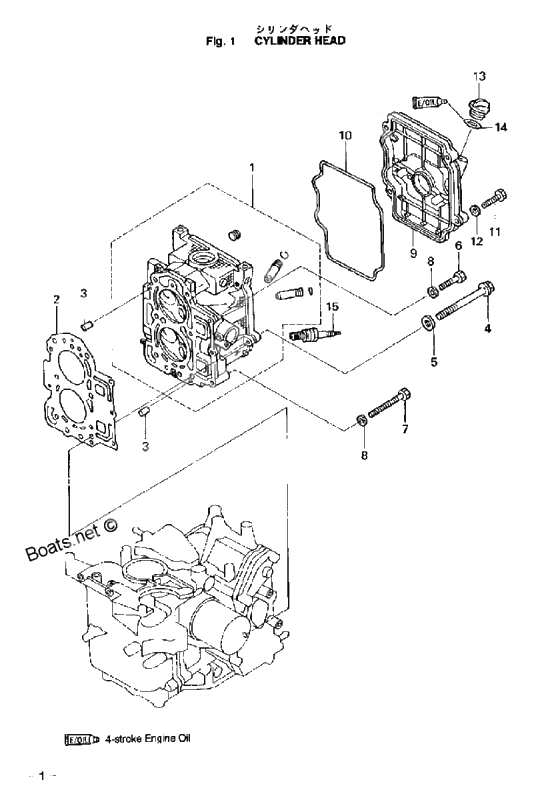

Cylinder head для Tohatsu MFS15A - 2002 года выпуска`
-
№АртикулНазвание
-
13H8B01001-0 Cylinder head a'ssyCylinder head a'ssy
-
23H8-01005-0 Gasket, Cyl. HeadGasket, Cyl. Head
-
3345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
43H8-01013-0 Bolt, Cylinder Head 8-60
01.08.1960 0:00:00Bolt, Cylinder Head 8-60
01.08.1960 0:00:00 -
5940121-0800 WasherWasher
-
8940121-0600 WasherWasher
-
93H8B01021-0 Cover, cyl.headCover, cyl.head
-
103H8-01024-0 Gasket, head cover
RubberGasket, head cover
Rubber -
11910114-0625 BoltBolt
-
133R0-71015-0 Filler Cap,Engine OilFiller Cap,Engine Oil
-
143R0-07422-0 New partNew part
