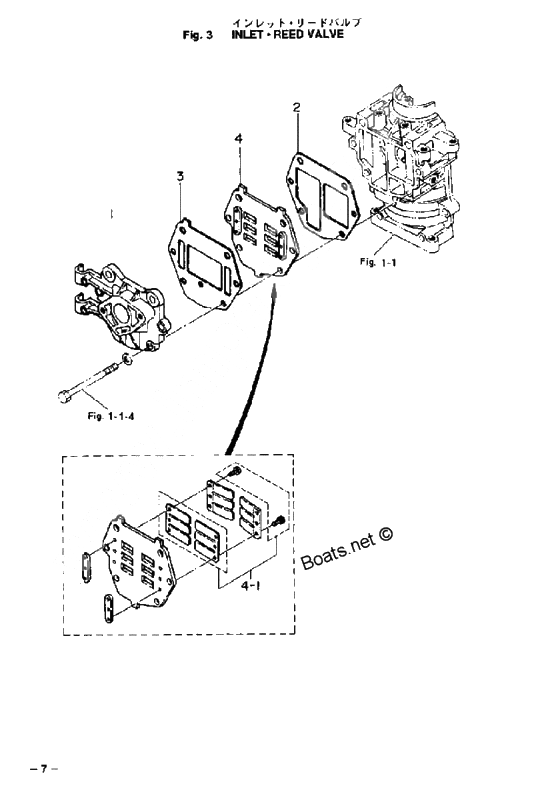

Inlet reed valve для Tohatsu M9.8B - 2002 года выпуска`
-
№АртикулНазвание
-
13K9-03200-0 Carburetor ass'y (54EA)Carburetor ass'y (54EA)
-
23B2-02104-0 Gasket inner inlet manifoldGasket inner inlet manifold
-
33B2-02105-0 Gasket outer inlet manifoldGasket outer inlet manifold
-
43B2-02100-0 Reed Valve Ass'yReed Valve Ass'y
-
4-13B2-02110-0 Reed valve setReed valve set
Все узлы модели:
- Assembly kit
- Bracket & reverse lock
- Carburetor
- Cylinder crank assembly
- Drive shaft housing - gear case
- Electric starter
- Fuel tank (remote)
- Gauges, rigging & maintenance
- Gear shift
- • Inlet reed valve
- Magneto
- Motor cover
- Piston & crank shaft
- Recoil starter - starter lock
- Remote control
- Steering handle mf-ef type
- Throttle mechanism
- Transmission - water pump
