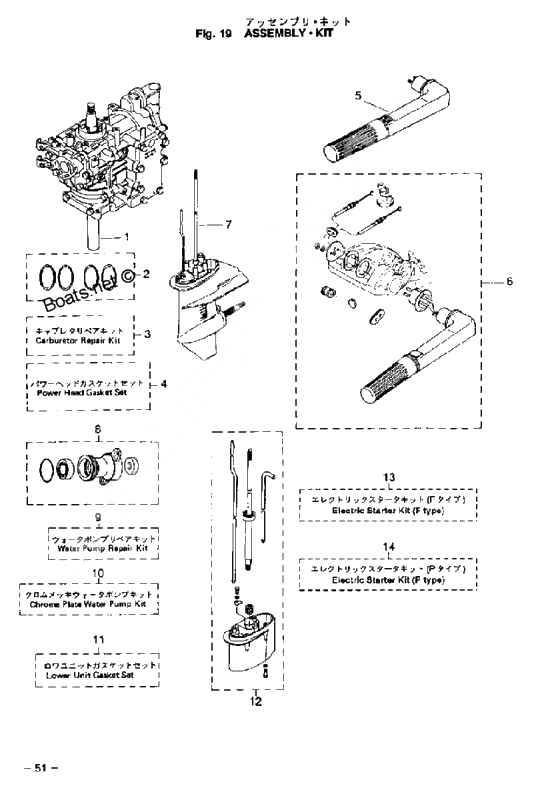

Assembly kit для Tohatsu M9.8B - 2002 года выпуска

  • №
    Артикул
    Название
  • 1-1
    921521-6625 Stud Bolt
    Stud Bolt
  • 2
    369-76167-0 Extension cord light
    Extension cord light
  • 3
    3B7-72530-1 Tachometer Ass'y
    UNIQUE
    Tachometer Ass'y
    UNIQUE
  • 3-1
    3B7-72659-0 Bulb, Meter 12V-1.7W
    Bulb, Meter 12V-1.7W
  • 3-2
    3B7-72656-0 Damper, Meter
    Damper, Meter
  • 3-3
    3B7-72661-0 Plate, Fitting
    Plate, Fitting
  • 3-4
    930203-0500 Nut
    Nut
  • 3-5
    941303-0500 Spring Washer
    Spring Washer
  • 4
    361-72539-0 Lead Wire Tachometer
    Lead Wire Tachometer
  • 5
    345-67169-0 Grommet lighting cord
    Grommet lighting cord
  • 6
    361-72543-0 Separate cord(yellow)
    Separate cord(yellow)
  • 7
    361-72542-0 Separate cord(white)
    Separate cord(white)
  • 8
    346-76160-1 Rectifier kit a
    Rectifier kit a
  • 9
    3B2-76097-0 Проводка
    for : EP
    Проводка
    for : EP
  • 10
    3B2-76098-0 Проводка
    for : EP
    Проводка
    for : EP
  • 11
    3B2-05911-0 Vertical starter elbow
    Vertical starter elbow
  • 13
    940103-0600 Washer
    Washer
  • 14
    930103-0600 Nut
    Nut
  • 15
    3B2-05912-0 Seal rubber virtical starting accessory
    Seal rubber virtical starting accessory
  • 16
    375-72311-0 Vinyl motor cover
    UNIQUE
    Vinyl motor cover
    UNIQUE
  • 18
    3F3-72540-0 Ignition Checker
    Ignition Checker
  • 19
    3B2-64111-0 Test Propeller
    Test Propeller
  • 20
    3Y9-72304-0 Engine oil, 4.0l
    Engine Oil N.A.F.N.
    Engine oil, 4.0l
    Engine Oil N.A.F.N.
  • 20
    3AC-72300-0 Tohatsu super gold (1.0 liter)
    Engine Oil N.A.F.N.
    Tohatsu super gold (1.0 liter)
    Engine Oil N.A.F.N.
  • 21
    332-72305-0 Gear oil (260cc)
    30 tubes/case N.A.F.N.
    Gear oil (260cc)
    30 tubes/case N.A.F.N.
  • 21
    332-72306-0 Gear oil (500ml)
    20 tubes/case N.A.F.N.
    Gear oil (500ml)
    20 tubes/case N.A.F.N.
  • 22
    332-72309-0 Grease (250g)
    24 tubeslcase N.A.F.N.
    Grease (250g)
    24 tubeslcase N.A.F.N.
  • 23
    3B7-72326-0 Paint tohatsu (92-05) - nissan (00-05) 12 oz spray -silver-gray
    12 cans/case N.A.F.N.
    Paint tohatsu (92-05) - nissan (00-05) 12 oz spray -silver-gray
    12 cans/case N.A.F.N.
  • 24
    332-72401-0 Outboard stand caster
    Outboard stand caster
  • 25
    332-72402-0 Stand
    Stand
