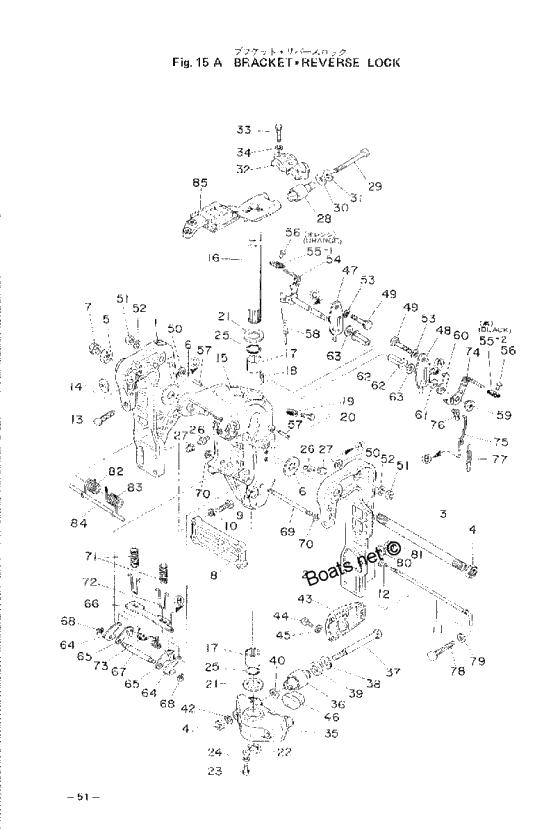

Bracket & reverse lock для Tohatsu M70A2 - 2002 года выпуска`
-
№АртикулНазвание
-
00353-62415-0 O-Ring
NS50C,NS60A,NS70A2 D3.5-D29.7O-Ring
NS50C,NS60A,NS70A2 D3.5-D29.7 -
00353-62434-0 Spring tilt lever
NS50C,NS60A,NS70A2Spring tilt lever
NS50C,NS60A,NS70A2 -
00353-62114-1 Plate, stern bracket
NS50C,NS60A,NS70A2Plate, stern bracket
NS50C,NS60A,NS70A2 -
00353-61338-0 Damper rubber 21-34-5
NS50C,NS60A,NS70A2 D21-D34-5MMDamper rubber 21-34-5
NS50C,NS60A,NS70A2 D21-D34-5MM -
00353-66315-0 Spring reverse lock
NS50C,NS60A,NS70A2Spring reverse lock
NS50C,NS60A,NS70A2 -
00940-13060-0 Washer
NS50C,NS60A,NS70A2Washer
NS50C,NS60A,NS70A2 -
00346-62421-0 Spring, friction plate
NS50C,NS60A,NS70A2Spring, friction plate
NS50C,NS60A,NS70A2 -
00941303-1200 Spring Washer
NS50C,NS60A,NS70A2Spring Washer
NS50C,NS60A,NS70A2 -
00941303-0800 Spring Washer
NS50C,NS60A,NS70A2Spring Washer
NS50C,NS60A,NS70A2 -
00353-66313-0 Arm, reverse lock
NS50C,NS60A,NS70A2Arm, reverse lock
NS50C,NS60A,NS70A2 -
00353-62312-2 Swivel bracket ass'y
NS50C,NS60A,NS70A2Swivel bracket ass'y
NS50C,NS60A,NS70A2 -
00353-61336-0 Damper Rubber
NS50C,NS60A,NS70A2Damper Rubber
NS50C,NS60A,NS70A2 -
00353-62133-0 Bolt
NS50C,NS60A,NS70A2Bolt
NS50C,NS60A,NS70A2 -
00344-67177-0 Масленка
NS50C,NS60A,NS70A2Масленка
NS50C,NS60A,NS70A2 -
00353-62456-0 Nut tilt lever
NS50C,NS60A,NS70A2Nut tilt lever
NS50C,NS60A,NS70A2 -
00941303-0500 Spring Washer
NS50C,NS60A,NS70A2Spring Washer
NS50C,NS60A,NS70A2 -
00353-61315-0 Washer
NS50C,NS60A,NS70A2 D12.2-D25-2MMWasher
NS50C,NS60A,NS70A2 D12.2-D25-2MM -
353-61315-1 WasherWasher
-
00353-66335-0 Hook reverse lock spring
NS50C,NS60A,NS70A2Hook reverse lock spring
NS50C,NS60A,NS70A2 -
00910-43061-0 Bolt
NS50C,NS60A,NS70A2Bolt
NS50C,NS60A,NS70A2 -
00910114-0830 Bolt
NS50C,NS60A,NS70A2Bolt
NS50C,NS60A,NS70A2 -
00941-43180-0 Wave Washer
NS50C,NS60A,NS70A2 D19-D25-0.4MMWave Washer
NS50C,NS60A,NS70A2 D19-D25-0.4MM -
00353-61411-1 Mount bracket
NS50C,NS60A,NS70A2Mount bracket
NS50C,NS60A,NS70A2 -
00353-66327-0 Plate reverse lock
NS50C,NS60A,NS70A2Plate reverse lock
NS50C,NS60A,NS70A2 -
00353-62115-0 Bracket bolt
NS50C,NS60A,NS70A2Bracket bolt
NS50C,NS60A,NS70A2 -
00353-62451-0 Tilt stopper right
NS50C,NS60A,NS70A2Tilt stopper right
NS50C,NS60A,NS70A2 -
00353-62141-0 Spring r tilt assistant
NS50C,NS60A,NS70A2Spring r tilt assistant
NS50C,NS60A,NS70A2 -
00353-61301-0 Mount rubber upper
NS50C,NS60A,NS70A2Mount rubber upper
NS50C,NS60A,NS70A2 -
00353-62436-0 Lever tilt stopper
NS50C,NS60A,NS70A2Lever tilt stopper
NS50C,NS60A,NS70A2 -
00353-62121-0 Thrust Rod
NS50C,NS60A,NS70A2Thrust Rod
NS50C,NS60A,NS70A2 -
00931-13120-0 Nut
NS50C,NS60A,NS70A2Nut
NS50C,NS60A,NS70A2 -
00353-66332-0 Spring reverse lock arm
NS50C,NS60A,NS70A2Spring reverse lock arm
NS50C,NS60A,NS70A2 -
00338-60218-1 Anode
NS50C,NS60A,NS70A2Anode
NS50C,NS60A,NS70A2 -
00353-62423-0 Thrust Plate
NS50C,NS60A,NS70A2Thrust Plate
NS50C,NS60A,NS70A2 -
353-62423-1 Thrust PlateThrust Plate
-
00353-66333-0 Grip
NS50C,NS60A,NS70A2 (ORANGE)Grip
NS50C,NS60A,NS70A2 (ORANGE) -
00346-62124-0 Bracket Nut(Nylon)
NS50C,NS60A,NS70A2Bracket Nut(Nylon)
NS50C,NS60A,NS70A2 -
00353-61302-0 Lower Mount Rubber
NS50C,NS60A,NS70A2Lower Mount Rubber
NS50C,NS60A,NS70A2 -
00353-66314-0 Pin reverse lock
NS50C,NS60A,NS70A2Pin reverse lock
NS50C,NS60A,NS70A2 -
00353-62010-0 Steering shaft ass'y
NS50C,NS60A,NS70A2Steering shaft ass'y
NS50C,NS60A,NS70A2 -
00353-62454-0 Tilt stopper left
NS50C,NS60A,NS70A2Tilt stopper left
NS50C,NS60A,NS70A2 -
00353-62142-0 Spring l tilt assistant
NS50C,NS60A,NS70A2Spring l tilt assistant
NS50C,NS60A,NS70A2 -
00353-61307-0 Bolt mount rubber upper
NS50C,NS60A,NS70A2Bolt mount rubber upper
NS50C,NS60A,NS70A2 -
00334-61315-0 Washer
NS50C,NS60A,NS70A2 D10.5-D22-3MMWasher
NS50C,NS60A,NS70A2 D10.5-D22-3MM -
00353-62122-0 Spring Thrust Rod
NS50C,NS60A,NS70A2Spring Thrust Rod
NS50C,NS60A,NS70A2 -
003B7-61324-0 Nut
NS50C,NS60A,NS70A2Nut
NS50C,NS60A,NS70A2 -
00353-61412-0 Lock plate bracket
NS50C,NS60A,NS70A2Lock plate bracket
NS50C,NS60A,NS70A2 -
00346-62125-0 Bracket nut b
NS50C,NS60A,NS70A2Bracket nut b
NS50C,NS60A,NS70A2 -
00353-61321-1 Bolt lower, mount rubber
NS50C,NS60A,NS70A2Bolt lower, mount rubber
NS50C,NS60A,NS70A2 -
00945-33040-0 E-ring, reverse lock pin
NS50C,NS60A,NS70A2E-ring, reverse lock pin
NS50C,NS60A,NS70A2 -
003A3-62010-0 Steering shaft assy
NS50C,NS60A,NS70A2Steering shaft assy
NS50C,NS60A,NS70A2 -
00353-62452-0 Bolt, tilt stopper
NS50C,NS60A,NS70A2Bolt, tilt stopper
NS50C,NS60A,NS70A2 -
00353-62143-0 Tilt assistance
NS50C,NS60A,NS70A2Tilt assistance
NS50C,NS60A,NS70A2 -
00353-61333-0 Plate damper rubber upper
NS50C,NS60A,NS70A2 D15.1-D29-5MMPlate damper rubber upper
NS50C,NS60A,NS70A2 D15.1-D29-5MM -
00353-62135-0 Bushing
NS50C,NS60A,NS70A2Bushing
NS50C,NS60A,NS70A2 -
00353-62103-0 Винт струбцины
NS50C,NS60A,NS70A2Винт струбцины
NS50C,NS60A,NS70A2 -
00353-61322-0 Washer, mount rubber
NS50C,NS60A,NS70A2Washer, mount rubber
NS50C,NS60A,NS70A2 -
00353-66312-0 Link reverse lock
NS50C,NS60A,NS70A2Link reverse lock
NS50C,NS60A,NS70A2 -
00910103-0614 Bolt
NS50C,NS60A,NS70A2Bolt
NS50C,NS60A,NS70A2 -
00346-66334-0 Stopper
NS50C,NS60A,NS70A2Stopper
NS50C,NS60A,NS70A2 -
00353-62116-0 Bracket washer
NS50C,NS60A,NS70A2D22.5-D54-1MMBracket washer
NS50C,NS60A,NS70A2D22.5-D54-1MM -
00353-61321-2 Bolt
NS50C,NS60A,NS70A2Bolt
NS50C,NS60A,NS70A2 -
353-61321-3 BoltBolt
-
00353-66321-1 Pin reverse lock arm
NS50C,NS60A,NS70A2Pin reverse lock arm
NS50C,NS60A,NS70A2 -
00353-62417-0 Bushing
NS50C,NS60A,NS70A2Bushing
NS50C,NS60A,NS70A2 -
00940-13120-0 Washer
NS50C,NS60A,NS70A2Washer
NS50C,NS60A,NS70A2 -
00353-67122-0 Air guide lower
NS50C,NS60A,NS70A2Air guide lower
NS50C,NS60A,NS70A2 -
00353-61335-0 Washer
NS50C,NS60A,NS70A2 D10-D29-3MMWasher
NS50C,NS60A,NS70A2 D10-D29-3MM -
00353-62136-0 Washer
NS50C,NS60A,NS70A2 D12.5-D30-0.5mmWasher
NS50C,NS60A,NS70A2 D12.5-D30-0.5mm -
00353-62112-4 Stern bracket right
NS50C,NS60A,NS70A2 APR. '87 PRODCTIONStern bracket right
NS50C,NS60A,NS70A2 APR. '87 PRODCTION -
00332-62101-0 Pad clamp screw
NS50C,NS60A,NS70A2Pad clamp screw
NS50C,NS60A,NS70A2 -
00353-61342-0 Cap mount rubber lower
NS50C,NS60A,NS70A2Cap mount rubber lower
NS50C,NS60A,NS70A2 -
00345-05223-1 Rod Snap,3.5-2
NS50C,NS60A,NS70A2 D3.5Rod Snap,3.5-2
NS50C,NS60A,NS70A2 D3.5 -
00941303-0600 New part
NS50C,NS60A,NS70A2New part
NS50C,NS60A,NS70A2 -
00951-13053-6 Pin
NS50C,NS60A,NS70A2 D4-36MMPin
NS50C,NS60A,NS70A2 D4-36MM -
00346-62127-0 Cap,Bracket Bolt
NS50C,NS60A,NS70A2Cap,Bracket Bolt
NS50C,NS60A,NS70A2 -
00353-61334-0 Washer
NS50C,NS60A,NS70A2 D13-D34-3MMWasher
NS50C,NS60A,NS70A2 D13-D34-3MM -
00945-33050-0 E-Ring
NS50C,NS60A,NS70A2E-Ring
NS50C,NS60A,NS70A2 -
00345-62441-0 Friction Plate
NS50C,NS60A,NS70A2Friction Plate
NS50C,NS60A,NS70A2 -
00930-13120-0 Nut, p1.75
NS50C,NS60A,NS70A2Nut, p1.75
NS50C,NS60A,NS70A2 -
003A3-62396-0 New part
NS50C,NS60A,NS70A2New part
NS50C,NS60A,NS70A2 -
00916103-0835 Bolt
NS50C,NS60A,NS70A2Bolt
NS50C,NS60A,NS70A2 -
00353-66322-0 Reverse Lock
NS50C,NS60A,NS70A2Reverse Lock
NS50C,NS60A,NS70A2 -
00353-62113-1 Stern bracket left
NS50C,NS60A,NS70A2 APR. '87 PRODCTIONStern bracket left
NS50C,NS60A,NS70A2 APR. '87 PRODCTION -
00353-62310-1 Swivel bracket
NS50C,NS60A,NS70A2Swivel bracket
NS50C,NS60A,NS70A2 -
00910114-0625 Bolt
NS50C,NS60A,NS70A2Bolt
NS50C,NS60A,NS70A2 -
00353-66323-0 Spring reverse lock link
NS50C,NS60A,NS70A2Spring reverse lock link
NS50C,NS60A,NS70A2 -
01353-62113-2 Stern bracket left
NS50C,NS60A,NS70A2Stern bracket left
NS50C,NS60A,NS70A2 -
013A3-62126-0 Bushing
NS50C,NS60A,NS70A2Bushing
NS50C,NS60A,NS70A2 -
01346-66333-0 Grip
NS50C,NS60A,NS70A2 (BLACK)Grip
NS50C,NS60A,NS70A2 (BLACK) -
1353-62112-3 Stern bracket rightStern bracket right
-
2353-62113-1 Stern bracket leftStern bracket left
-
3353-62115-0 Bracket boltBracket bolt
-
4346-62124-0 Bracket Nut(Nylon)Bracket Nut(Nylon)
-
5346-62125-0 Bracket nut bBracket nut b
-
6353-62116-0 Bracket washer
22.5-54-1mmBracket washer
22.5-54-1mm -
7346-62127-0 Cap,Bracket BoltCap,Bracket Bolt
-
7-4353-66311-0 Lever reverse lock
Not applicable on Power Trim & Tilt modelsLever reverse lock
Not applicable on Power Trim & Tilt models -
8353-62114-1 Plate, stern bracketPlate, stern bracket
-
10941303-0500 Spring Washer
Not applicable on Power Trim & Tilt modelsSpring Washer
Not applicable on Power Trim & Tilt models -
11353-62121-0 Thrust Rod
Not applicable on Power Trim & Tilt modelsThrust Rod
Not applicable on Power Trim & Tilt models -
12353-62122-0 Spring Thrust Rod
Not applicable on Power Trim & Tilt modelsSpring Thrust Rod
Not applicable on Power Trim & Tilt models -
13353-62103-0 Винт струбциныВинт струбцины
-
14332-62101-0 Pad clamp screwPad clamp screw
-
15353-62310-1 Swivel bracketSwivel bracket
-
16353-62010-0 Steering shaft ass'ySteering shaft ass'y
-
17353-62417-0 BushingBushing
-
18345-62441-0 Friction PlateFriction Plate
-
19346-62421-0 Spring, friction plateSpring, friction plate
-
20910114-0830 BoltBolt
-
21353-62423-0 Thrust PlateThrust Plate
-
353-62423-1 Thrust PlateThrust Plate
-
22353-61412-0 Lock plate bracketLock plate bracket
-
23910103-0614 BoltBolt
-
24941303-0600 New partNew part
-
25353-62415-0 O-Ring
3.5-29.7O-Ring
3.5-29.7 -
26344-67177-0 МасленкаМасленка
-
27344-67178-0 Cap grease nippleCap grease nipple
-
28353-61301-0 Mount rubber upperMount rubber upper
-
29353-61307-0 Bolt mount rubber upperBolt mount rubber upper
-
30353-61333-0 Plate damper rubber upper
15.1-29-5mmPlate damper rubber upper
15.1-29-5mm -
31353-61335-0 Washer
10-29-3mmWasher
10-29-3mm -
32353-61341-0 Cap mount rubber upperCap mount rubber upper
-
33916103-0835 BoltBolt
-
34941303-0800 Spring WasherSpring Washer
-
35353-61411-1 Mount bracketMount bracket
-
36353-61302-0 Lower Mount RubberLower Mount Rubber
-
37353-61321-1 Bolt lower, mount rubberBolt lower, mount rubber
-
38353-61334-0 Washer
13-34-3mmWasher
13-34-3mm -
39353-61338-0 Damper rubber 21-34-5
21-34-5mmDamper rubber 21-34-5
21-34-5mm -
40353-61315-0 Washer
12.2-25-2mmWasher
12.2-25-2mm -
353-61315-1 WasherWasher
-
41931-13120-0 NutNut
-
42353-61322-0 Washer, mount rubberWasher, mount rubber
-
43353-61342-0 Cap mount rubber lowerCap mount rubber lower
-
44910114-0625 BoltBolt
-
46353-61336-0 Damper RubberDamper Rubber
-
47353-62451-0 Tilt stopper right
Not applicable on Power Trim & Tilt modelsTilt stopper right
Not applicable on Power Trim & Tilt models -
48353-62454-0 Tilt stopper left
Not applicable on Power Trim & Tilt modelsTilt stopper left
Not applicable on Power Trim & Tilt models -
49353-62452-0 Bolt, tilt stopper
Not applicable on Power Trim & Tilt modelsBolt, tilt stopper
Not applicable on Power Trim & Tilt models -
50940-13120-0 Washer
Not applicable on Power Trim & Tilt modelsWasher
Not applicable on Power Trim & Tilt models -
51930-13120-0 Nut, p1.75
Not applicable on Power Trim & Tilt modelsNut, p1.75
Not applicable on Power Trim & Tilt models -
52941303-1200 Spring Washer
Not applicable on Power Trim & Tilt modelsSpring Washer
Not applicable on Power Trim & Tilt models -
53941-43180-0 Wave Washer
Not applicable on Power Trim & Tilt models 19-25-0.4mmWave Washer
Not applicable on Power Trim & Tilt models 19-25-0.4mm -
54353-62431-0 Tilt lever right
Not applicable on Power Trim & Tilt modelsTilt lever right
Not applicable on Power Trim & Tilt models -
55-1353-66333-0 Grip
Not applicable on Power Trim & Tilt models (Orange)Grip
Not applicable on Power Trim & Tilt models (Orange) -
55-2346-66333-0 Grip
Not applicable on Power Trim & Tilt models (Black)Grip
Not applicable on Power Trim & Tilt models (Black) -
56346-66334-0 Stopper
Not applicable on Power Trim & Tilt modelsStopper
Not applicable on Power Trim & Tilt models -
57951-13043-5 Stopper, tilt lever
Not applicable on Power Trim & Tilt models 4-35mmStopper, tilt lever
Not applicable on Power Trim & Tilt models 4-35mm -
58353-62434-0 Spring tilt lever
Not applicable on Power Trim & Tilt modelsSpring tilt lever
Not applicable on Power Trim & Tilt models -
59353-62456-0 Nut tilt lever
Not applicable on Power Trim & Tilt modelsNut tilt lever
Not applicable on Power Trim & Tilt models -
60353-62436-0 Lever tilt stopper
Not applicable on Power Trim & Tilt modelsLever tilt stopper
Not applicable on Power Trim & Tilt models -
61334-61315-0 Washer
Not applicable on Power Trim & Tilt models 10.5-22-3mmWasher
Not applicable on Power Trim & Tilt models 10.5-22-3mm -
62353-62135-0 Bushing
Not applicable on Power Trim & Tilt modelsBushing
Not applicable on Power Trim & Tilt models -
63353-62136-0 Washer
Not applicable on Power Trim & Tilt models 12.5-30-0.5mmWasher
Not applicable on Power Trim & Tilt models 12.5-30-0.5mm -
64353-66322-0 Reverse Lock
Not applicable on Power Trim & Tilt modelsReverse Lock
Not applicable on Power Trim & Tilt models -
65353-66313-0 Arm, reverse lock
Not applicable on Power Trim & Tilt modelsArm, reverse lock
Not applicable on Power Trim & Tilt models -
66353-66327-0 Plate reverse lock
Not applicable on Power Trim & Tilt modelsPlate reverse lock
Not applicable on Power Trim & Tilt models -
67353-66314-0 Pin reverse lock
Not applicable on Power Trim & Tilt modelsPin reverse lock
Not applicable on Power Trim & Tilt models -
68945-33040-0 E-ring, reverse lock pin
Not applicable on Power Trim & Tilt modelsE-ring, reverse lock pin
Not applicable on Power Trim & Tilt models -
69353-66321-1 Pin reverse lock arm
Not applicable on Power Trim & Tilt modelsPin reverse lock arm
Not applicable on Power Trim & Tilt models -
70945-33050-0 E-Ring
Not applicable on Power Trim & Tilt modelsE-Ring
Not applicable on Power Trim & Tilt models -
71353-66315-0 Spring reverse lock
Not applicable on Power Trim & Tilt modelsSpring reverse lock
Not applicable on Power Trim & Tilt models -
72353-66335-0 Hook reverse lock spring
Not applicable on Power Trim & Tilt modelsHook reverse lock spring
Not applicable on Power Trim & Tilt models -
73353-66332-0 Spring reverse lock arm
Not applicable on Power Trim & Tilt modelsSpring reverse lock arm
Not applicable on Power Trim & Tilt models -
74353-66311-0 Lever reverse lock
NS50C,NS60A,NS70A2Lever reverse lock
NS50C,NS60A,NS70A2 -
75353-66312-0 Link reverse lock
Not applicable on Power Trim & Tilt modelsLink reverse lock
Not applicable on Power Trim & Tilt models -
76345-05223-1 Rod Snap,3.5-2
Not applicable on Power Trim & Tilt modelsRod Snap,3.5-2
Not applicable on Power Trim & Tilt models -
77353-66323-0 Spring reverse lock link
Not applicable on Power Trim & Tilt modelsSpring reverse lock link
Not applicable on Power Trim & Tilt models -
78353-62133-0 BoltBolt
-
82353-62141-0 Spring r tilt assistant
Not applicable on Power Trim & Tilt modelsSpring r tilt assistant
Not applicable on Power Trim & Tilt models -
83353-62142-0 Spring l tilt assistant
Not applicable on Power Trim & Tilt modelsSpring l tilt assistant
Not applicable on Power Trim & Tilt models -
84353-62143-0 Tilt assistance
Not applicable on Power Trim & Tilt modelsTilt assistance
Not applicable on Power Trim & Tilt models -
85353-67122-0 Air guide lowerAir guide lower
Все узлы модели:
- Bar handle (f type)
- Bar handle
- • Bracket & reverse lock
- Carburetor
- Cylinder crank case assembly
- Cylinder, crankcase ass'y
- Driveshaft housing gear case
- Driveshaft housing, gear case
- Electric starter (f type)
- Electric starter (p type)
- Electric starter
- Fuel pump
- Fuel tank (integral)
- Gauges
- Gear shift
- Inlet reed vavle
- Inlet, reed valve
- Magneto
- Motor cover
- Piston & crank shaft
- Remote control
- Throttle mechanism (1) 'p' type
- Throttle mechanism (2) 'f' type
- Throttle mechanism (i) p type
- Throttle mechanism (ii) f type gear shift lever
- Tools
- Transmission water pump
- Transmission, water pump
