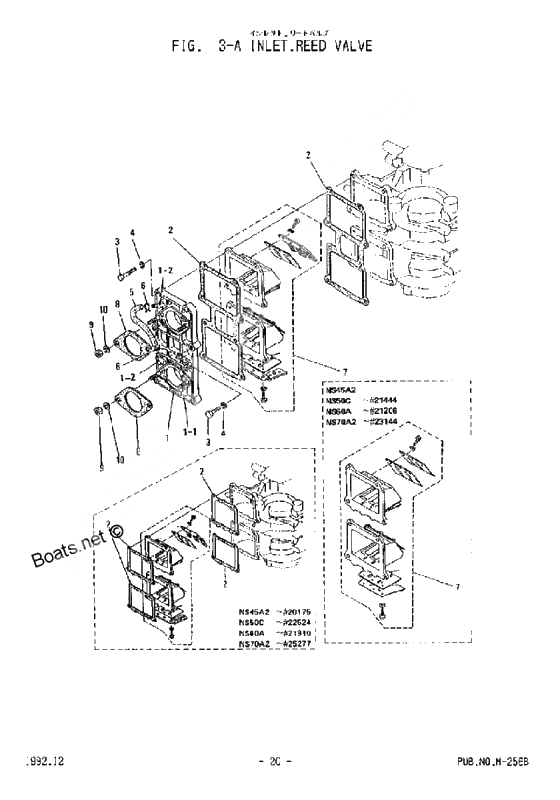

Inlet, reed valve для Tohatsu M70A2 - 2002 года выпуска

  • №
    Артикул
    Название
  • 00
    353-02100-0 Reed valve assembly
    NS50C,NS60A,NS70A2
    Reed valve assembly
    NS50C,NS60A,NS70A2
  • 00
    3A3-02100-0 Reed Valve Ass'y
    NS50C,NS60A,NS70A2
    Reed Valve Ass'y
    NS50C,NS60A,NS70A2
  • 00
    910-11063-0 Bolt b, crankcase
    NS50C,NS60A,NS70A2
    Bolt b, crankcase
    NS50C,NS60A,NS70A2
  • 00
    346-02011-0 Gasket, carburettor
    NS50C,NS60A,NS70A2
    Gasket, carburettor
    NS50C,NS60A,NS70A2
  • 00
    941-32060-0 Spring Washer
    NS50C,NS60A,NS70A2
    Spring Washer
    NS50C,NS60A,NS70A2
  • 00
    930103-0600 Nut
    NS50C,NS60A,NS70A2
    Nut
    NS50C,NS60A,NS70A2
  • 00
    9810-5-0115 Pipe, l-nipple
    NS50C,NS60A,NS70A2 D5-D10-115MM
    Pipe, l-nipple
    NS50C,NS60A,NS70A2 D5-D10-115MM
  • 00
    941303-0600 New part
    NS50C,NS60A,NS70A2
    New part
    NS50C,NS60A,NS70A2
  • 00
    338-02215-0 Clip
    NS50C,NS60A,NS70A2
    Clip
    NS50C,NS60A,NS70A2
  • 01
    915-31061-8 Stud Bolt
    NS50C,NS60A,NS70A2
    Stud Bolt
    NS50C,NS60A,NS70A2
  • 01
    353-02111-0 Reed valve
    NS50C,NS60A,NS70A2
    Reed valve
    NS50C,NS60A,NS70A2
  • 02
    353-01137-0 L-Nipple
    NS50C,NS60A,NS70A2
    L-Nipple
    NS50C,NS60A,NS70A2

Все узлы модели:
