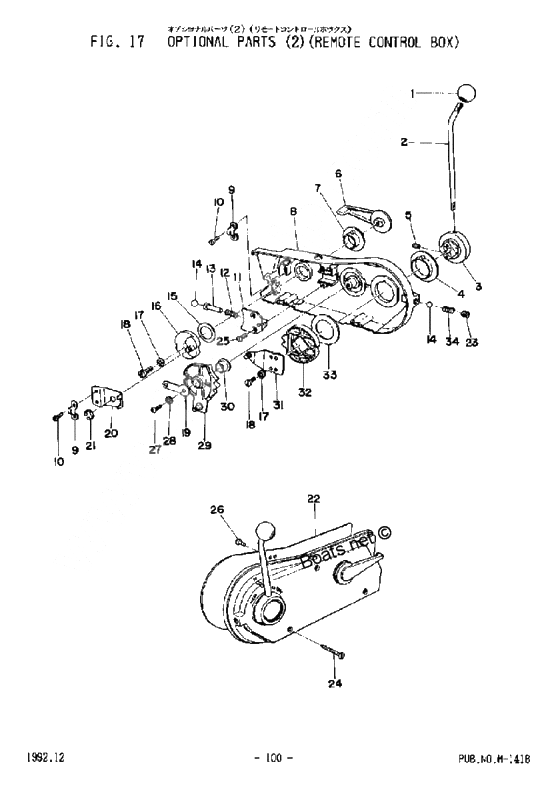

Remote control box для Tohatsu M5BS - 2002 года выпуска`
-
№АртикулНазвание
-
1338-84302-0 Knob, control leverKnob, control lever
-
2338-84343-0 Control leverControl lever
-
3338-84344-0 Lever hubLever hub
-
4338-84345-0 CollarCollar
-
5338-84346-0 Screw, hubScrew, hub
-
6338-84312-0 Idling leverIdling lever
-
7338-84347-0 CollarCollar
-
10338-84373-0 Screw, cable clampScrew, cable clamp
-
11338-84355-0 RetainerRetainer
-
12338-84307-0 Spring WasherSpring Washer
-
13338-84308-0 PistonPiston
-
149650-2-0803 Steel ball 3/8Steel ball 3/8
-
15338-84352-0 WasherWasher
-
16338-84351-1 CrankCrank
-
17338-84354-0 Lock WasherLock Washer
-
18338-84353-0 ScrewScrew
-
19338-84357-0 Retainer plateRetainer plate
-
20338-84369-1 Swivel bracketSwivel bracket
-
21945303-1000 New partNew part
-
22338-84366-0 Plate coverPlate cover
-
23338-84348-0 Stopper screwStopper screw
-
24338-84375-0 Wood screwWood screw
-
25338-84356-0 Retainer screwRetainer screw
-
26338-84367-0 Screw, plate coverScrew, plate cover
-
27338-84358-0 Screw, retainer plateScrew, retainer plate
-
28338-84359-0 Lock WasherLock Washer
-
29338-84361-0 Gear assy, rightGear assy, right
-
30338-84363-0 Collar, gear assyCollar, gear assy
-
31338-84365-0 Throttle arm assyThrottle arm assy
-
33338-84368-0 Wave WasherWave Washer
-
34338-84349-0 Stopper springStopper spring
Все узлы модели:
- Bracket & reverse lock
- Carburetor
- Cylinder, crank case assy
- Drive shaft housing, gear case
- Fuel tank (integral)
- Fuel tank (remote)
- Gear shift
- Handle, throttle
- Magneto
- Motor cover (for domestic)
- Motor cover (for export)
- Piston & crank shaft
- Recoil starter, starter lock
- Remote control (rc4d)
- • Remote control box
- Remote control
- Tools
- Transmission, water pump
