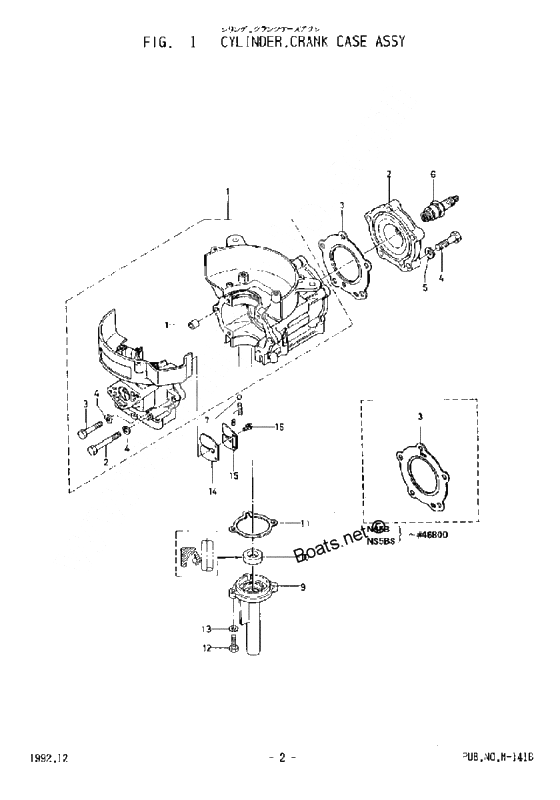

Cylinder, crank case assy для Tohatsu M5BS - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    369-01100-0 Cylinder & crank case assy
    -46800
    Cylinder & crank case assy
    -46800
  • 1
    369-01100-1 Cylinder & crank case assy
    Blue, Interchangeable with Older and Newer Parts, 46801-79758
    Cylinder & crank case assy
    Blue, Interchangeable with Older and Newer Parts, 46801-79758
  • 1
    369-01100-2 Cylinder & crank case assy
    Gray, Not Interchangeable, 79759-
    Cylinder & crank case assy
    Gray, Not Interchangeable, 79759-
  • 1
    332-01111-0 Knock, crankcase
    Knock, crankcase
  • 2
    369-01001-0 Cylinder head
    Blue, -79758
    Cylinder head
    Blue, -79758
  • 2
    916-14065-3 Bolt a, crank case
    Bolt a, crank case
  • 3
    369-01005-0 Gasket, cylinder head
    -46800
    Gasket, cylinder head
    -46800
  • 3
    369-01005-1 Gasket cylinder head
    Interchangeable with Older and Newer Parts, 46801-
    Gasket cylinder head
    Interchangeable with Older and Newer Parts, 46801-
  • 4
    916-14083-5 Bolt
    Bolt
  • 4
    941-32060-0 Spring Washer
    Spring Washer
  • 5
    940-11080-0 Washer
    Washer
  • 6
    9701-0-1010 Spark plug
    NGK BP7HS10 (GAP 1.0)
    Spark plug
    NGK BP7HS10 (GAP 1.0)
  • 6
    9701-0-1014 Spark plug (bpr7hs-10)
    BPR7HS-10
    Spark plug (bpr7hs-10)
    BPR7HS-10
  • 7
    332-01121-1 Nylon ball check valve
    Nylon ball check valve
  • 9
    369-01210-0 Head, Crank Case
    -27901
    Head, Crank Case
    -27901
  • 9
    369-01210-1 Head, Crank Case
    Interchangeable with Older and Newer Parts, 27901-
    Head, Crank Case
    Interchangeable with Older and Newer Parts, 27901-
  • 10
    369-01215-0 Oil Seal
    D10.1-D2.5-7MM
    Oil Seal
    D10.1-D2.5-7MM
  • 11
    369-01214-0 Gasket Crank Case Head
    Gasket Crank Case Head
  • 12
    910103-0620 Bolt
    Bolt
  • 13
    941303-0600 New part
    New part
  • 14
    369-02111-0 Floato Valve Assy
    Floato Valve Assy
  • 15
    369-02113-0 Stopper reed valve
    Stopper reed valve
  • 16
    921-51641-0 Screw (w/washer), float chamber
    Screw (w/washer), float chamber
