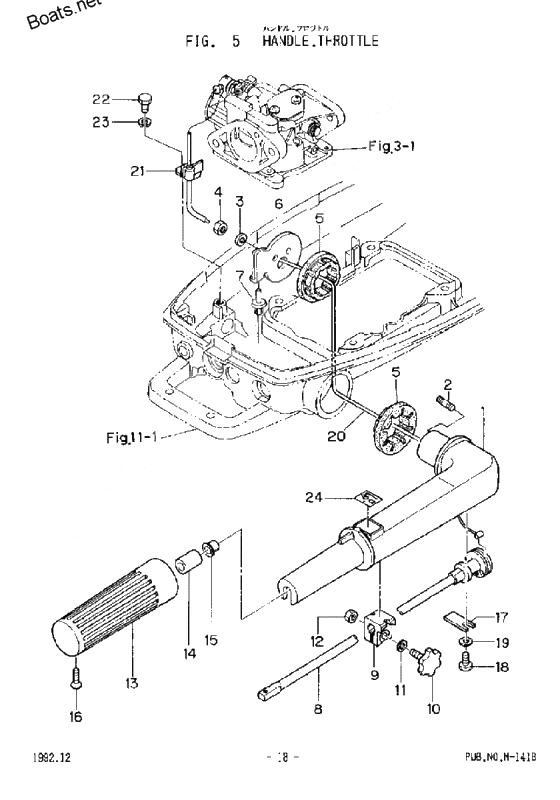

Handle, throttle для Tohatsu M5BS - 2002 года выпуска`
-
№АртикулНазвание
-
13B2-63011-0 Steering handle
BlueSteering handle
Blue -
13B2S63011-1 Рулевой рычаг и кабель
GrayРулевой рычаг и кабель
Gray -
23B2-63104-0 Stud Bolt
GrayStud Bolt
Gray -
3941303-0600 New part
GrayNew part
Gray -
4930103-0600 Nut
GrayNut
Gray -
5369-63102-0 New part
GrayNew part
Gray -
6369-63103-1 Stopper starter handle
GrayStopper starter handle
Gray -
7350-67154-0 New part
GrayNew part
Gray -
83B2-63041-0 Throttle Shaft
GrayThrottle Shaft
Gray -
93B2-63051-0 Friction piece, grip
GrayFriction piece, grip
Gray -
103B2-63034-0 Adjust Screw
GrayAdjust Screw
Gray -
11940-13160-0 Washer
GrayWasher
Gray -
13350-63012-0 Grip
GrayGrip
Gray -
14345-63048-0 Rubber Throttle Shaft A
GrayRubber Throttle Shaft A
Gray -
15350-63046-0 Bushing
GrayBushing
Gray -
16920-83051-8 Screw
GrayScrew
Gray -
920803-0518 ScrewScrew
-
173B2-63063-0 Supporter Throttle Shaft
GraySupporter Throttle Shaft
Gray -
18910103-0612 New part
GrayNew part
Gray -
19940-13060-0 Washer
GrayWasher
Gray -
20369-63600-1 Throttle Wire
GrayThrottle Wire
Gray -
21369-63508-0 Bracket throttle wire
GrayBracket throttle wire
Gray -
22910-1D061-2 Bolt
GrayBolt
Gray -
23941-3U060-0 Spring Washer
GraySpring Washer
Gray -
24369-72019-0 Label, throttle
GrayLabel, throttle
Gray
