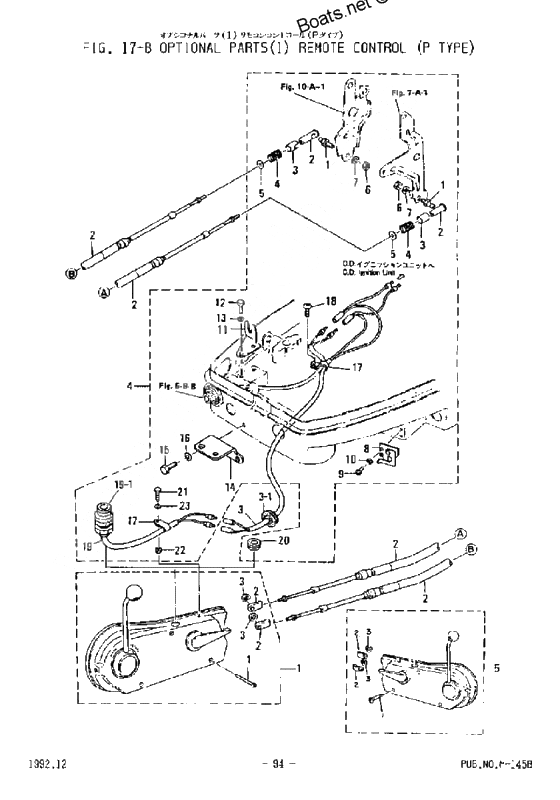

Remote control для Tohatsu M40C - 2002 года выпуска`
-
№АртикулНазвание
-
00391-00003-1 Single remote control box assy
Right MountingSingle remote control box assy
Right Mounting -
00361-83880-1 S.r.c fitting parts ass'yS.r.c fitting parts ass'y
-
00361-83843-0 R.c. stop cord 3.2m
2-3M For 2-3M R.C.CableR.c. stop cord 3.2m
2-3M For 2-3M R.C.Cable -
00361-83853-0 R.c. stop cord 3.9m
3.5-4.5M For 3.5-4.5M R.C.CableR.c. stop cord 3.9m
3.5-4.5M For 3.5-4.5M R.C.Cable -
003B7-84350-1 Single remote control box ass'y(rc5c)
Left MountingSingle remote control box ass'y(rc5c)
Left Mounting -
00361-83858-0 R.c. Stop Cord 5.9m
5M-For 5.0M-R.C.CableR.c. Stop Cord 5.9m
5M-For 5.0M-R.C.Cable -
01345-76023-0 Grommet 22-2.5Grommet 22-2.5
-
01338-84375-0 Wood screwWood screw
-
01345-83721-0 Шаровое соединениеШаровое соединение
-
1361-83858-0 R.c. Stop Cord 5.9m
For 14 feet or exceeding cableR.c. Stop Cord 5.9m
For 14 feet or exceeding cable -
1-1345-76023-0 Grommet 22-2.5Grommet 22-2.5
-
02332-83314-0 Terminal EyeTerminal Eye
-
02332-83722-0 Ball holderBall holder
-
2361-83880-3 S. r. c. fitting partsS. r. c. fitting parts
-
2-1345-83721-0 Шаровое соединениеШаровое соединение
-
2-10941303-0500 Spring WasherSpring Washer
-
2-11345-83821-0 Holder cableHolder cable
-
2-12910103-6616 BoltBolt
-
2-13361-83830-0 Steering Hook PlateSteering Hook Plate
-
2-14910103-6820 BoltBolt
-
2-15336-06973-0 Clamp Lead WireClamp Lead Wire
-
2-16921503-0612 Stud BoltStud Bolt
-
2-23A1-83722-0 Ball holderBall holder
-
2-3332-83723-0 Cap ball jointCap ball joint
-
2-4332-83724-0 Spring ball jointSpring ball joint
-
2-5332-83725-0 WasherWasher
-
2-6930103-0600 NutNut
-
2-7941303-0600 New partNew part
-
2-8345-83820-0 Cable clip ass'yCable clip ass'y
-
2-9910403-0518 BoltBolt
-
03332-83723-0 Cap ball jointCap ball joint
-
04332-83724-0 Spring ball jointSpring ball joint
-
05332-83725-0 WasherWasher
-
06930103-0600 NutNut
-
07941303-0600 New partNew part
-
08345-83820-0 Cable clip ass'yCable clip ass'y
-
09910-43051-8 BoltBolt
-
10941303-0500 Spring WasherSpring Washer
-
11345-83821-0 Holder cableHolder cable
-
12910103-0616 BoltBolt
-
14361-83830-0 Steering Hook PlateSteering Hook Plate
-
15910103-6820 BoltBolt
-
16941303-0800 Spring WasherSpring Washer
-
17336-06973-0 Clamp Lead WireClamp Lead Wire
-
18910103-0612 New partNew part
-
19361-06930-0 Stop switchStop switch
-
20345-67117-0 New partNew part
-
21910-13051-2 BoltBolt
-
22930103-0500 NutNut
-
23940-13050-0 WasherWasher
