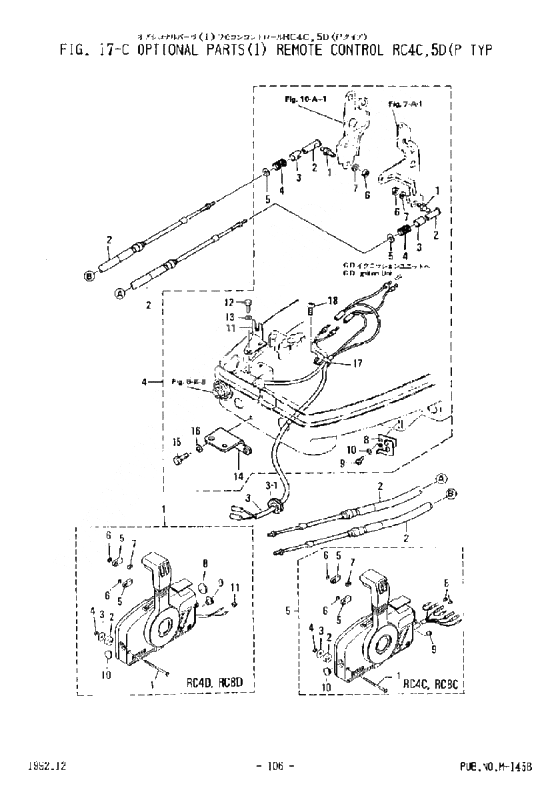

Remote control (rc4c, 5d) для Tohatsu M40C - 2002 года выпуска`
-
№АртикулНазвание
-
00383-84350-2 Single remote control box ass'y (rc8c)
GraySingle remote control box ass'y (rc8c)
Gray -
00361-83880-2 S.r.c. fitting parts ass'yS.r.c. fitting parts ass'y
-
00361-83843-0 R.c. stop cord 3.2m
2-3M For 2-3M R C4D CableR.c. stop cord 3.2m
2-3M For 2-3M R C4D Cable -
00361-83853-0 R.c. stop cord 3.9m
3.5-4.5M For 3.5-4.5M RC4D CableR.c. stop cord 3.9m
3.5-4.5M For 3.5-4.5M RC4D Cable -
00361-83858-0 R.c. Stop Cord 5.9m
5- For 5.0M-RC4D CableR.c. Stop Cord 5.9m
5- For 5.0M-RC4D Cable -
00383-84350-1 Single remoto control box ass'y (rc4c)
BlueSingle remoto control box ass'y (rc4c)
Blue -
013A3-84375-0 Stud BoltStud Bolt
-
01345-83721-0 Шаровое соединениеШаровое соединение
-
01345-76023-0 Grommet 22-2.5
RC4DGrommet 22-2.5
RC4D -
023A3-84374-0 SpacerSpacer
-
02332-83722-0 Ball holderBall holder
-
03353-84371-0 WasherWasher
-
03332-83723-0 Cap ball jointCap ball joint
-
04332-83724-0 Spring ball jointSpring ball joint
-
053A3-83314-0 Terminal EyeTerminal Eye
-
05332-83725-0 WasherWasher
-
06930103-0600 NutNut
-
07941303-0600 New partNew part
-
073A3-84376-0 GrommetGrommet
-
08345-83820-0 Cable clip ass'yCable clip ass'y
-
083A3-76037-0 Plug B Cable TerminalPlug B Cable Terminal
-
09361-84415-0 Grommet BGrommet B
-
09910-43051-8 BoltBolt
-
10361-84414-0 Grommet AGrommet A
-
10941303-0500 Spring WasherSpring Washer
-
11345-83821-0 Holder cableHolder cable
-
12910103-0616 BoltBolt
-
14361-83830-0 Steering Hook PlateSteering Hook Plate
-
15910103-6820 BoltBolt
-
16941303-0800 Spring WasherSpring Washer
-
17336-06973-0 Clamp Lead WireClamp Lead Wire
-
18910103-0612 New partNew part
