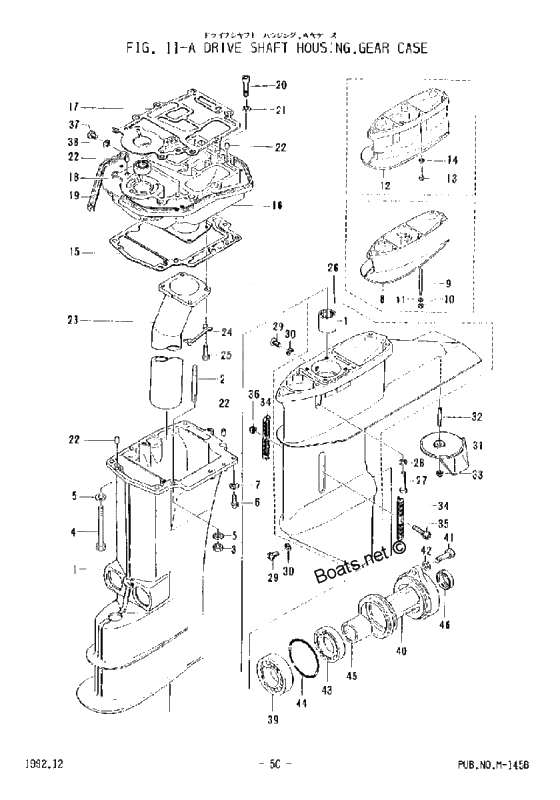

Drive shaft housing, gear case для Tohatsu M40C - 2002 года выпуска`
-
№АртикулНазвание
-
00930103-0800 NutNut
-
009601-0-6007 Ball bearing, 6007Ball bearing, 6007
-
00361-02311-0 Exhaust pipe l.ll.ulExhaust pipe l.ll.ul
-
00940-13080-0 WasherWasher
-
00930403-0400 Nylon NutNylon Nut
-
00345-01303-0 Gasket engine baseGasket engine base
-
00332-60005-0 Oil plugOil plug
-
00345-61020-1 Drive shaftt housing s
BlueDrive shaftt housing s
Blue -
00345-61110-0 Extension housing xl
BlueExtension housing xl
Blue -
00345-60103-0 O-Ring
D3.53-D69.44O-Ring
D3.53-D69.44 -
00345-02314-1 Exhaust pipe for sExhaust pipe for s
-
00910103-0620 BoltBolt
-
00910-63080-8 Water PlugWater Plug
-
00345-01215-0 Oil seal 17-30-8Oil seal 17-30-8
-
00332-60006-0 Gasket (8.1x15.1)Gasket (8.1x15.1)
-
00361-61030-0 Drive shaft housing l
BlueDrive shaft housing l
Blue -
00345-60111-0 New part
D22-D36-9.8MMNew part
D22-D36-9.8MM -
00345-02313-0 Lock plate exhaust pipeLock plate exhaust pipe
-
00940-13060-0 WasherWasher
-
00345-60215-0 Taper roller bearing, 32007Taper roller bearing, 32007
-
00345-67116-0 Seal engine baseSeal engine base
-
00348-60217-0 Trim TabTrim Tab
-
00345S61020-1 Drive shaft housing s
GrayDrive shaft housing s
Gray -
00910-13084-0 BoltBolt
-
00910114-0625 BoltBolt
-
00345-61120-0 Extension housing ll
BlueExtension housing ll
Blue -
00345-60101-1 Housing, Propeller Shaft
BlueHousing, Propeller Shaft
Blue -
00910-23064-0 Bolt, engine baseBolt, engine base
-
00930403-0600 Nylon NutNylon Nut
-
00361S61030-0 Drive shaft housing l
GrayDrive shaft housing l
Gray -
00345-61012-0 Gasket, drive shaft housingGasket, drive shaft housing
-
00361-60000-0 Gear case ass'y
BlueGear case ass'y
Blue -
00941303-0600 New partNew part
-
00345-61111-0 Stud bolt, drive shaft housing sStud bolt, drive shaft housing s
-
00345-60206-0 Water StrainerWater Strainer
-
00345-01301-0 Engine base
BlueEngine base
Blue -
00361S60000-0 Gear case ass'y
GrayGear case ass'y
Gray -
00345-61112-0 Stud bolt bStud bolt b
-
00910114-0830 BoltBolt
-
00345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
00910-13088-5 Bolt a
For S=7 For L=8Bolt a
For S=7 For L=8 -
00920-53043-8 ScrewScrew
-
01345S61110-0 Extension housing ul
GrayExtension housing ul
Gray -
01345S61120-0 Extension housing ll
GrayExtension housing ll
Gray -
01345S61010-1 Housing, Propeller Shaft
GrayHousing, Propeller Shaft
Gray -
01345S01301-0 Engine base
GrayEngine base
Gray -
01345-60211-0 Needle Bearing 22-30-30Needle Bearing 22-30-30
