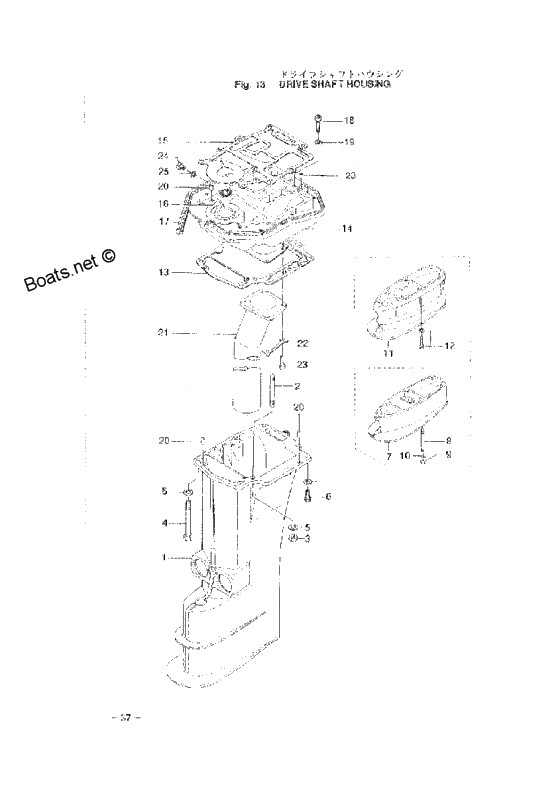

Drive shaft housing для Tohatsu M40C - 2002 года выпуска`
-
№АртикулНазвание
-
1345S61020-1 Drive shaft housing sDrive shaft housing s
-
1361S61030-0 Drive shaft housing lDrive shaft housing l
-
2345-61111-0 Stud bolt, drive shaft housing sStud bolt, drive shaft housing s
-
3930103-0800 NutNut
-
5334-66233-0 Bracket washerBracket washer
-
7345S61110-0 Extension housing ulExtension housing ul
-
8345-61112-0 Stud bolt bStud bolt b
-
10940103-0800 Washer -> 940113-0800Washer -> 940113-0800
-
11345S61110-0 Extension housing ulExtension housing ul
-
13345-61012-0 Gasket, drive shaft housingGasket, drive shaft housing
-
14345S01301-0 Engine baseEngine base
-
15345-01303-0 Gasket engine baseGasket engine base
-
16345-01215-0 Oil seal 17-30-8Oil seal 17-30-8
-
17345-67116-0 Seal engine baseSeal engine base
-
18910203-0640 BoltBolt
-
19941303-0600 New partNew part
-
20345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
21361-02311-0 Exhaust pipe l.ll.ulExhaust pipe l.ll.ul
-
21345-02314-0 Exhaust pipe sExhaust pipe s
-
22345-02313-0 Lock plate exhaust pipeLock plate exhaust pipe
-
23910103-0625 BoltBolt
-
25332-60006-0 Gasket (8.1x15.1)Gasket (8.1x15.1)
