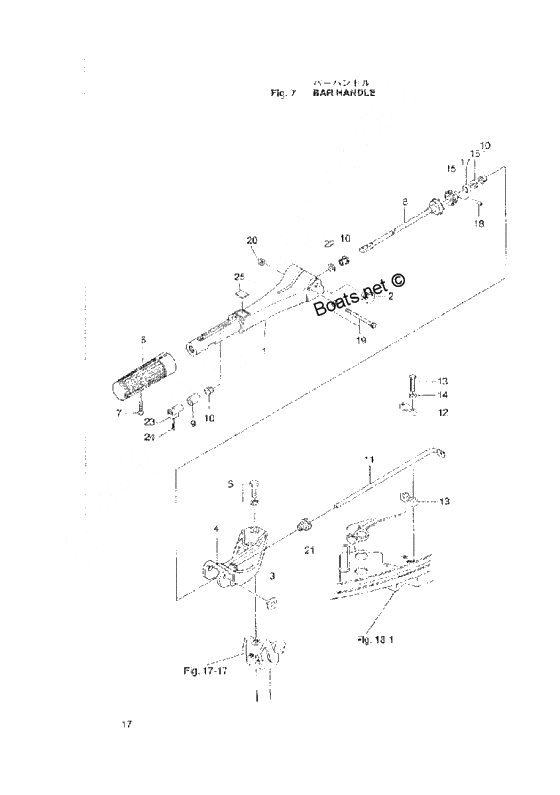

Bar handle для Tohatsu M40C - 2002 года выпуска`
-
№АртикулНазвание
-
00951403-0414 Spring Washer
D4-14MMSpring Washer
D4-14MM -
00346-63201-0 Bolt, handle aBolt, handle a
-
00348-63061-0 Throttle shaft bThrottle shaft b
-
00951-43022-0 Spring PinSpring Pin
-
003A0-63012-0 Grip
With StopperGrip
With Stopper -
00930403-0600 Nylon NutNylon Nut
-
00345-63207-0 Collar, 9.8-12-7.5Collar, 9.8-12-7.5
-
00345-63063-0 Holder handle shaft bHolder handle shaft b
-
00920-83051-8 ScrewScrew
-
920803-0518 ScrewScrew
-
00345-66226-0 Grommet, 17-3Grommet, 17-3
-
00345-63051-0 Handle b
BlueHandle b
Blue -
00940-13060-0 WasherWasher
-
00350-63041-0 Throttle shaft aThrottle shaft a
-
00332-61315-0 Washer
D10.5-D18-1.5MMWasher
D10.5-D18-1.5MM -
00346-63064-0 Universal pinionUniversal pinion
-
00398-63041-0 Ось дросселяОсь дросселя
-
00941403-1000 WasherWasher
-
00910114-0825 BoltBolt
-
00940-13080-0 WasherWasher
-
00398-63011-0 Steering handle
BlueSteering handle
Blue -
00345-63048-0 Rubber Throttle Shaft ARubber Throttle Shaft A
-
00369-72019-0 Label, throttleLabel, throttle
-
00941303-0800 Spring WasherSpring Washer
-
00346-63066-1 Collar, 15.9-17.1-9Collar, 15.9-17.1-9
-
00398S63011-0 Handle a
GrayHandle a
Gray -
00350-63046-0 BushingBushing
-
00398-63053-0 Spacer Throttle ShaftSpacer Throttle Shaft
-
00363-63012-0 Grip
With StopperGrip
With Stopper -
01345S63051-0 Handle b
GrayHandle b
Gray -
1398S63011-0 Handle aHandle a
-
2346-63201-0 Bolt, handle aBolt, handle a
-
3345-63207-0 Collar, 9.8-12-7.5Collar, 9.8-12-7.5
-
4345S63051-0 Handle bHandle b
-
5910103-6825 Stud BoltStud Bolt
-
63A0-63012-1 Grip
with StopperGrip
with Stopper -
7921803-0525 Stud BoltStud Bolt
-
8398-63041-0 Ось дросселяОсь дросселя
-
9345-63048-0 Rubber Throttle Shaft ARubber Throttle Shaft A
-
10350-63046-0 BushingBushing
-
11348-63061-0 Throttle shaft bThrottle shaft b
-
12345-63063-0 Holder handle shaft bHolder handle shaft b
-
14940103-0600 WasherWasher
-
15346-63064-0 Universal pinionUniversal pinion
-
16940103-0800 Washer -> 940113-0800Washer -> 940113-0800
-
17346-63066-1 Collar, 15.9-17.1-9Collar, 15.9-17.1-9
-
18951403-0414 Spring WasherSpring Washer
-
20930403-0600 Nylon NutNylon Nut
-
21345-66226-0 Grommet, 17-3Grommet, 17-3
-
22941403-1000 WasherWasher
-
23398-63053-0 Spacer Throttle ShaftSpacer Throttle Shaft
-
24951403-0310 New partNew part
-
25369-72019-0 Label, throttleLabel, throttle
