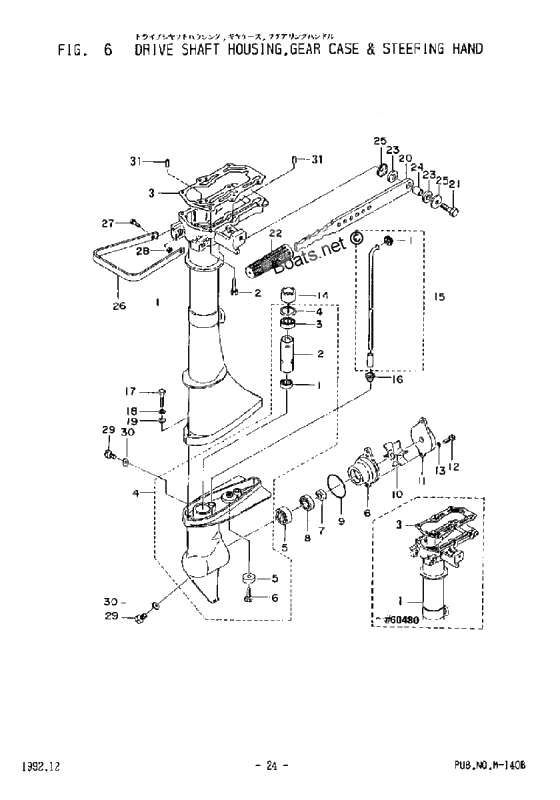

Drive shaft housing, gear case & steering handle для Tohatsu M3.5A - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    309S61020-2 Drive shaft housing s
    Drive shaft housing s
  • 1
    309-61020-0 Drive shaft housing s15"
    -60480
    Drive shaft housing s15"
    -60480
  • 1
    309S61030-2 Deive shaft housing l
    Deive shaft housing l
  • 1
    309-61020-1 Drive shaft housing s15"
    Blue, Not Interchangeable, 60481-81699
    Drive shaft housing s15"
    Blue, Not Interchangeable, 60481-81699
  • 1
    309-65031-0 Water tube grommet, upper
    Water tube grommet, upper
  • 1
    N09-61020-1 Drive shaft housing s15"
    Gray, Not Interchangeable, 81700-
    Drive shaft housing s15"
    Gray, Not Interchangeable, 81700-
  • 1
    9601-0-6000 Ball Bearing
    #6000
    Ball Bearing
    #6000
  • 1
    309-61030-0 Drive shaft housing l20"
    -65080
    Drive shaft housing l20"
    -65080
  • 1
    309-61030-1 Drive shaft housing l20"
    Blue, Only New Parts are Interchangeable with Older Parts, 65081-81699
    Drive shaft housing l20"
    Blue, Only New Parts are Interchangeable with Older Parts, 65081-81699
  • 1
    N09-61030-1 Drive shaft housing l20"
    Gray, Not Interchangeable, 81966-
    Drive shaft housing l20"
    Gray, Not Interchangeable, 81966-
  • 2
    309-64321-1 Spacer, drive shaft bearing
    Spacer, drive shaft bearing
  • 3
    309-61012-1 Gasket drive shaft housing
    Not Interchangeable, 60481-
    Gasket drive shaft housing
    Not Interchangeable, 60481-
  • 3
    9601-0-6001 Ball Bearing
    #6001
    Ball Bearing
    #6001
  • 4
    945-02280-0 C-Ring
    C-Ring
  • 4
    309-60000-1 Gear case assy
    Blue, -81699
    Gear case assy
    Blue, -81699
  • 4
    309S60000-2 Gear case ass'y
    Gray, Not Interchangeable, 81700-
    Gear case ass'y
    Gray, Not Interchangeable, 81700-
  • 4
    345-01111-0 Dowel Pin 6-12
    Dowel Pin 6-12
  • 5
    338-60218-1 Anode
    Anode
  • 5
    9601-0-6300 Ball Bearing
    #6300
    Ball Bearing
    #6300
  • 5
    309S60000-2 Gear case ass'y
    Gear case ass'y
  • 5-1
    9601-0-6000 Ball Bearing
    Ball Bearing
  • 5-2
    309-64321-0 Spacer, drive shaft bearing
    Spacer, drive shaft bearing
  • 5-3
    9601-0-6001 Ball Bearing
    Ball Bearing
  • 5-4
    945002-2800 C-Ring
    C-Ring
  • 5-5
    338-60218-2 New part
    New part
  • 5-6
    910103-0616 Bolt
    Bolt
  • 6
    910103-0616 Bolt
    Bolt
  • 6
    309-65010-0 Water Pump Case
    Water Pump Case
  • 6
    9601-0-6300 Ball Bearing
    Ball Bearing
  • 7
    309-60111-0 Oil Seal 12-24-8
    Oil Seal 12-24-8
  • 7
    309S65010-1 Water Pump Case
    Water Pump Case
  • 8
    309-60111-0 Oil Seal 12-24-8
    Oil Seal 12-24-8
  • 9
    309-65015-0 O-Ring
    O-Ring
  • 10
    309-65021-0 Impeller, water pump
    Impeller, water pump
  • 10
    309-65015-0 O-Ring
    O-Ring
  • 11
    309-60101-0 Head, gear case
    Blue, -81699
    Head, gear case
    Blue, -81699
  • 11
    309-65021-0 Impeller, water pump
    Impeller, water pump
  • 11
    N09-60101-0 Head, gear case
    Gray, Not Interchangeable, 81700-
    Head, gear case
    Gray, Not Interchangeable, 81700-
  • 12
    309S60101-1 Head gear case
    Head gear case
  • 12
    910103-0620 Bolt
    Bolt
  • 13
    940-13060-0 Washer
    Washer
  • 14
    309-60223-0 Oil Seal
    Oil Seal
  • 15
    309-65100-0 Water tube s
    Water tube s
  • 15
    309-65110-0 Water tube l
    Water tube l
  • 15-1
    309-65031-1 Water tube grommet upper
    Water tube grommet upper
  • 16
    309-65032-0 Water Tube Grommet Lower
    Water Tube Grommet Lower
  • 18
    309S63011-0 Рулевой рычаг и кабель
    Рулевой рычаг и кабель
  • 18
    941303-0600 New part
    New part
  • 19
    910103-0830 New part
    New part
  • 20
    309-63012-0 Grip steering handle
    Grip steering handle
  • 20
    309-63011-0 Steering handle
    Blue, -81699
    Steering handle
    Blue, -81699
  • 20
    309S63011-0 Рулевой рычаг и кабель
    Gray, Not Interchangeable, 81700-
    Рулевой рычаг и кабель
    Gray, Not Interchangeable, 81700-
  • 21
    910103-0830 New part
    New part
  • 21
    309-63024-0 Damper rubber steering handle
    Damper rubber steering handle
  • 22
    309-63025-0 Spacer 8.4-12-14.2
    Spacer 8.4-12-14.2
  • 22
    309-63012-0 Grip steering handle
    Grip steering handle
  • 23
    345-67115-0 Washer lower cover rubber mount
    Washer lower cover rubber mount
  • 23
    309-63024-0 Damper rubber steering handle
    Damper rubber steering handle
  • 24
    309S67521-0 Carrying Handle
    Carrying Handle
  • 24
    309-63025-0 Spacer 8.4-12-14.2
    Spacer 8.4-12-14.2
  • 25
    910103-0625 Bolt
    Bolt
  • 25
    345-67114-0 Spacer 8.4-12-17
    Spacer 8.4-12-17
  • 26
    309S67521-0 Carrying Handle
    Gray, Not Interchangeable, 81700-
    Carrying Handle
    Gray, Not Interchangeable, 81700-
  • 26
    930103-0600 Nut
    Nut
  • 26
    309-67521-0 Carrying Handle
    Blue, -81699
    Carrying Handle
    Blue, -81699
  • 27
    910114-0625 Bolt
    Bolt
  • 27
    332-60005-1 Oil plug
    Oil plug
  • 332-60005-2 Oil plug
    Oil plug
  • 28
    332-60006-0 Gasket (8.1x15.1)
    Gasket (8.1x15.1)
  • 28
    930103-0600 Nut
    Nut
  • 29
    332-60005-0 Oil plug
    Oil plug
  • 30
    332-60006-0 Gasket (8.1x15.1)
    Gasket (8.1x15.1)
  • 31
    345-01111-0 Dowel Pin 6-12
    60481-
    Dowel Pin 6-12
    60481-
