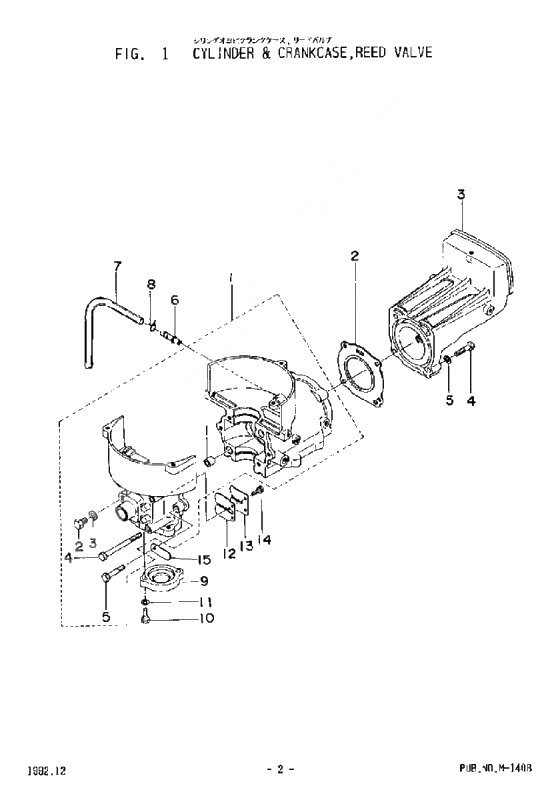

Cylinder & crankcase, reed valve для Tohatsu M3.5A - 2002 года выпуска
-
№АртикулНазвание
-
1-00309-01100-1 Cylinder & crankcase assy
Blue 67131-81699Cylinder & crankcase assy
Blue 67131-81699 -
1-00309-01100-0 Cylinder & crankcase assy
-67130Cylinder & crankcase assy
-67130 -
1-1332-01111-0 Knock, crankcase
D7-D10.16-9.3MMKnock, crankcase
D7-D10.16-9.3MM -
1-2910-61080-8 Plug, crankcasePlug, crankcase
-
1-3332-60006-0 Gasket (8.1x15.1)Gasket (8.1x15.1)
-
1-4910-14066-5 Bolt a, crankcaseBolt a, crankcase
-
1-5910-11063-0 Bolt b, crankcaseBolt b, crankcase
-
2-00309-01005-1 Gasket, Cyl. HeadGasket, Cyl. Head
-
309-01005-2 Gasket, Cyl. HeadGasket, Cyl. Head
-
3-00309-01001-0 Cylinder head
Blue, -81699Cylinder head
Blue, -81699 -
4-00916-14063-0 Bolt, cylinder headBolt, cylinder head
-
5-00940-11060-0 WasherWasher
-
6-00309-01135-0 Drain nippleDrain nipple
-
7-009807-3-0150 Drain pipe
D3-D7-150MMDrain pipe
D3-D7-150MM -
98AB-301000 Drain pipeDrain pipe
-
8-00338-01133-0 ClipClip
-
9-00309-01210-0 Crank case headCrank case head
-
11-00941303-0600 New partNew part
-
12-00309-02111-0 Floato Valve AssyFloato Valve Assy
-
13-00309-02113-0 Стопорный клапанСтопорный клапан
-
14-00921-51741-2 Screw (w/washers), reed valveScrew (w/washers), reed valve
-
15-00309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
