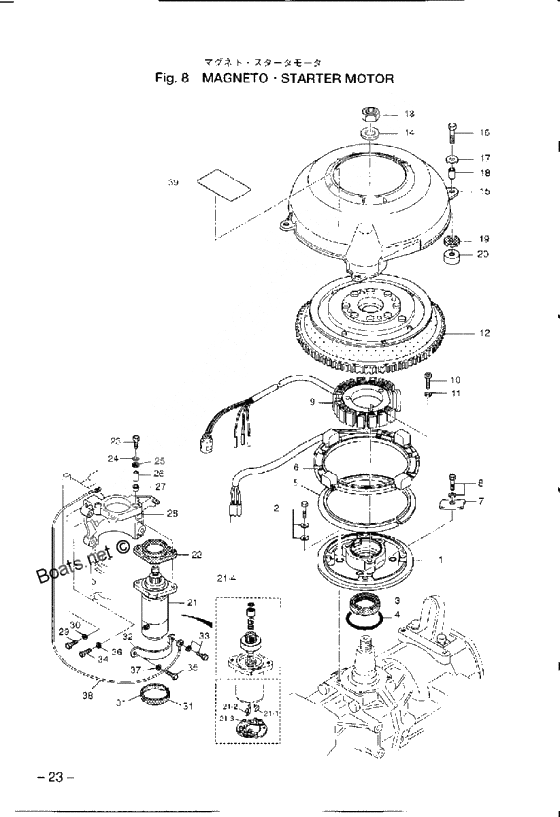

Magneto, starter motor для Tohatsu M140A2 - 2002 года выпуска`
-
№АртикулНазвание
-
13C7-63722-1 Guide PlateGuide Plate
-
2910121-7620 BoltBolt
-
33C7-00122-0 Oil seal, 40-52-6Oil seal, 40-52-6
-
43C7-01403-0 O-RingO-Ring
-
53C7-63728-0 Bushing guide plateBushing guide plate
-
63C7-06130-1 Pulser plate ass'y
120A2 #21577-140A2 #11885-Pulser plate ass'y
120A2 #21577-140A2 #11885- -
73C7-63723-0 Set plate pulser coilSet plate pulser coil
-
8910103-6612 BoltBolt
-
93C7-06123-0 Alternator Ass'yAlternator Ass'y
-
10921503-0628 Stud BoltStud Bolt
-
11941303-0600 New partNew part
-
123C7-06101-1 Flywheel cup
120A2 #21577-140A2 #11885-Flywheel cup
120A2 #21577-140A2 #11885- -
133C7-00132-0 NutNut
-
143C7-00133-0 WasherWasher
-
153C7-06301-0 Cover ring gearCover ring gear
-
16910103-0630 BoltBolt
-
9101E3-0630 BoltBolt
-
173C8-66308-0 New partNew part
-
18353-76079-0 Collar 6.2-9-9.3Collar 6.2-9-9.3
-
193B7-06305-0 Mount Rubber, 9-16-4.3Mount Rubber, 9-16-4.3
-
203C7-06306-0 WasherWasher
-
21353-76010-3 Starter motor
120A2 #21739-140A2 #12174Starter motor
120A2 #21739-140A2 #12174 -
353-76010-4 Starter motorStarter motor
-
21-1353-76012-2 Brush (+)
-102A2 #21739-140A2 #12174-Brush (+)
-102A2 #21739-140A2 #12174- -
21-2353-76013-2 Brush (-)
-102A2 #21739-140A2 #12174-Brush (-)
-102A2 #21739-140A2 #12174- -
21-3353-76017-0 Brush SpringBrush Spring
-
21-4353-76015-0 Pinion Ass'yPinion Ass'y
-
223C7-76005-0 Mount Rubber BMount Rubber B
-
24941303-0800 Spring WasherSpring Washer
-
253B7-63730-0 WasherWasher
-
263C7-76003-0 Spacer 8.4-12-21.5Spacer 8.4-12-21.5
-
273C7-76004-0 Mount Rubber AMount Rubber A
-
283C7B05101-0 Bracket starter motorBracket starter motor
-
29916114-0845 BoltBolt
-
30941322-0800 Spring WasherSpring Washer
-
313C7-76007-1 Rubber Starter Motor
T=3,-3.5Rubber Starter Motor
T=3,-3.5 -
32353-76009-2 Band Starter MotorBand Starter Motor
-
34910114-0845 BoltBolt
-
35910103-0820 BoltBolt
-
37940103-0800 Washer -> 940113-0800Washer -> 940113-0800
-
383C7-76141-0 STARTER CORDSTARTER CORD
-
393C7-72182-2 Caution label(ce-c)Caution label(ce-c)
