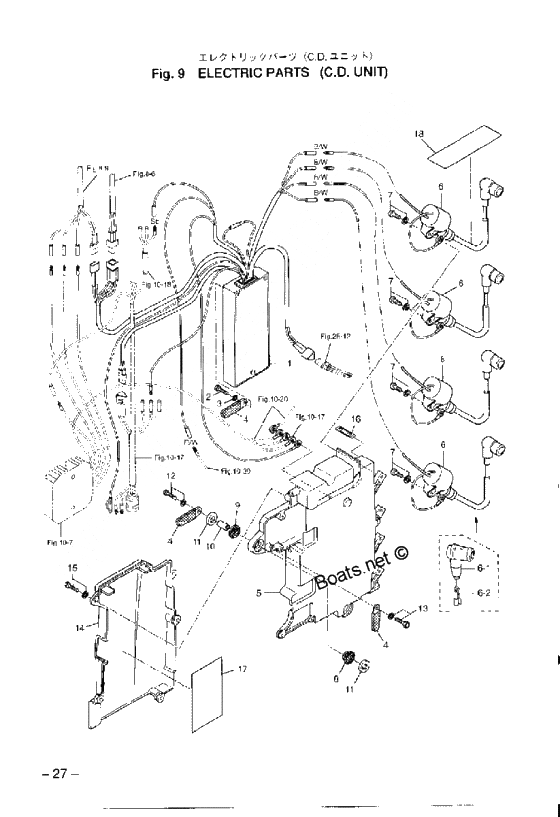

Electric parts (c.d. unit) для Tohatsu M140A2 - 2002 года выпуска`
-
№АртикулНазвание
-
13C7-06160-1 C.D. Unit
120A2 #21756-140A2 #12195C.D. Unit
120A2 #21756-140A2 #12195 -
2910403-0540 BoltBolt
-
3940103-0500 WasherWasher
-
4309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
53C7-06901-1 Electric bracket
120A2 #21739-140A2 #12174Electric bracket
120A2 #21739-140A2 #12174 -
63C7-06040-0 Ignition Coil
OPTIgnition Coil
OPT -
63C7-06050-0 Ignition coil ass'yIgnition coil ass'y
-
6-13B2-06921-0 Plug capPlug cap
-
6-1346-06999-0 Plug cap(registance)Plug cap(registance)
-
6-23B2-06926-0 Terminal plug capTerminal plug cap
-
83B7-06920-0 Mount Rubber, 8.5-14-2.5Mount Rubber, 8.5-14-2.5
-
9346-67113-0 Mount RubberMount Rubber
-
10346-67114-0 Spacer 6.2-9-15.7Spacer 6.2-9-15.7
-
11346-67115-0 WasherWasher
-
12910103-6630 BoltBolt
-
13910103-6612 BoltBolt
-
143C7-06902-2 Cover electric bracket
120A2 #21739-140A2 #12174Cover electric bracket
120A2 #21739-140A2 #12174 -
16353-76213-0 Fuse(20ah)Fuse(20ah)
-
173C7-72028-0 Label wiring diagramLabel wiring diagram
-
183C8-72181-0 Caution labelCaution label
