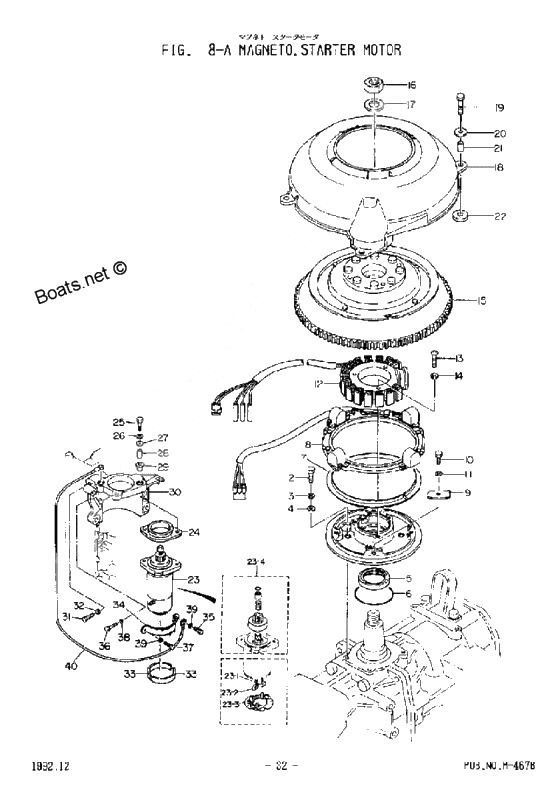

Magneto, starter motor для Tohatsu M140A - 2002 года выпуска`
-
№АртикулНазвание
-
00910103-6612 Bolt
NS120A,140ABolt
NS120A,140A -
003C7-76005-0 Mount Rubber B
NS120A,140AMount Rubber B
NS120A,140A -
003C7-63728-0 Bushing guide plate
NS120A,140ABushing guide plate
NS120A,140A -
00353-76079-0 Collar 6.2-9-9.3
NS120A,140ACollar 6.2-9-9.3
NS120A,140A -
003C7-76007-0 Rubber Starter Motor
NS120A,140ARubber Starter Motor
NS120A,140A -
003C7-63722-1 Guide Plate
NS120A,140AGuide Plate
NS120A,140A -
003C7-06101-0 Flywheel cup
NS120A,140AFlywheel cup
NS120A,140A -
00910-13084-0 Bolt
NS120A,140ABolt
NS120A,140A -
003C7-06130-0 Pulser coil ass'y
NS120A,140APulser coil ass'y
NS120A,140A -
003B7-06305-0 Mount Rubber, 9-16-4.3
NS120A,140AMount Rubber, 9-16-4.3
NS120A,140A -
00353-76009-2 Band Starter Motor
NS120A,140ABand Starter Motor
NS120A,140A -
00910121-0620 Bolt
NS120A,140ABolt
NS120A,140A -
003C7-00132-0 Nut
NS120A,140ANut
NS120A,140A -
00941303-0800 Spring Washer
NS120A,140ASpring Washer
NS120A,140A -
003C7-63723-0 Set plate pulser coil
NS120A,140ASet plate pulser coil
NS120A,140A -
00353-76010-1 Starter Motor Ass'y
NS120A,140AStarter Motor Ass'y
NS120A,140A -
00916-1B084-5 Bolt
NS120A,140ABolt
NS120A,140A -
00941-3U060-0 Spring Washer
NS120A,140ASpring Washer
NS120A,140A -
003C7-00133-0 Washer
NS120A,140AWasher
NS120A,140A -
003C7-76003-0 Spacer 8.4-12-21.5
NS120A,140ASpacer 8.4-12-21.5
NS120A,140A -
00910121-0612 Bolt
NS120A,140ABolt
NS120A,140A -
00910103-6820 Bolt
NS120A,140ABolt
NS120A,140A -
00940-1D060-0 Washer
NS120A,140AWasher
NS120A,140A -
003C7-06301-0 Cover ring gear
NS120A,140ACover ring gear
NS120A,140A -
003C7-76004-0 Mount Rubber A
NS120A,140AMount Rubber A
NS120A,140A -
00941303-0600 New part
NS120A,140ANew part
NS120A,140A -
003C7-00122-0 Oil seal, 40-52-6
NS120A,140AOil seal, 40-52-6
NS120A,140A -
00940-13080-0 Washer
NS120A,140AWasher
NS120A,140A -
00910114-0625 Bolt
NS120A,140ABolt
NS120A,140A -
003C7-05101-0 Bracket, Starter Motor
NS120A,140ABracket, Starter Motor
NS120A,140A -
003C7-06123-0 Alternator Ass'y
NS120A,140AAlternator Ass'y
NS120A,140A -
003C7-01403-0 O-Ring
NS120A,140AO-Ring
NS120A,140A -
003C7-76141-0 STARTER CORD
NS120A,140ASTARTER CORD
NS120A,140A -
00332-66308-0 Washer, fuel tank
NS120A,140AWasher, fuel tank
NS120A,140A -
00941322-0800 Spring Washer
NS120A,140ASpring Washer
NS120A,140A -
01353-76012-1 Brush (+)
NS120A,140ABrush (+)
NS120A,140A -
02353-76013-1 Brush (-)
NS120A,140ABrush (-)
NS120A,140A -
04353-76015-0 Pinion Ass'y
NS120A,140APinion Ass'y
NS120A,140A
