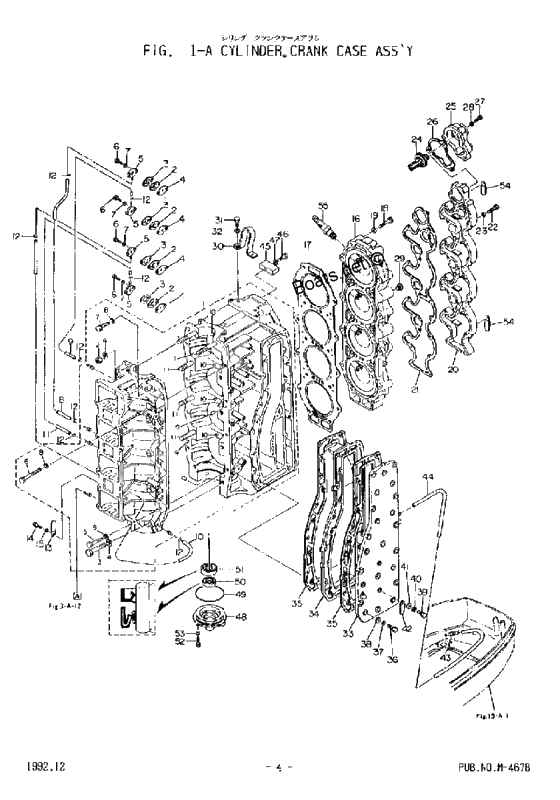

Cylinder, crank case ass'y для Tohatsu M140A - 2002 года выпуска`
-
№АртикулНазвание
-
00910-1D083-5 Bolt
NS120A,140ABolt
NS120A,140A -
00910121-0612 Bolt
NS120A,140ABolt
NS120A,140A -
009701-0-1016 Spark plug ngk bp8hs-10
NS120A,140A-NGK,BR8HS-10Spark plug ngk bp8hs-10
NS120A,140A-NGK,BR8HS-10 -
9701-0-1009 Spark plug ngk bp8hs-10Spark plug ngk bp8hs-10
-
003C7-01513-0 Hanger
NS120A,140AHanger
NS120A,140A -
009807-3-0220 Fuel pipe 3mm (1 ea.=1 meter)
NS120A,140AFuel pipe 3mm (1 ea.=1 meter)
NS120A,140A -
98AB-301000 Fuel pipe 3mm (1 ea.=1 meter)Fuel pipe 3mm (1 ea.=1 meter)
-
003B7-01291-0 Head lower, crank case
NS120A,140AHead lower, crank case
NS120A,140A -
00941-3U060-0 Spring Washer
NS120A,140ASpring Washer
NS120A,140A -
00940121-0800 Washer
NS120A,140AWasher
NS120A,140A -
00941303-0600 New part
NS120A,140ANew part
NS120A,140A -
00910114-0820 Bolt
NS120A,140ABolt
NS120A,140A -
009807-3-0320 Fuel pipe 3mm (1 ea.=1 meter)
NS120A,140AFuel pipe 3mm (1 ea.=1 meter)
NS120A,140A -
98AB-301000 Fuel pipe 3mm (1 ea.=1 meter)Fuel pipe 3mm (1 ea.=1 meter)
-
00171-00053-0 O-Ring
NS120A,140AO-Ring
NS120A,140A -
003C7-01030-0 New part
NS120A,140ANew part
NS120A,140A -
003C7-01151-0 Check valve b
NS120A,140ACheck valve b
NS120A,140A -
00940-1D060-0 Washer
NS120A,140AWasher
NS120A,140A -
003C7-01002-0 Cylinder head
NS120A,140ACylinder head
NS120A,140A -
00941322-0800 Spring Washer
NS120A,140ASpring Washer
NS120A,140A -
009807-3-0410 Fuel pipe 3mm (1 ea.=1 meter)
NS120A,140AFuel pipe 3mm (1 ea.=1 meter)
NS120A,140A -
98AB-301000 Fuel pipe 3mm (1 ea.=1 meter)Fuel pipe 3mm (1 ea.=1 meter)
-
003C7-01215-0 Oil Seal, 19.6-35-10
NS120A,140AOil Seal, 19.6-35-10
NS120A,140A -
003B7-01031-0 Cap, thermostat
NS120A,140ACap, thermostat
NS120A,140A -
003C7-01100-2 Cylinder, crank case ass'y
NS120A,140ACylinder, crank case ass'y
NS120A,140A -
003C7-01153-0 Gasket a, check valve
NS120A,140AGasket a, check valve
NS120A,140A -
00353-01138-0 Water Nipple
NS120A,140AWater Nipple
NS120A,140A -
003C7-01005-0 Gasket, Cyl. Head
NS120A,140AGasket, Cyl. Head
NS120A,140A -
003C7-02300-0 Exhaust cover, outer
NS120A,140AExhaust cover, outer
NS120A,140A -
009807-3-0210 Lubrication pipe d
NS120A,140ALubrication pipe d
NS120A,140A -
003B7-00121-0 Oil seal, 35-58-9
NS120A,140AOil seal, 35-58-9
NS120A,140A -
00353-01032-0 Прокладка крышки термостата
NS120A,140AПрокладка крышки термостата
NS120A,140A -
003C7-01154-0 Gasket b, check valve
NS120A,140AGasket b, check valve
NS120A,140A -
009810-5-0480 Pipe, water nipple
NS120A,140APipe, water nipple
NS120A,140A -
00916-1F086-0 Bolt
NS120A,140ABolt
NS120A,140A -
003C7-02302-0 Exhaust cover, inner
NS120A,140AExhaust cover, inner
NS120A,140A -
00338-01133-0 Clip
NS120A,140AClip
NS120A,140A -
00910103-0620 Bolt
NS120A,140ABolt
NS120A,140A -
00910103-1045 New part
NS120A,140ANew part
NS120A,140A -
00353-01152-0 Cap,check valve
NS120A,140ACap,check valve
NS120A,140A -
003B7-60218-0 Anode
NS120A,140AAnode
NS120A,140A -
003C7-01021-0 Cover, Cylinder Head
NS120A,140ACover, Cylinder Head
NS120A,140A -
003C7-02305-0 Gasket, exhaust cover
NS120A,140AGasket, exhaust cover
NS120A,140A -
00309-06972-0 Clamp,6.5-47.5P
NS120A,140AClamp,6.5-47.5P
NS120A,140A -
009701-0-1009 New part
NS120A,140A-NGK,B8HS-10New part
NS120A,140A-NGK,B8HS-10 -
003B7-01046-0 Plug
NS120A,140APlug
NS120A,140A -
00940-13050-0 Washer
NS120A,140AWasher
NS120A,140A -
00940-13060-0 Washer
NS120A,140AWasher
NS120A,140A -
003C7-01024-0 Gasket, head cover
NS120A,140AGasket, head cover
NS120A,140A -
01915324-1065 Stud Bolt
NS120A,140AStud Bolt
NS120A,140A -
02930121-1000 Nut
NS120A,140ANut
NS120A,140A -
03916-1E086-5 Bolt
NS120A,140ABolt
NS120A,140A -
043B7-01116-0 Washer
NS120A,140AWasher
NS120A,140A -
05916124-0850 Bolt
NS120A,140ABolt
NS120A,140A -
06916-1E086-5 Bolt
NS120A,140ABolt
NS120A,140A -
07916124-0840 Bolt
NS120A,140ABolt
NS120A,140A -
08345-01015-0 Washer
NS120A,140AWasher
NS120A,140A -
09345-01111-0 Dowel Pin 6-12
NS120A,140ADowel Pin 6-12
NS120A,140A -
10345-00117-0 Dowel Pin
NS120A,140ADowel Pin
NS120A,140A -
11915324-1055 Stud Bolt
NS120A,140AStud Bolt
NS120A,140A
