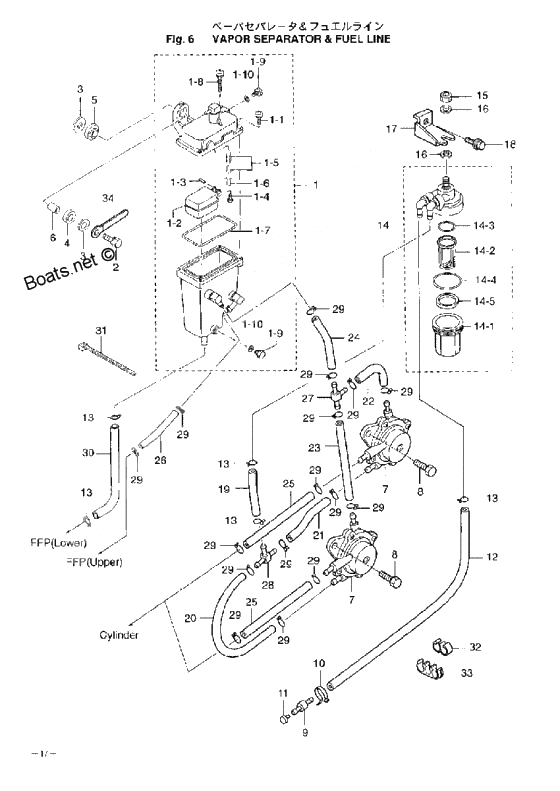

Vapor separator & fuel line для Tohatsu M115A2 - 2002 года выпуска`
-
№АртикулНазвание
-
13T5-10150-1 Vapor separator assyVapor separator assy
-
1-1922531-6414 Stud BoltStud Bolt
-
1-10336-03293-0 O-RingO-Ring
-
1-23T5-03230-0 Float, Vapor SeparaterFloat, Vapor Separater
-
1-33F3-03232-0 Arm Pin FloatArm Pin Float
-
1-4921503-0408 Stud BoltStud Bolt
-
1-53R3-03239-0 Floato Valve AssyFloato Valve Assy
-
1-6344-03244-0 ClipClip
-
1-73T5-03235-0 O-RingO-Ring
-
1-9345-03292-0 Drain ScrewDrain Screw
-
2910103-6630 BoltBolt
-
3346-67115-0 WasherWasher
-
4346-67113-0 Mount RubberMount Rubber
-
53B7-06920-0 Mount Rubber, 8.5-14-2.5Mount Rubber, 8.5-14-2.5
-
6346-67114-0 Spacer 6.2-9-15.7Spacer 6.2-9-15.7
-
73T1-04000-0 Fuel pumpFuel pump
-
93T1-60018-0 Fuel hose nippleFuel hose nipple
-
103T5-84398-0 Band Lead Wire 104Band Lead Wire 104
-
113T1-03813-0 Cap fuel hose nippleCap fuel hose nipple
-
133C7-02215-0 ClipClip
-
143T1-02230-0 Fuel filter assy.Fuel filter assy.
-
14-13B7-02237-0 CupCup
-
14-23B7-02234-0 FilterFilter
-
14-33B7-02236-0 O???? bO???? b
-
14-43B7-02235-0 O-Ring AO-Ring A
-
14-53T5-02229-0 Float, Fuel FilterFloat, Fuel Filter
-
173T1-02239-0 Filter plateFilter plate
-
18910103-6614 BoltBolt
-
27394-70013-0 Pipu Joint T-type
V.S.T. - Fuel PumpPipu Joint T-type
V.S.T. - Fuel Pump -
283C7-02092-0 Соединение трубки
Fuel Filter - Fuel PumpСоединение трубки
Fuel Filter - Fuel Pump -
29338-02215-0 ClipClip
-
323T1-06915-0 ClampClamp
-
333U1-06915-0 ClampClamp
-
34309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
