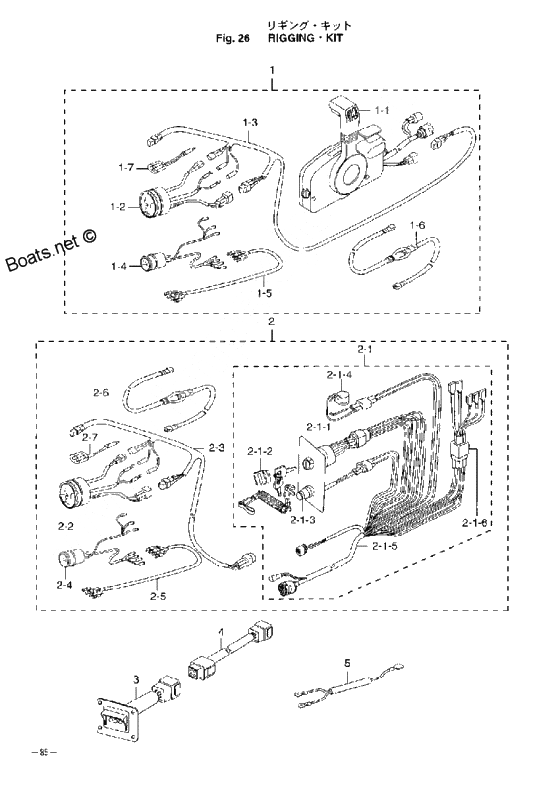

Rigging - kit для Tohatsu M115A2 - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    3Y7Q84550-3 Pre-rig remote control box side mount toh (40-115 (amb)
    Unique
    Pre-rig remote control box side mount toh (40-115 (amb)
    Unique
  • 1-1
    3T5Q84500-1 Rc box rc5f (md40b/50b md70b/90b/115) tldi amb
    Rc box rc5f (md40b/50b md70b/90b/115) tldi amb
  • 3GFQ84500-0 Rc box rc5f (md40b/50b md70b/90b/115) tldi amb
    Rc box rc5f (md40b/50b md70b/90b/115) tldi amb
  • 1-2
    3Z5-72640-1 Tachometer - nla
    Tachometer - nla
  • 1-3
    3T5-72537-0 Lead wire, meter
    Lead wire, meter
  • 1-4
    3E0-72571-0 Trim meter ass'y
    Trim meter ass'y
  • 1-5
    3F3-72573-1 Extension cord trim sender
    Extension cord trim sender
  • 1-6
    3B7-70200-3 New part
    New part
  • 1-7
    353-72548-0 Assist Cord(black)
    Assist Cord(black)
  • 2
    3Y7Q84550-5 Pre-rig remote control box side mount toh (40-115 (amb)
    Pre-rig remote control box side mount toh (40-115 (amb)
  • 3Y7Q84550-3 Pre-rig remote control box side mount toh (40-115 (amb)
    Pre-rig remote control box side mount toh (40-115 (amb)
  • 2-1
    3Y9-84560-1 Rigging control cord (osprey single binnacle)
    Rigging control cord (osprey single binnacle)
  • 2-1-1
    3Y9-76020-0 Main swich ass'y
    Main swich ass'y
  • 2-1-2
    353-76205-1 Cover Main Switch Key
    Cover Main Switch Key
  • 2-1-3
    3Y9-06830-0 Stop switch ass'y
    Stop switch ass'y
  • 2-1-4
    3Y9-76171-0 Overheat buzzer
    Overheat buzzer
  • 2-1-5
    3Y9-76115-0 Cord ass'y
    Cord ass'y
  • 2-1-6
    3Y7-76119-1 Harness assy 2.0m (6.6ft)
    , L=2000
    Harness assy 2.0m (6.6ft)
    , L=2000
  • 3
    3Y9-76251-0 Lamp Panel Ass'y
    Lamp Panel Ass'y
  • 4
    3T5-71042-0 Extension Cord
    L=1000
    Extension Cord
    L=1000
  • 5
    3Y9-76049-0 Lead wire (one way diode for dual binnacle)
    for Twing Engines (PTT), L=200
    Lead wire (one way diode for dual binnacle)
    for Twing Engines (PTT), L=200
