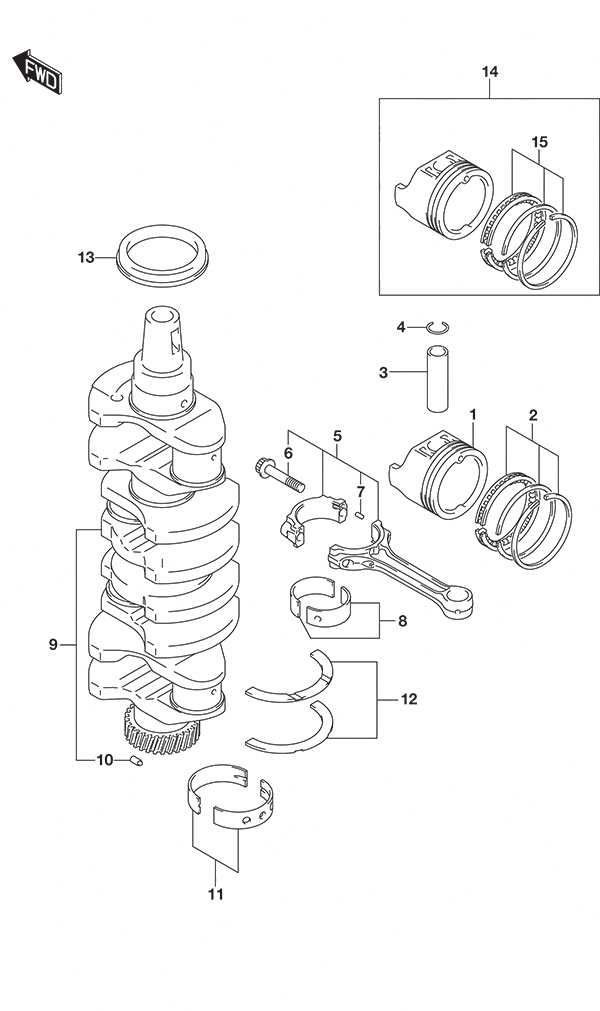

Fig. 116 - Crankshaft для Suzuki DF 115A - 2015 года выпуска`
-
№АртикулНазвание
-
112111-92J00-000 PistonPiston
-
212140-92J10-000 Piston Ring SetPiston Ring Set
-
312151-86FA0-000 Piston PinPiston Pin
-
409381-21002-000 Piston CirclipPiston Circlip
-
512160-92J10-000 Connecting Rod AssemblyConnecting Rod Assembly
-
612163-35F00-000 • Connecting Rod Bolt• Connecting Rod Bolt
-
704221-04089-000 • Pin (4x8)• Pin (4x8)
-
8-112100-92841-0A0 Conn Rod Bearing Set (Green)Conn Rod Bearing Set (Green)
-
8-212100-92840-025 Conn Rod Bearing Set (US:0.25)
OptionalConn Rod Bearing Set (US:0.25)
Optional -
912220-92J00-000 Crankshaft AssemblyCrankshaft Assembly
-
1009202-05027-000 • Pin (5x8.8)• Pin (5x8.8)
-
11-112340-85FB3-0A0 Crankshaft Bearing Set (Green)Crankshaft Bearing Set (Green)
-
11-212340-85FB3-0B0 Crankshaft Bearing Set (Black)Crankshaft Bearing Set (Black)
-
11-312340-85FB3-0C0 Crankshaft Bearing Set (NON)Crankshaft Bearing Set (NON)
-
11-412340-85FB3-0D0 Crankshaft Bearing Set (Yellow)Crankshaft Bearing Set (Yellow)
-
11-512340-85FB3-0E0 Crankshaft Bearing Set (Blue)Crankshaft Bearing Set (Blue)
-
11-612300-85854-0AA Crankshaft Bearing Set (Red/Green) (US:0.25)
OptionalCrankshaft Bearing Set (Red/Green) (US:0.25)
Optional -
11-712300-85854-0BA Crankshaft Bearing Set (Red/Black) (US:0.25)
OptionalCrankshaft Bearing Set (Red/Black) (US:0.25)
Optional -
11-812300-85854-0CA Crankshaft Bearing Set (Red) (US:0.25)
OptionalCrankshaft Bearing Set (Red) (US:0.25)
Optional -
11-912300-85854-0DA Crankshaft Bearing Set (Red/Yellow) (US:0.25) (NLA)
OptionalCrankshaft Bearing Set (Red/Yellow) (US:0.25) (NLA)
Optional -
11-1012300-85854-0EA Crankshaft Bearing Set (Red/Blue) (US:0.25) (NLA)
OptionalCrankshaft Bearing Set (Red/Blue) (US:0.25) (NLA)
Optional -
12-112300-85830-000 Crank Thrust Bearing SetCrank Thrust Bearing Set
-
12-212300-85830-012 Crank Thrust Bearing Set (OS:0.12)
OptionalCrank Thrust Bearing Set (OS:0.12)
Optional -
1309283-52004-000 Oil Seal (52x70x10)Oil Seal (52x70x10)
-
1412100-92J01-050 Piston & Ring Set (OS:0.50)
OptionalPiston & Ring Set (OS:0.50)
Optional -
1512140-92J10-050 • Piston Ring Set (OS:0.50)
Optional• Piston Ring Set (OS:0.50)
Optional
