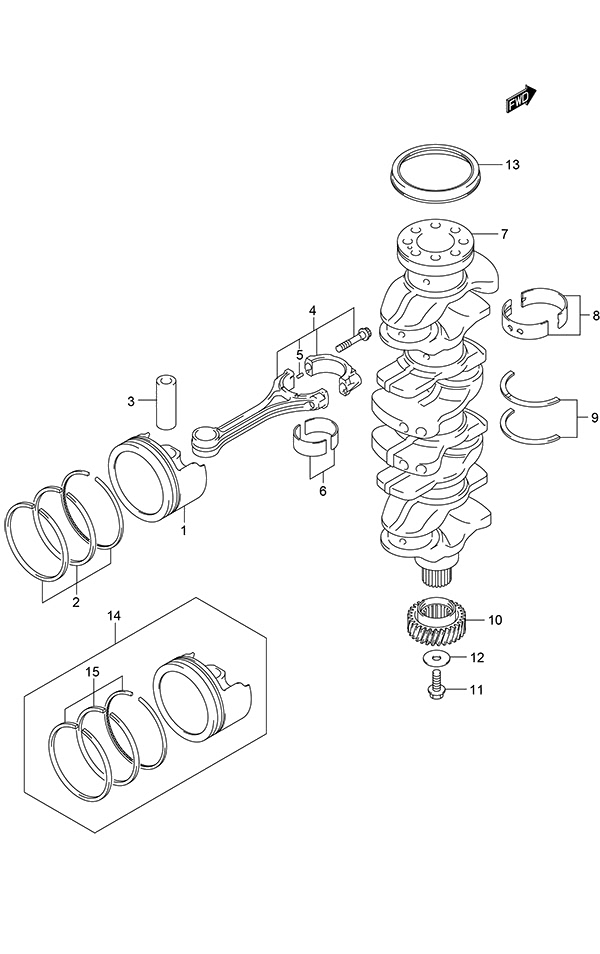

Fig. 10 - Crankshaft для Suzuki DF 175 - 2014 года выпуска`
-
№АртикулНазвание
-
112111-96J01-0B0 PistonPiston
-
212140-96J00-000 Piston Ring SetPiston Ring Set
-
312151-96J00-000 Piston PinPiston Pin
-
412160-96J10-000 Connecting Rod AssemblyConnecting Rod Assembly
-
504221-04089-000 • Pin (4x8)• Pin (4x8)
-
6-112100-96811-0A0 Conrod Bearing Set (Green)Conrod Bearing Set (Green)
-
6-212100-96811-025 Conrod Bearing Set (Red) (US:0.25)
OptionalConrod Bearing Set (Red) (US:0.25)
Optional -
712221-96J10-000 CrankshaftCrankshaft
-
8-112340-96J01-0B0 Crankshaft Bearing Set (Black)Crankshaft Bearing Set (Black)
-
8-212340-96J01-0C0 Crankshaft Bearing Set (NON)Crankshaft Bearing Set (NON)
-
8-312340-96J01-0D0 Crankshaft Bearing Set (Yellow)Crankshaft Bearing Set (Yellow)
-
8-412340-96J01-0E0 Crankshaft Bearing Set (Blue)Crankshaft Bearing Set (Blue)
-
8-612300-96811-0BA Crankshaft Bearing Set (Red/Black) (NLA)
OPT: US:0.25Crankshaft Bearing Set (Red/Black) (NLA)
OPT: US:0.25 -
8-712300-96811-0CA Crankshaft Bearing Set (Red)
OPT: US:0.25Crankshaft Bearing Set (Red)
OPT: US:0.25 -
8-812300-96811-0DA Crankshaft Bearing Set (Red/Yellow)
OPT: US:0.25Crankshaft Bearing Set (Red/Yellow)
OPT: US:0.25 -
8-912300-96811-0EA Crankshaft Bearing Set (Red/Blue) (NLA)
OPT: US:0.25Crankshaft Bearing Set (Red/Blue) (NLA)
OPT: US:0.25 -
8-1012300-96811-0FA Crankshaft Bearing Set (Red/Pink)
OPT: US:0.25Crankshaft Bearing Set (Red/Pink)
OPT: US:0.25 -
9-112300-85830-000 Crank Thrust Bearing SetCrank Thrust Bearing Set
-
9-212300-85830-012 Crank Thrust Bearing Set (OS:0.12)
OptionalCrank Thrust Bearing Set (OS:0.12)
Optional -
1012242-96J00-000 Drive GearDrive Gear
-
1109103-10229-000 Crankshaft BoltCrankshaft Bolt
-
1209160-10120-000 Washer (10x42x3)Washer (10x42x3)
-
1309283-91001-000 Crankshaft Oil SealCrankshaft Oil Seal
-
1412100-96J01-050 Piston Set (OS:0.50)
OptionalPiston Set (OS:0.50)
Optional -
1512140-96J00-050 • Piston Ring Set (OS:0.50)
Optional• Piston Ring Set (OS:0.50)
Optional
