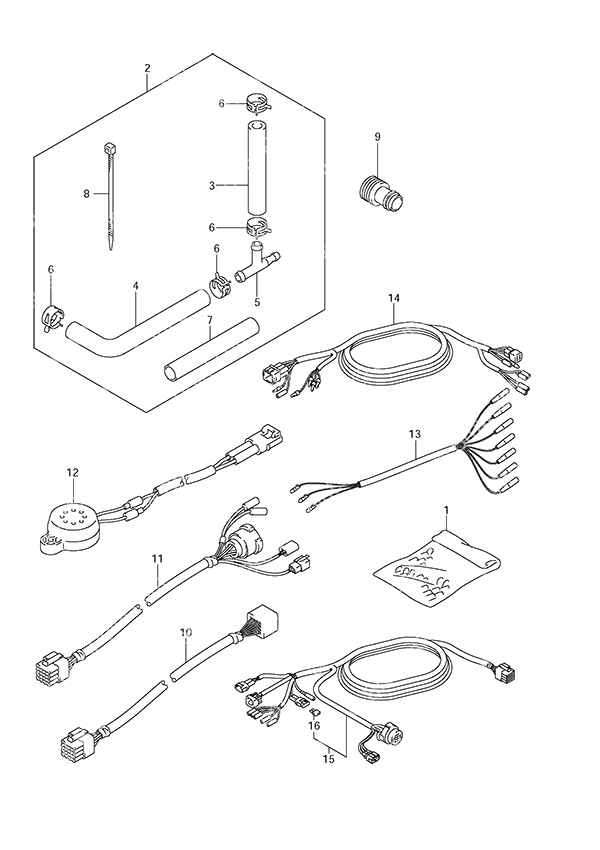

Fig. 47 - Opt: Harness для Suzuki DF 140A - 2013 года выпуска`
-
№АртикулНазвание
-
136990-87D00-000 Terminal & Sleeve SetTerminal & Sleeve Set
-
234660-90J04-000 Water Pressure Gauge Install KitWater Pressure Gauge Install Kit
-
309352-50006-600 • Hose (5x9x600)
L:600->160• Hose (5x9x600)
L:600->160 -
409352-50006-600 • Hose (5x9x600)
L:600->210• Hose (5x9x600)
L:600->210 -
509367-06006-000 • 3 Way• 3 Way
-
609401-08413-000 • Clip• Clip
-
718498-99EA0-000 • Protector (L:80) (NLA)• Protector (L:80) (NLA)
-
809407-25402-000 • Clamp (L:248)• Clamp (L:248)
-
917917-87L00-000 Water Flush ConnectorWater Flush Connector
-
10-136620-93J11-000 6 ft. Wire Harness Extension
L:20006 ft. Wire Harness Extension
L:2000 -
10-236620-93J41-000 10 ft. Wire Harness Extension
L:300010 ft. Wire Harness Extension
L:3000 -
1136620-93J30-000 DF Wire Harness Adapter
L:2000DF Wire Harness Adapter
L:2000 -
1238500-93J00-000 Warning BuzzerWarning Buzzer
-
1336630-92E00-000 Instrument Wire AssemblyInstrument Wire Assembly
-
1436660-94480-000 Trim Wire Harness (NLA)Trim Wire Harness (NLA)
-
15-136620-93J04-000 21 ft. Main Wiring Harness
L:500021 ft. Main Wiring Harness
L:5000 -
15-236620-93J54-000 16 ft. Main Wiring Harness
L:350016 ft. Main Wiring Harness
L:3500 -
15-336620-93J64-000 26 ft. Main Wiring Harness
L:650026 ft. Main Wiring Harness
L:6500 -
1609481-10501-000 • 10 Amp Fuse• 10 Amp Fuse
