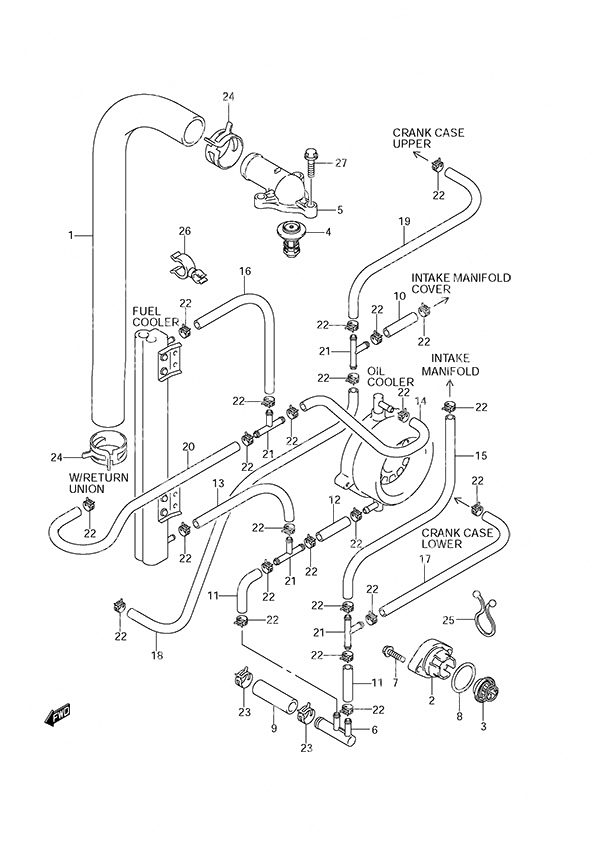

Fig. 14 - Thermostat для Suzuki DF 140 - 2012 года выпуска`
-
№АртикулНазвание
-
111196-90J00-000 Water Return HoseWater Return Hose
-
217611-90J00-000 Water Pressure Valve CoverWater Pressure Valve Cover
-
317660-90J00-000 Water Pressure ValveWater Pressure Valve
-
4-117670-90J01-000 Thermostat (60c)
StandardThermostat (60c)
Standard -
4-217670-90J11-000 Thermostat (71c)
OptionalThermostat (71c)
Optional -
517681-90J02-000 Thermostat CoverThermostat Cover
-
617711-90J00-000 Water Hose 3 WayWater Hose 3 Way
-
709116-06121-000 Bolt (6x25)Bolt (6x25)
-
809280-26006-000 O-RingO-Ring
-
909352-11153-600 Hose (11x15x600)
Holder to 3 Way
L:600->50Hose (11x15x600)
Holder to 3 Way
L:600->50 -
1009352-50006-600 Hose (5x9x600)
INMF Cover to 3 Way
L:600->50Hose (5x9x600)
INMF Cover to 3 Way
L:600->50 -
1109352-50006-600 Hose (5x9x600)
3 Way to 3 Way
L:600->70Hose (5x9x600)
3 Way to 3 Way
L:600->70 -
1209352-50006-600 Hose (5x9x600)
3 Way to Oil Cooler
L:600->50Hose (5x9x600)
3 Way to Oil Cooler
L:600->50 -
1309352-50006-600 Hose (5x9x600)
3 Way to Fuel Cooler
L:600->160Hose (5x9x600)
3 Way to Fuel Cooler
L:600->160 -
1409352-50006-600 Hose (5x9x600)
Oil Cooler to 3 Way
L:600->160Hose (5x9x600)
Oil Cooler to 3 Way
L:600->160 -
1509352-50006-600 Hose (5x9x600)
3 Way to INMF
L:600->200Hose (5x9x600)
3 Way to INMF
L:600->200 -
1609352-50006-600 Hose (5x9x600)
Fuel Cooler to 3 Way
L:600->230Hose (5x9x600)
Fuel Cooler to 3 Way
L:600->230 -
1709352-50006-600 Hose (5x9x600)
3 Way to CRKC Lower
L:600->370Hose (5x9x600)
3 Way to CRKC Lower
L:600->370 -
1809352-50006-600 Hose (5x9x600)
3 Way to Indicator
L:600->370Hose (5x9x600)
3 Way to Indicator
L:600->370 -
1909352-50006-600 Hose (5x9x600)
CRKC Upper to 3 Way
L:600->450Hose (5x9x600)
CRKC Upper to 3 Way
L:600->450 -
2009352-50006-600 Hose (5x9x600)
3 Way to Holder
L:600->480Hose (5x9x600)
3 Way to Holder
L:600->480 -
2109367-06002-000 3 Way3 Way
-
2209401-08413-000 ClipClip
-
2309401-14409-000 ClipClip
-
2409401-31407-000 ClipClip
-
2509408-00024-000 ClampClamp
-
2609408-00069-000 Clamp (NLA)Clamp (NLA)
-
2701550-06257-000 BoltBolt
