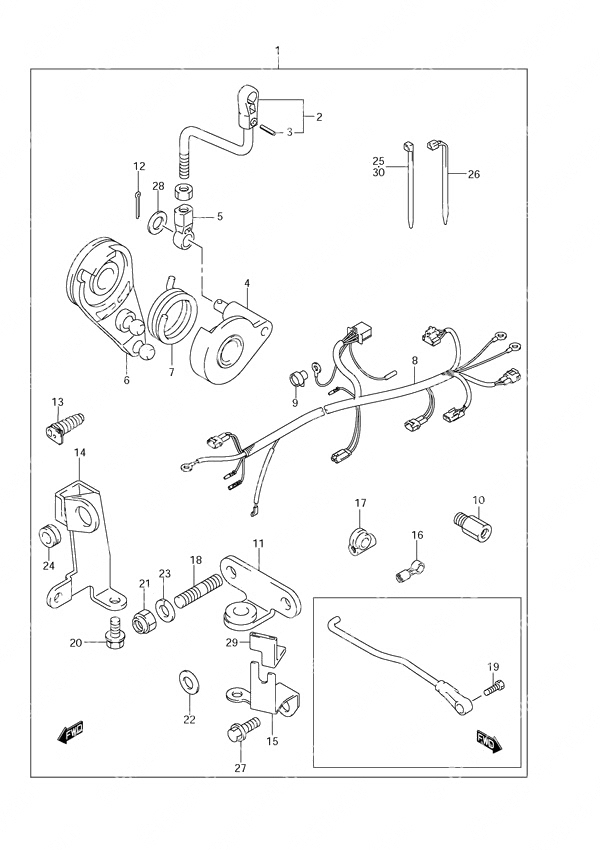

Fig. 70 - Opt: Remote Control Parts для Suzuki DF 15 - 2006 года выпуска`
-
№АртикулНазвание
-
167130-94J11-000 Remote Control Parts KitRemote Control Parts Kit
-
213510-93E01-000 • Throttle Rod Assembly• Throttle Rod Assembly
-
309205-02006-000 •• Spring Pin (2x12)•• Spring Pin (2x12)
-
419121-94J10-000 • Throttle Control Lever• Throttle Control Lever
-
519131-94J00-000 • Throttle Connector• Throttle Connector
-
619148-93E10-000 • Throttle Drum• Throttle Drum
-
719185-93E00-000 • Throttle Lever Spring• Throttle Lever Spring
-
836610-94J20-000 • Wire Harness Assembly• Wire Harness Assembly
-
936618-43410-000 •• Oil Pressure Switch Cap (NLA)•• Oil Pressure Switch Cap (NLA)
-
1041141-89E00-000 • Steering Cable Attachment• Steering Cable Attachment
-
1143755-94J01-000 • Steering Bracket Attachment• Steering Bracket Attachment
-
1209204-01002-000 • Cotter Pin• Cotter Pin
-
1367331-94J10-000 • Side Cover Grommet• Side Cover Grommet
-
1467340-94J01-000 • Remocon Cable Holder
Clutch• Remocon Cable Holder
Clutch -
1567351-94J00-000 • Remocon Cable Holder
Throttle• Remocon Cable Holder
Throttle -
1667466-95200-000 • Cable Connector
Throttle• Cable Connector
Throttle -
1767467-93E01-000 • Cable Connector
Clutch• Cable Connector
Clutch -
1809108-08130-000 • Stud Bolt (8x20)• Stud Bolt (8x20)
-
1909111-06064-000 • Bolt (6x17)• Bolt (6x17)
-
2009116-06094-000 • Bolt (6x15)
Clutch• Bolt (6x15)
Clutch -
2109159-08059-000 • Nut• Nut
-
2209160-08059-000 • Washer (8.5x18x1.6)
Throttle• Washer (8.5x18x1.6)
Throttle -
2329162-93J10-000 • Lock Washer• Lock Washer
-
2409308-08013-000 • Grommet
Clutch• Grommet
Clutch -
2509407-14407-000 • Clamp (L:145)• Clamp (L:145)
-
2609407-11401-000 • Clamp (L:95)• Clamp (L:95)
-
27-101550-06167-000 • Bolt (6x16)
Throttle• Bolt (6x16)
Throttle -
27-201550-08167-000 • Bolt (8x16)
Throttle• Bolt (8x16)
Throttle -
2808322-01067-000 • Washer (6.5x13x1.0)• Washer (6.5x13x1.0)
-
2967356-94J00-000 • Cable Holder Cushion• Cable Holder Cushion
