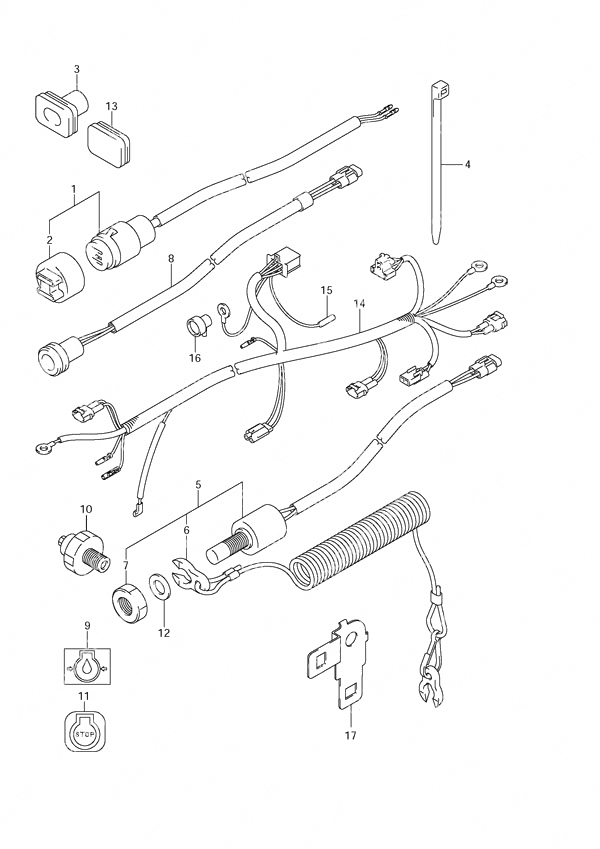

Fig. 34 - Electrical для Suzuki DF 15 - 2006 года выпуска
-
№АртикулНазвание
-
139601-95D00-000 Lighting Receptacle Assembly
Opt: w/Manual StarterLighting Receptacle Assembly
Opt: w/Manual Starter -
236634-93910-000 • Connector Cap
Opt: w/Manual Starter• Connector Cap
Opt: w/Manual Starter -
339603-94400-000 Receptacle Grommet (NLA)
Opt: w/Manual StarterReceptacle Grommet (NLA)
Opt: w/Manual Starter -
4-109407-14407-000 Clamp (L:145)
Opt: w/Manual StarterClamp (L:145)
Opt: w/Manual Starter -
4-209407-25402-000 Clamp (L:248)
Opt: w/Manual StarterClamp (L:248)
Opt: w/Manual Starter -
537830-94J04-000 Emergency Switch AssemblyEmergency Switch Assembly
-
637823-92E02-000 • Stop Switch Lanyard• Stop Switch Lanyard
-
737826-92E00-000 • Nut• Nut
-
836360-94J00-000 Oil Indicator LightOil Indicator Light
-
936367-93E00-019 Oil Level Label (NLA)Oil Level Label (NLA)
-
1037820-93E11-000 Oil Pressure SwitchOil Pressure Switch
-
1137835-91J00-YAY Stop LabelStop Label
-
1209160-12067-000 Washer (12.5x23x1.0)Washer (12.5x23x1.0)
-
1339669-94400-000 Lower Cover Plug
w/Manual StarterLower Cover Plug
w/Manual Starter -
14-136610-94J10-000 Wire Harness Assembly
w/Electric StarterWire Harness Assembly
w/Electric Starter -
14-236610-94J00-000 Wire Harness Assembly
w/Manual StarterWire Harness Assembly
w/Manual Starter -
1536615-96300-000 • Resin Terminal• Resin Terminal
-
1636618-43410-000 • Oil Pressure Switch Cap (NLA)• Oil Pressure Switch Cap (NLA)
