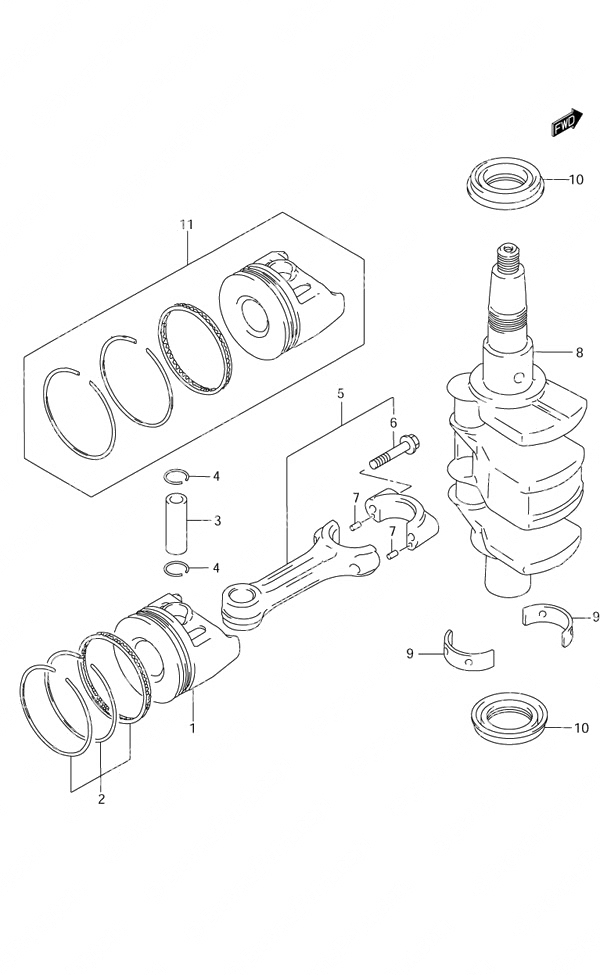

Fig. 3 - Crankshaft для Suzuki DF 9.9 - 2002 года выпуска`
-
№АртикулНазвание
-
112111-94J00-0B0 PistonPiston
-
212140-02C10-000 Piston Ring SetPiston Ring Set
-
312151-93E00-000 Piston PinPiston Pin
-
409381-14001-000 Piston Pin CirclipPiston Pin Circlip
-
5-112160-93E11-0A0 Connecting Rod Assy (Mark 1)Connecting Rod Assy (Mark 1)
-
5-212160-93E11-0B0 Connecting Rod Assy (Mark 2)Connecting Rod Assy (Mark 2)
-
612163-32C00-000 • Connecting Rod Bolt (NLA)• Connecting Rod Bolt (NLA)
-
704221-03059-000 • Pin• Pin
-
812220-93E12-000 Crankshaft Assembly (NLA)Crankshaft Assembly (NLA)
-
9-112229-33C00-0A0 Crankshaft Bearing (Green)Crankshaft Bearing (Green)
-
9-212229-33C00-0B0 Crankshaft Bearing (Black)Crankshaft Bearing (Black)
-
9-312229-33C00-0C0 Crankshaft Bearing (Brown)Crankshaft Bearing (Brown)
-
9-412229-33C00-0D0 Crankshaft Bearing (Yellow)
OptionalCrankshaft Bearing (Yellow)
Optional -
1009283-32048-000 Oil Seal (32x44x6.5)Oil Seal (32x44x6.5)
-
1112100-94J00-050 Piston & Ring Set (OS:0.50)
OptionalPiston & Ring Set (OS:0.50)
Optional
