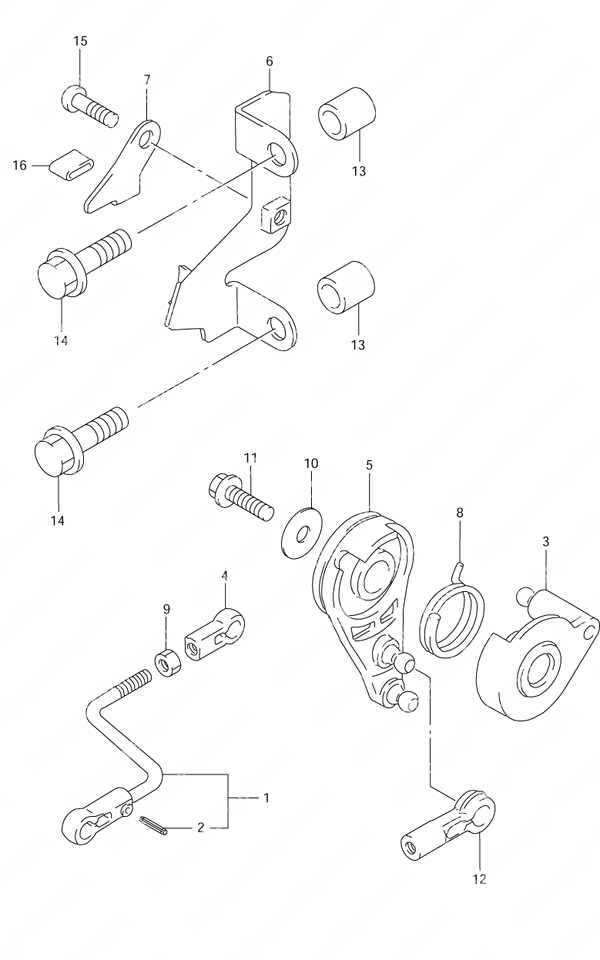

Fig. 14 - Throtle Control для Suzuki DF 9.9 - 2002 года выпуска
-
№АртикулНазвание
-
113510-93E01-000 Throttle Rod AssemblyThrottle Rod Assembly
-
209205-02006-000 • Spring Pin (2x12)• Spring Pin (2x12)
-
319121-93E00-000 Throttle Control LeverThrottle Control Lever
-
419131-95502-000 ConnectorConnector
-
519148-93E10-000 Throttle DrumThrottle Drum
-
667350-93E20-000 Throttle Cable HolderThrottle Cable Holder
-
767355-93E00-000 Holder Plate (NLA)Holder Plate (NLA)
-
819185-93E00-000 Throttle Lever SpringThrottle Lever Spring
-
909140-05005-000 NutNut
-
1009160-06084-000 Washer (6.5x18x1.6)Washer (6.5x18x1.6)
-
1101550-06167-000 Bolt (6x16)Bolt (6x16)
-
1267466-95200-000 Cable ConnectorCable Connector
-
1309180-08210-000 Spacer (NLA)
w/Manual Starter
Tiller Handle HolderSpacer (NLA)
w/Manual Starter
Tiller Handle Holder -
1401550-08257-000 Bolt
w/Manual Starter
Tiller Handle HolderBolt
w/Manual Starter
Tiller Handle Holder -
1502112-06107-000 Screw (6x10)Screw (6x10)
-
1609329-01007-000 CushionCushion
