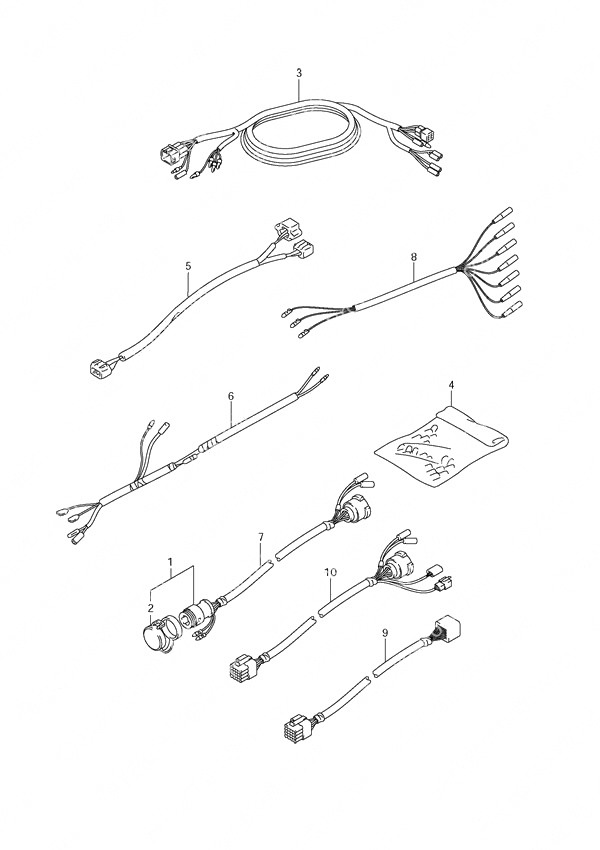

Fig. 63 - Opt: Harness для Suzuki DF 60 - 2002 года выпуска`
-
№АртикулНазвание
-
1-136620-87D20-000 Wiring Harness Extension (NLA)
L:5000Wiring Harness Extension (NLA)
L:5000 -
1-236620-95302-000 Wiring Harness Extension (NLA)
L:2000Wiring Harness Extension (NLA)
L:2000 -
236631-94300-000 • Cap• Cap
-
3-136660-94400-000 Meter Extension Harness (NLA)
L:6500Meter Extension Harness (NLA)
L:6500 -
3-236660-94480-000 Trim Wire Harness (NLA)
L:2000Trim Wire Harness (NLA)
L:2000 -
436990-87D00-000 Terminal & Sleeve SetTerminal & Sleeve Set
-
536820-95560-000 Neutral Switch Lead (NLA)
L:700Neutral Switch Lead (NLA)
L:700 -
634109-94500-000 Extension Lead (NLA)
L:1600Extension Lead (NLA)
L:1600 -
736620-92E00-000 21' Main Wire Harness (NLA)21' Main Wire Harness (NLA)
-
836630-92E00-000 Instrument Wire Assembly
w/Tiller HandleInstrument Wire Assembly
w/Tiller Handle
