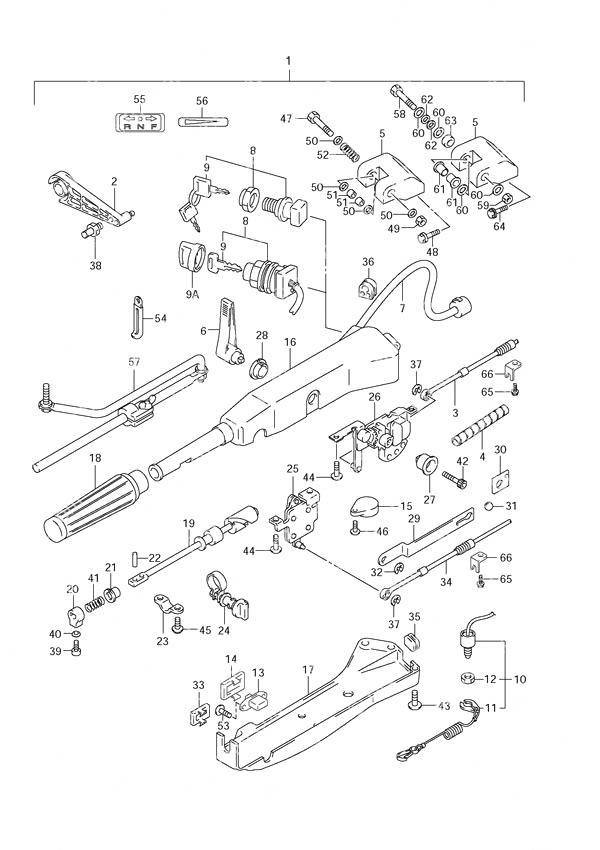

Fig. 67 - Opt: Tiller Handle для Suzuki DF 60 - 2002 года выпуска
-
№АртикулНазвание
-
163002-99E06-0EP DF60/70 Tiller Handle (NLA)DF60/70 Tiller Handle (NLA)
-
219122-99E01-000 • Throttle Interlink Lever• Throttle Interlink Lever
-
323230-99E00-000 • Shift Cable• Shift Cable
-
433833-91J00-000 Tube (6x8x250)
L:250->100Tube (6x8x250)
L:250->100 -
543761-87J01-0EP • Tiller Handle Bracket (NLA)• Tiller Handle Bracket (NLA)
-
621111-87J10-0EP • Clutch Lever• Clutch Lever
-
736620-87J00-000 • Handle Wiring Harness• Handle Wiring Harness
-
837110-87J21-000 • Ignition Switch Assembly• Ignition Switch Assembly
-
9-137141-92E00-000 •• (11) Ignition Key•• (11) Ignition Key
-
9-237141-92E10-000 •• (12) Ignition Key•• (12) Ignition Key
-
9-337141-92E20-000 •• (13) Ignition Key•• (13) Ignition Key
-
9-437141-92E30-000 •• (14) Ignition Key•• (14) Ignition Key
-
9-537141-92E40-000 •• (15) Ignition Key•• (15) Ignition Key
-
9-637141-92E50-000 •• (16) Ignition Key•• (16) Ignition Key
-
9-737141-92E60-000 •• (17) Ignition Key•• (17) Ignition Key
-
9-837141-92E70-000 •• (18) Ignition Key•• (18) Ignition Key
-
9-937141-92E80-000 •• (19) Ignition Key•• (19) Ignition Key
-
9-1037141-92E90-000 •• (20) Ignition Key•• (20) Ignition Key
-
1037820-87J03-000 • Emergency Switch Assembly• Emergency Switch Assembly
-
1137823-92E02-000 •• Stop Switch Lanyard•• Stop Switch Lanyard
-
1237826-92E00-000 •• Nut•• Nut
-
1337860-94610-000 • Trim Switch Assembly• Trim Switch Assembly
-
1437869-95590-000 • Trim Switch Cap• Trim Switch Cap
-
1538500-92X50-000 • Warning Buzzer• Warning Buzzer
-
1663109-87J00-0EP • Tiller Handle Housing
Requires Ref# 65 & 66• Tiller Handle Housing
Requires Ref# 65 & 66 -
1763120-87J01-000 • Under Cover KIt• Under Cover KIt
-
1863210-93E30-000 • Handle Grip• Handle Grip
-
1963221-87J00-000 • Handle Rod• Handle Rod
-
2063223-92D00-000 • Handle Rod Stopper• Handle Rod Stopper
-
2163225-93200-000 • Handle Rod Bushing• Handle Rod Bushing
-
2263227-93200-000 • Handle Rod Pin• Handle Rod Pin
-
2363235-87J00-000 • Throttle Shaft Plate (NLA)• Throttle Shaft Plate (NLA)
-
2463240-87J00-000 • Throttle Adjuster (NLA)• Throttle Adjuster (NLA)
-
2563250-87J01-000 • Throttle Arm Assembly• Throttle Arm Assembly
-
2663260-87J02-000 • Shift Gear Assembly• Shift Gear Assembly
-
2763261-87J00-000 • Shift Gear Bushing• Shift Gear Bushing
-
2863262-87J00-000 • Shift Lever Bushing• Shift Lever Bushing
-
2963271-87J00-000 • Lock Plate (NLA)• Lock Plate (NLA)
-
3063272-87J00-000 • Ball Guide Plate• Ball Guide Plate
-
3163273-87J00-000 • Ball (NLA)• Ball (NLA)
-
3263274-87J00-000 • E Ring (NLA)• E Ring (NLA)
-
3367263-99E00-000 • Trim Switch Cover (NLA)• Trim Switch Cover (NLA)
-
3463610-99E00-000 • Throttle Cable Assembly• Throttle Cable Assembly
-
3563625-99E00-000 • Throttle Cable Grommet (NLA)• Throttle Cable Grommet (NLA)
-
3663626-99E01-000 • Wire Harness Grommet (NLA)• Wire Harness Grommet (NLA)
-
3767292-87J00-000 • E Ring• E Ring
-
3867473-89J00-000 • Connector Pin• Connector Pin
-
3909126-06015-000 • Screw (6x23)• Screw (6x23)
-
4009163-06001-000 • Lock Washer (6.4x12x0.5)• Lock Washer (6.4x12x0.5)
-
4109440-12027-000 • Spring• Spring
-
4209106-08099-000 • Bolt (8x50) (NLA)• Bolt (8x50) (NLA)
-
4309125-05047-000 • Screw (5x14)• Screw (5x14)
-
4409125-06069-000 • Screw (6x12)• Screw (6x12)
-
4509136-05008-000 • Screw (5x12)• Screw (5x12)
-
4602142-05207-000 • Screw• Screw
-
4709100-10264-000 • Bolt (10x80)• Bolt (10x80)
-
4809116-10176-000 • Bolt (10x44)• Bolt (10x44)
-
4909159-10050-000 • Nut• Nut
-
5009160-10097-000 • Washer (10.5x22x2.5)• Washer (10.5x22x2.5)
-
5109306-10009-000 • Handle Bushing• Handle Bushing
-
5209440-22008-000 • Spring• Spring
-
5309139-02003-000 • Screw (2x6)• Screw (2x6)
-
5429404-93J30-000 • Clamp (NLA)• Clamp (NLA)
-
5521131-94J00-YAY • Clutch Shift Mark• Clutch Shift Mark
-
5663215-93110-000 • Handle Grip Mark• Handle Grip Mark
-
5743770-99E03-000 • Steering Tensioner Assembly• Steering Tensioner Assembly
-
6563611-87J00-000 • Clamp Bracket Bolt• Clamp Bracket Bolt
-
6663612-87J00-000 • Clamp Bracket• Clamp Bracket
