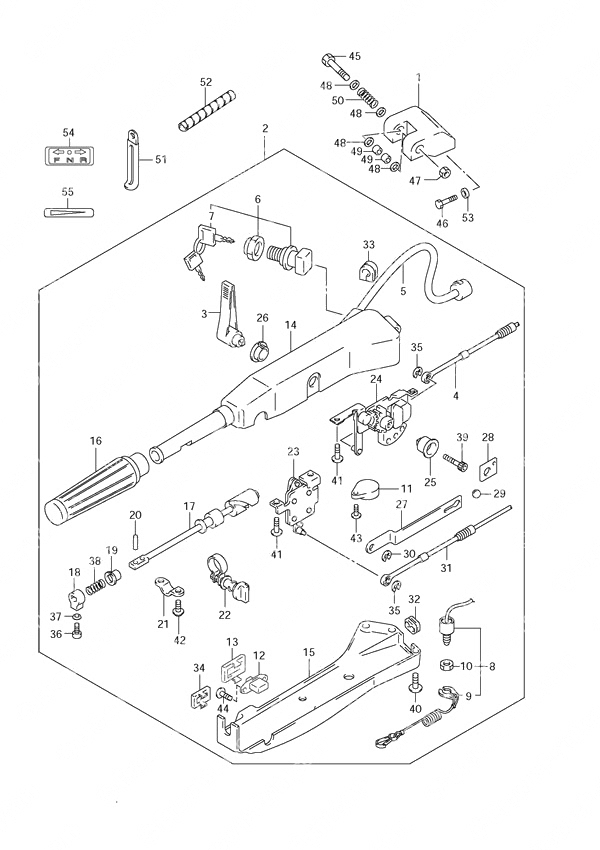

Fig. 49 - Tiller Handle для Suzuki DF 60 - 2002 года выпуска`
-
№АртикулНазвание
-
143761-87J01-0EP Tiller Handle Bracket (NLA)Tiller Handle Bracket (NLA)
-
263110-99E06-0EP Tiller Handle AssemblyTiller Handle Assembly
-
321111-87J10-0EP • Clutch Lever• Clutch Lever
-
423230-99E00-000 • Shift Cable• Shift Cable
-
536620-99E00-000 • Handle Wire (NLA)• Handle Wire (NLA)
-
637110-87J21-000 • Ignition Switch Assembly• Ignition Switch Assembly
-
7-137141-92E00-000 •• (11) Ignition Key•• (11) Ignition Key
-
7-237141-92E10-000 •• (12) Ignition Key•• (12) Ignition Key
-
7-337141-92E20-000 •• (13) Ignition Key•• (13) Ignition Key
-
7-437141-92E30-000 •• (14) Ignition Key•• (14) Ignition Key
-
7-537141-92E40-000 •• (15) Ignition Key•• (15) Ignition Key
-
7-637141-92E50-000 •• (16) Ignition Key•• (16) Ignition Key
-
7-737141-92E60-000 •• (17) Ignition Key•• (17) Ignition Key
-
7-837141-92E70-000 •• (18) Ignition Key•• (18) Ignition Key
-
7-937141-92E80-000 •• (19) Ignition Key•• (19) Ignition Key
-
7-1037141-92E90-000 •• (20) Ignition Key•• (20) Ignition Key
-
837820-87J03-000 • Emergency Switch Assembly• Emergency Switch Assembly
-
937823-92E02-000 •• Stop Switch Lanyard•• Stop Switch Lanyard
-
1037826-92E00-000 •• Nut•• Nut
-
1138500-92X50-000 • Warning Buzzer• Warning Buzzer
-
1237860-94610-000 • Trim Switch Assembly• Trim Switch Assembly
-
1337869-95590-000 • Trim Switch Cap• Trim Switch Cap
-
1463109-87J00-0EP • Tiller Handle Housing• Tiller Handle Housing
-
1563120-87J01-000 • Under Cover KIt• Under Cover KIt
-
1663210-93E30-000 • Handle Grip• Handle Grip
-
1763221-87J00-000 • Handle Rod• Handle Rod
-
1863223-92D00-000 • Handle Rod Stopper• Handle Rod Stopper
-
1963225-93200-000 • Handle Rod Bushing• Handle Rod Bushing
-
2063227-93200-000 • Handle Rod Pin• Handle Rod Pin
-
2163235-87J00-000 • Throttle Shaft Plate (NLA)• Throttle Shaft Plate (NLA)
-
2263240-87J00-000 • Throttle Adjuster (NLA)• Throttle Adjuster (NLA)
-
2363250-87J01-000 • Throttle Arm Assembly• Throttle Arm Assembly
-
2463260-87J02-000 • Shift Gear Assembly• Shift Gear Assembly
-
2563261-87J00-000 • Shift Gear Bushing• Shift Gear Bushing
-
2663262-87J00-000 • Shift Lever Bushing• Shift Lever Bushing
-
2763271-87J00-000 • Lock Plate (NLA)• Lock Plate (NLA)
-
2863272-87J00-000 • Ball Guide Plate• Ball Guide Plate
-
2963273-87J00-000 • Ball (NLA)• Ball (NLA)
-
3063274-87J00-000 • E Ring (NLA)• E Ring (NLA)
-
3163610-99E00-000 • Throttle Cable Assembly• Throttle Cable Assembly
-
3263625-99E00-000 • Throttle Cable Grommet (NLA)• Throttle Cable Grommet (NLA)
-
3363626-99E01-000 • Wire Harness Grommet (NLA)• Wire Harness Grommet (NLA)
-
3467263-99E00-000 • Trim Switch Cover (NLA)• Trim Switch Cover (NLA)
-
3567292-87J00-000 • E Ring• E Ring
-
3609126-06015-000 • Screw (6x23)• Screw (6x23)
-
3709163-06001-000 • Lock Washer (6.4x12x0.5)• Lock Washer (6.4x12x0.5)
-
3809440-12027-000 • Spring• Spring
-
3909106-08099-000 • Bolt (8x50) (NLA)• Bolt (8x50) (NLA)
-
4009125-05047-000 • Screw (5x14)• Screw (5x14)
-
4109125-06069-000 • Screw (6x12)• Screw (6x12)
-
4209136-05008-000 • Screw (5x12)• Screw (5x12)
-
4302142-05207-000 • Screw• Screw
-
4409139-02003-000 • Screw (2x6)• Screw (2x6)
-
4509100-10264-000 Bolt (10x80)Bolt (10x80)
-
4609100-10155-000 Bolt (10x50)Bolt (10x50)
-
4709159-10050-000 NutNut
-
4809160-10097-000 Washer (10.5x22x2.5)Washer (10.5x22x2.5)
-
4909306-10009-000 Handle BushingHandle Bushing
-
5009440-22008-000 SpringSpring
-
5109404-10205-000 Clamp (NLA)Clamp (NLA)
-
5233833-91J00-000 Tube (6x8x250)Tube (6x8x250)
-
5309162-10005-000 Lock WasherLock Washer
-
5421131-94J00-YAY Clutch Shift MarkClutch Shift Mark
-
5563215-93110-000 Handle Grip MarkHandle Grip Mark
