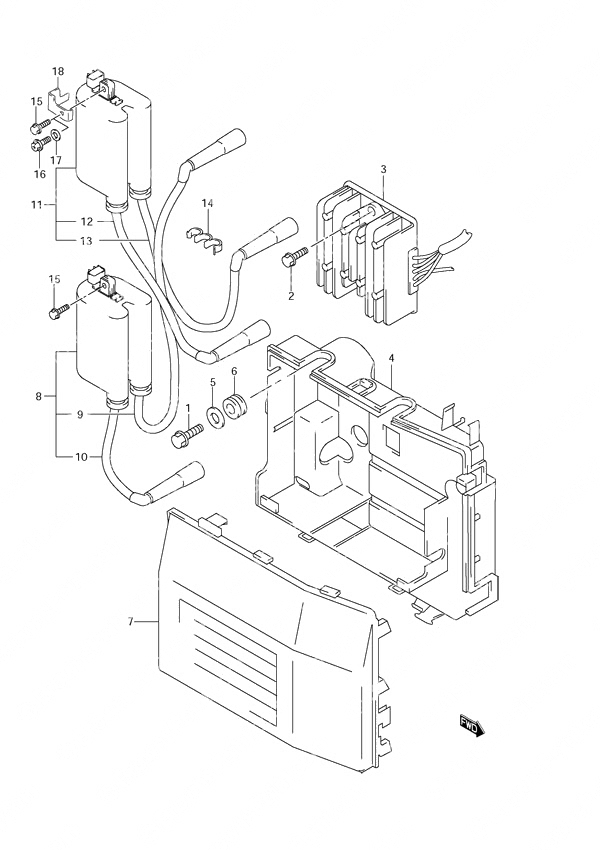

Fig. 31 - Ignition Coil для Suzuki DF 60 - 2002 года выпуска`
-
№АртикулНазвание
-
101550-06127-000 Bolt (6x12)Bolt (6x12)
-
201550-06307-000 Bolt (6x30)Bolt (6x30)
-
332800-92E20-000 Rectifier & RegulatorRectifier & Regulator
-
432890-99E12-000 Electric Parts Holder (NLA)Electric Parts Holder (NLA)
-
509160-06054-000 Washer (6.5x22.1.6)Washer (6.5x22.1.6)
-
609320-12011-000 CushionCushion
-
732891-99E00-000 Electric Parts Holder CoverElectric Parts Holder Cover
-
833410-99E00-000 Ignition Coil AssemblyIgnition Coil Assembly
-
933710-99E00-000 • High Tension Cord
No. 1
w/Spark Plug Cap• High Tension Cord
No. 1
w/Spark Plug Cap -
1033740-99E00-000 • High Tension Cord
No. 4
w/Spark Plug Cap• High Tension Cord
No. 4
w/Spark Plug Cap -
1133420-99E00-000 Ignition Coil AssemblyIgnition Coil Assembly
-
1233720-99E00-000 • High Tension Cord
No. 2
w/Spark Plug Cap• High Tension Cord
No. 2
w/Spark Plug Cap -
1333730-99E00-000 • High Tension Cord
No. 3
w/Spark Plug Cap• High Tension Cord
No. 3
w/Spark Plug Cap -
1409408-00035-000 Clamp (NLA)Clamp (NLA)
-
1501550-06207-000 Bolt (6x20)Bolt (6x20)
-
1833415-99E00-000 Ignition Coil Protector (NLA)Ignition Coil Protector (NLA)
