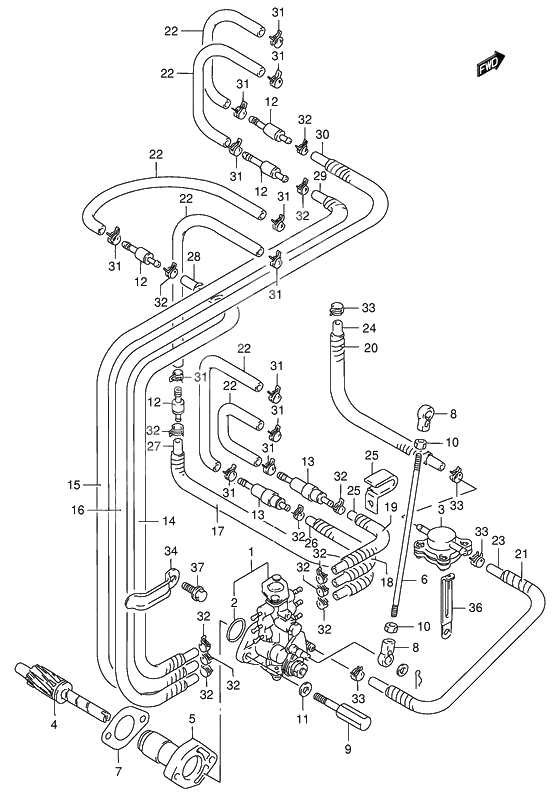

Oil pump для Suzuki V6Y(E1) Y - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    16100-92E11-000 Насос масляный
    Насос масляный
  • 2
    16198-87D00-000 Кольцо масляного насоса
    Кольцо масляного насоса
  • 3
    16250-94710-000 Сенсор масла
    Sensor, oil;
    Сенсор масла
    Sensor, oil;
  • 4
    16331-92E00-000 Шестерня маслянного насоса
    Шестерня маслянного насоса
  • 5
    16340-87D00-000 Стопор масляного насоса
    Retainer, oil pump
    Стопор масляного насоса
    Retainer, oil pump
  • 6
    16411-94400-000 Штанга масляного насоса
    Rod, throttle leverRod, oil pump control;
    Штанга масляного насоса
    Rod, throttle leverRod, oil pump control;
  • 7
    16731-95520-000 Прокладка маслянного насоса
    Gasket, oil pump retainerGasket, retainer;
    Прокладка маслянного насоса
    Gasket, oil pump retainerGasket, retainer;
  • 8
    19131-95502-000 Коннектор
    Connector, oil pump no.2Connector, oil pump;
    Коннектор
    Connector, oil pump no.2Connector, oil pump;
  • 9
    09119-06067-000 Bolt
    Bolt (6x30)Bolt, oil pump (6x30);
    Bolt
    Bolt (6x30)Bolt, oil pump (6x30);
  • 10
    09140-05005-000 Гайка
    Nut, oil pump control;
    Гайка
    Nut, oil pump control;
  • 11
    08322-01067-000 Шайба
    Washer, oil pump;
    Шайба
    Washer, oil pump;
  • 12
    16710-92E01-000 Клапан
    Valve, check (single);
    Клапан
    Valve, check (single);
  • 13
    16710-94641-000 Клапан
    Valve, check (double);
    Клапан
    Valve, check (double);
  • 14
    16911-92E20-000 Протектор
    Protector, oil hose (9x11x540); L:540->10
    Протектор
    Protector, oil hose (9x11x540); L:540->10
  • 15
    16911-92E20-000 Протектор
    Protector, oil hose (9x11x540); L:540->70
    Протектор
    Protector, oil hose (9x11x540); L:540->70
  • 16
    16911-92E20-000 Протектор
    Protector, oil hose (9x11x540); L:540
    Протектор
    Protector, oil hose (9x11x540); L:540
  • 17
    16911-92E20-000 Протектор
    Protector, oil hose (9x11x540); L:540->40
    Протектор
    Protector, oil hose (9x11x540); L:540->40
  • 18
    16911-92E20-000 Протектор
    Protector, oil hose (9x11x540); L:540->80
    Протектор
    Protector, oil hose (9x11x540); L:540->80
  • 19
    16911-92E20-000 Протектор
    Protector, oil hose (9x11x540); L:540->30
    Протектор
    Protector, oil hose (9x11x540); L:540->30
  • 20
    16911-92E20-000 Протектор
    Protector, oil hose (9x11x540); L:540->60
    Протектор
    Protector, oil hose (9x11x540); L:540->60
  • 21
    16911-92E20-000 Протектор
    Protector, oil hose (9x11x540); L:540->10
    Протектор
    Protector, oil hose (9x11x540); L:540->10
  • 22
    09351-50803-600 Шланг 5X8X600
    Hose, oilHose, oil (5.0x8.0x600); Valve to nozzle, l:600->00
    Шланг 5X8X600
    Hose, oilHose, oil (5.0x8.0x600); Valve to nozzle, l:600->00
  • 22
    09351-50803-00A Шланг 5X8X600
    Шланг 5X8X600
  • 22
    09351-50803-00B Шланг 5X8X600
    Шланг 5X8X600
  • 23
    09352-50903-600 Шланг 5X9X600
    Hose, oil (5.0x9.0x600); Sensor to pump,l:600->30
    Шланг 5X9X600
    Hose, oil (5.0x9.0x600); Sensor to pump,l:600->30
  • 24
    09352-50903-600 Шланг 5X9X600
    Hose, oil (5.0x9.0x600); Tank to sensor,l:600->80
    Шланг 5X9X600
    Hose, oil (5.0x9.0x600); Tank to sensor,l:600->80
  • 25
    09355-25705-600 Hose
    Hose, out no.4 (2.5x7x300)Hose, oil out (2.5x7.0x600); #6,l:600->60
    Hose
    Hose, out no.4 (2.5x7x300)Hose, oil out (2.5x7.0x600); #6,l:600->60
  • 26
    09355-25705-600 Hose
    Hose, out no.4 (2.5x7x300)Hose, oil out (2.5x7.0x600); #5,l:600->90
    Hose
    Hose, out no.4 (2.5x7x300)Hose, oil out (2.5x7.0x600); #5,l:600->90
  • 27
    09355-25705-600 Hose
    Hose, out no.4 (2.5x7x300)Hose, oil out (2.5x7.0x600); #4,l:600->50
    Hose
    Hose, out no.4 (2.5x7x300)Hose, oil out (2.5x7.0x600); #4,l:600->50
  • 28
    09355-25705-600 Hose
    Hose, out no.4 (2.5x7x300)Hose, oil out (2.5x7.0x600); #3,l:600->20
    Hose
    Hose, out no.4 (2.5x7x300)Hose, oil out (2.5x7.0x600); #3,l:600->20
  • 29
    09355-25705-600 Hose
    Hose, out no.4 (2.5x7x300)Hose, oil out (2.5x7.0x600); #2,l:600->90
    Hose
    Hose, out no.4 (2.5x7x300)Hose, oil out (2.5x7.0x600); #2,l:600->90
  • 30
    09355-25705-600 Hose
    Hose, out no.4 (2.5x7x300)Hose, oil out (2.5x7.0x600); #1,l:600->60
    Hose
    Hose, out no.4 (2.5x7x300)Hose, oil out (2.5x7.0x600); #1,l:600->60
  • 31
    09401-06405-000 Хомут
    Хомут
  • 32
    09401-08409-000 Clip
    Clip, oil pump;
    Clip
    Clip, oil pump;
  • 33
    09401-08411-000 Clip
    Clip, oil pump hose;
    Clip
    Clip, oil pump hose;
  • 34
    09403-09323-000 Струбцина масляного шланга
    Струбцина масляного шланга
  • 35
    09403-11309-000 Clamp
    Clamp, oil hose
    Clamp
    Clamp, oil hose
  • 36
    09404-06432-000 Clamp (l:80)
    Clamp (l:80)Clamp, oil hose (6x65);
    Clamp (l:80)
    Clamp (l:80)Clamp, oil hose (6x65);
  • 36
    09404-06434-000 Clamp
    Clamp, oil hose (6x95);
    Clamp
    Clamp, oil hose (6x95);
  • 37
    01550-06127-000 Bolt
    Bolt, rectBolt, oil hose clamp;
    Bolt
    Bolt, rectBolt, oil hose clamp;
